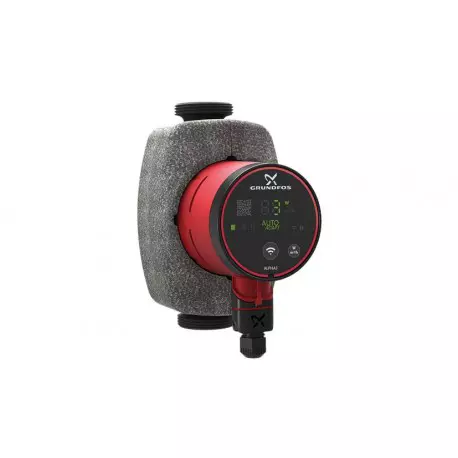

Circulation pump ALPHA3 Connect 25-40 180

Rotor circulator ALPHA 3 Connect

High efficiency canned-rotor circulator, designed for circulating liquids in heating systems. The ALPHA3 has built-in Bluetooth radio and is completely controlled by a smart device via Grundfos GO Remote App. It gives step by step assistance to pump configuration, maintenance and commissioning.
The ALPHA3 communicates directly with the Grundfos GO Balance App, which enables the installers to perform fast and easy hydronic balancing.

The AUTOADAPT function

The AUTOADAPT function which is integrated in the radiator and underfloor mode continuously adjusts the pump performance to the actual heat demand, i.e. the size of the system and the changing heat demand during the year.

Features:

Radiator mode with AUTOADAPT the simple choice for two-string radiator heating systems
Underfloor mode with AUTOADAPT the simple choice for underfloor heating systems
Combined radiator and underfloor mode for systems with a combination of heating systems
In scheduling and summer mode a realtime clock makes it possible to select when the pump should operate and not to save energy
Simple user interface - the pump is completely operated from the Grundfos GO Remote App
Alarm and warning log with assistance via Grundfos Go Remote
No external motor protection required reducing installation time
High-torque start improves startup under harsh conditions
Dry-run protection during startup and normal operation
Maintenance free due to canned-rotor design and use of robust components
ALPHA plug makes electrical installation quick and easy
Insulating shells are supplied with pumps to minimize heat loss in heating systems

In addition, the pump also features three control modes with incremental set point adjustment which makes it possible to adjust pump setting to a given duty point:

proportional-pressure control
constant-pressure control
constant-curve mode

The display shows the actual power consumption in Watts or actual flow in m3/h. LEDs indicate the actual operating status.

Specifications

Product name: ALPHA3 25-40 180
Product No: 99371956
EAN number: 5713828026606

Technical

Head max: 40 dm
TF class: 110
Approvals on nameplate: VDE,CE,EAC
Model: B

Materials

Pump housing: Iron
Pump housing: EN-GJL-150
Pump housing: ASTM A48-150B
Impeller: PES 30%GF

Installation

Range of ambient temperature: 0 .. 40 °C
Maximum operating pressure: 10 bar
Pipe connection: G 1 1/2
Pressure rating: PN 10
Port-to-port length: 180 mm

Liquid

Pumped liquid: Water
Liquid temperature range: 2 .. 110 °C
Liquid temperature during operation: 60 °C
Density: 983.2 kg/m3

Electrical data

Power input - P1: 3 .. 18 W
Mains frequency: 50 Hz
Rated voltage: 1 x 230 V
Maximum current consumption: 0.04 .. 0.18 A
Enclosure class (IEC 34-5): X4D
Insulation class (IEC 85): F
Motor protec: BRAK
Thermal protec: ELEC

Controls

automatic reduced night-time duty included
Pos term box: 6H

Others

Energy (EEI): 0.15
Net weight: 2.35 kg
Gross weight: 2.47 kg

GO Balance Grundfos application

Go Balance Grunfos application can be download from AppStore for iPhone or from GoogleStore for Android. The application connects to the ALPHA Reader Communication Module via Bluetooth and consists in going through four simple steps.

Data sheet

Height [ mm ]	180
Width [ mm ]	108
Depth [ mm ]	140
Thread type	External thread (GZ)
Outlet and inlet supply size [ inch ]	⁶⁄₄''
Steering	via Android, via iPhone
Insulation	YES
Mains voltage [ V ]	230
Warranty	5 years
