Horizontal hydraulic separator up to 105 kW with insulation

Horizontal hydraulic separator up to 105 kW with insulation View larger

144,59 USD

Payment and delivery

Transport Costs: Individual calculation
(After placing your order we will send you a non-binding offer containing delivery costs.)

Payment: Bank transfer

Total Rating Total Rating:

0
0/5 - 0 reviews

View ratings
0 1 2 3 40
0 1 2 3 00
0 1 2 0 10
0 1 0 1 20
0 0 1 2 30

 Add Review View Reviews View Reviews

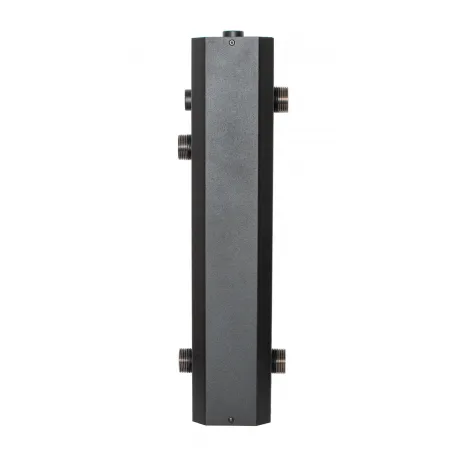

Hydraulic coupling is designed for central heating systems up to 105kW. The device is designed to separate the primary circuit from the heating circuit, eliminate the need to balance boiler and heating circuits, and maintain independent flows in boiler and heating circuits. The coupling is placed in insulation made of EPS and sealed with a powder coated steel sheet.

Parametr / ParameterWarto艣膰
Value
Przep艂yw / Flow ratio4,5 m3/h
D艂ugo艣膰 rozdzielacza / Distributor length500 mm
Pod艂膮czenie: strona instalacji / Connection: on the installation sideGZ 5/4" / 5/4" M
Pod艂膮czenie: strona kot艂owa / Connection: on the boiler sideGW 5/4" / 5/4" F
Pod艂膮czenie: przy艂膮cze boczne / Connection: on the lateral sideGW 3x1/2" / 3x1/2" F
Rozstaw osi: strona instalacyjna / Spacing on the installation side280 mm
Rozstaw osi: strona kot艂owa / Spacing in the boiler side360 mm
Maksymalne ci艣nienie / Maximum pressure6 bar
Maksymalna temperatura zasilania / Maximum temperature of the supply110掳C
Izolacja rozdzielacza / Insulation of the distributorEPS grubo艣膰 30 mm;/ EPS thickness 30mm
