CONSTRUCTION OF WALL-MOUNTED RADIATOR REGULLUS

REGULLUS and Sollarius radiators consist of two main parts: the water system and the heat dissipation segment. Radiator water system is a heat exchanger made of copper (a package of horizontally lying copper pipes DN15, connected with vertical collecting copper pipes DN18, sometimes DN 20 depending on radiator size). The radiator heat dissipation system is a closely combined with horizontal copper pipes, aluminium vertical slats (thin aluminium radiator plates). The slats create a dense aluminium ribbing consisting of a large number of air convection and radiation channels with a undulated radiator wall surface (the front and rear of the radiator). Radiator slats receive the heat through hot water from the surface of the copper pipes and transmits them by air across the room. Elements of the outer casing of the central heating radiator are also made of aluminium. Central heating installation water flowing through the radiator is in contact only with copper pipes which increases the resistance of the heat exchanger to corrosion and rust and enhances their vitality (25 years for individuals, 10 years for companies and hard wet conditions, for a particular purpose version of the radiator for a pool, carwash etc. ask us for a special version of heaters with water resistance painting).

REGULLUS heating radiator upper cover has a rounded top (while SOLLARIUS type S has simple and sharp endings). This is important to the aesthetic and practical parameters, because thermal parameters of REGULLUS heater (type R) have the characteristics of an active radiator (That is, quick room warm up, but also to quick heating cancellation after the end of central heating combustion), while radiators for the Sollarius (S type) series have a greater inertia, heat transfer occurs more slowly wit delay, but after the cancellation of heating, the radiator will be still warm for a while. The practical application of the heating radiator types can be used in eg. in a living room, where rapid heating is a priority orientated for comfort (REGULLUS - type R). In the bathroom or bedroom, a wall-mounted radiator with greater inertia SOLLARIUS (type S), which will be warm after the completion of the combustion process has more sense (eg. the need to dry things).

REGULLUS WALL-MOUNTED RADIATOR EXAMPLE

REGULUS active wall-mounted aluminum radiator with a rounded top - cross section view (of type RD radiator)

Active heating radiator, aluminum-copper REGULLUS with a rounded top with bottom connection - cross-section view (of type RD)

HEATING COMFORT OF WALL-MOUNTED REGULLUS-system RADIATOR

Small water capacity and lightness determine the high dynamic and performance, allowing easy temperature control of REGULLUS central heating radiator. Quite short in time and with low heating costs of initial expenditure, will the heat radiator reach his full heating performance. Achieving the desired temperature setpoint and at the end of the heating process, the radiator will relatively quick stop heating. As a result, the heating is economical and efficient, not to mention the comfort. It must be remembered that the precision of heating has a significant impact on energy efficiency.

CENTRAL HEATING RADIATOR HEAT DISTRIBUTION

Heating the living space is done through intensive, wide heat radiation and by convection. Mixed radiator heating process begins from the bottom front air intake from the surface into the convection channels, which flowing upwards along the interior copper tubes and aluminium slats get heated up. The heated air exits the upper end of the radiator upper perforated housing outlet. With its dual mechanism of emission of hot air, the heat evenly spreads out across the room.

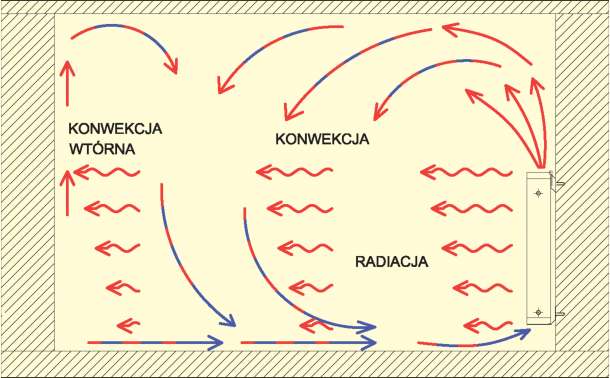

HEAT DISTRIBUTION OF REGULUS ALUMINUM WALL-MOUNTED CENTRAL HEATING RADIATOR

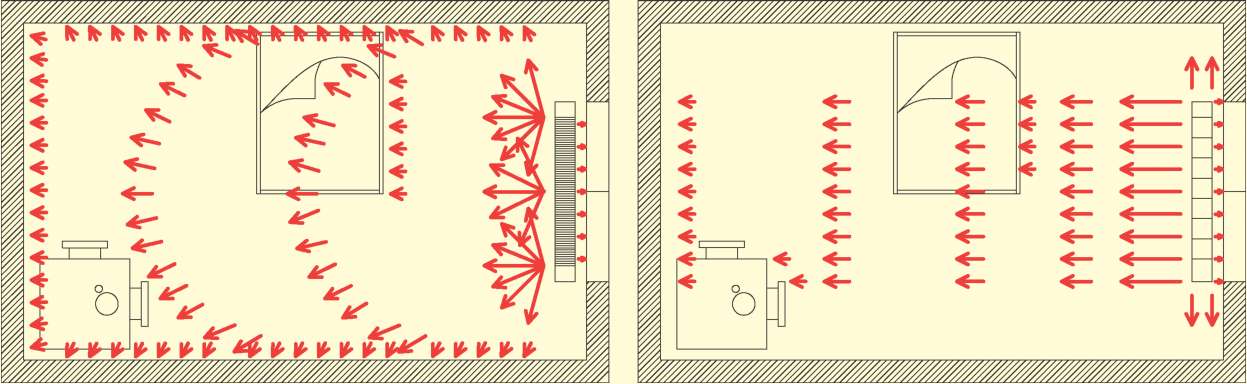

REGULLUS MULTIDIRECTIONAL CENTRAL HEATING RADIATOR VS NORMAL SINGLE DIRECTION HEATING RADIATOR

HOW TO PROPER CHOOSE A CENTRAL HEATING RADIATOR FOR HOME OR OFFICE

After reading the following text one should decide of the type of the heating radiator and its parameters. The key parameter when selecting a heater is its thermal power, adjust it depending on the room conditions and many other factors. The more detailed the parameters are, the more accurate calculation will be done for the heat demand, upon the customer will choose his radiator type and later achieve the comfort of using the radiator.

First, height must be chosen (available 13) and a width (9 possible) of the radiator depending on the installation site. Which gives a theoretical range of 117 combinations of the sizes of the radiators which will work in most of the heated rooms. In some design combination, if the specific configuration of the size for technological reasons is not possible to obtain, then select the most similar to the desired (after changing parameters in the case, when a combination is not possible, a special message is given, then try changing the size).

Full number of possible combinations of wall-mounted radiators of REGULLUS series RD can be listed here: REGULUS (type RD) aluminium active radiators.

The second step is to choose a color from theRAL K7 colour palletewithout additional costs (up to 169 radiator colorsto choose from!). The default used colour is theRAL 9003(white).

Full color palette RAL K7 for Wall mounted REGULLUS heating radiator in base price to choose from
