> >>>IP66 inverter connection box with overvoltage limiter DC 1000V type 1 + 2, 3x PV string, 1x MPPT, 6x protection trans. 15A

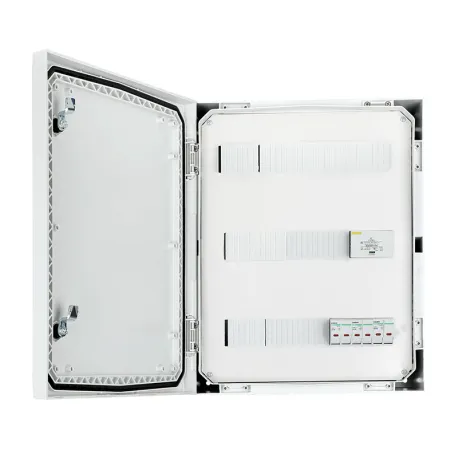

IP66 inverter connection box with overvoltage limiter DC 1000V type 1 + 2, 3x PV string, 1x MPPT, 6x protection trans. 15A

IP66 inverter connection box with overvoltage limiter DC 1000V type 1 + 2, 3x PV string, 1x MPPT, 6x protection trans. 15A View larger

5905515602198

SHC-1240 DC

Manufacturer: PROSAT
PROSAT

680,42 USD

Payment and delivery

Transport Costs: Individual calculation
(After placing your order we will send you a non-binding offer containing delivery costs.)

Payment methods for the goods:

Bank transfer – eligible for a 2% discount for orders from Poland (others without discount)
P24 – operator’s payment gateway, no discount for orders from Poland, others +2%

Add to wishlist

Total Rating Total Rating:

0
0/5 - 0 reviews

View ratings
0 1 2 3 40
0 1 2 3 00
0 1 2 0 10
0 1 0 1 20
0 0 1 2 30

 Add Review View Reviews View Reviews

Data sheet

Warranty2
Number of DC surge arresters1
DC surge arrester type1+2
Width [mm]400.000
Height [mm]210.000
Length [mm]500.000
Weight [kg]8.200
IP protection class66
Type of connection switchboardDC
Housing sizeIP66 FIBOX
Rated insulation voltage of the housing1000 V AC, 1500 V DC
Rated current of the gPV fuse-link - protection 115
Number of PV chains3
Rated DC arrester voltage1000
Whether a DC surge arrester is used1
DC surge arrester usedCitel
Applied switchgear connection (DC side)1
Number of PV chain inputs3
Number of PV chain outputs1
Number of overcurrent protections (fuse links) - protection 16
