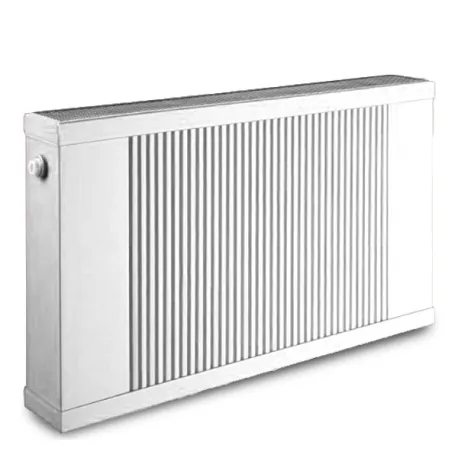

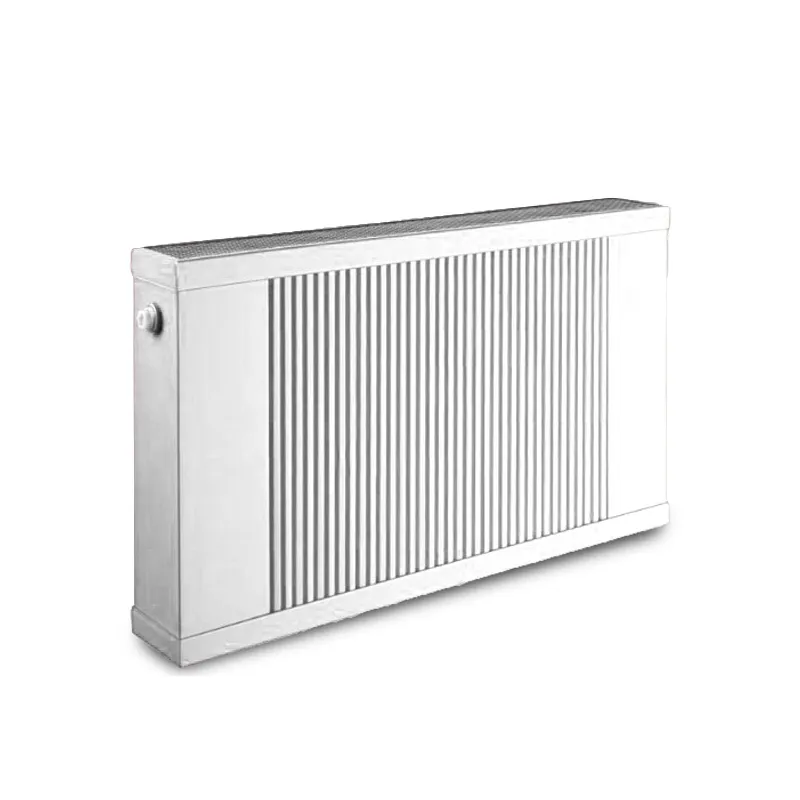

SOLLARIUS Radiators

SOLLARIUS is an extensive range of wall-mounted radiators featuring a distinctive flat top cover framed with aluminum, filled with an aesthetically perforated aluminum mesh. A similar frame is located at the bottom edge. The construction is based on a copper water system combined with an aluminum heat emission system. The metal connection is dry (no water contact), preventing electrochemical corrosion. This results in a radiator with high thermal efficiency.

Thickness: 9 cm. Distance from wall: 2 cm. Heights: 20–140 cm, lengths: 40–200 cm.

Available in two variants:

• SOLLARIUS – with exposed fins
• SOLLARIUS PLAN – with a flat, smooth surface

Low and long radiators mounted on floor-standing legs form the VERTAGO line, also available in both standard and PLAN versions.

Key Features

• Copper-aluminum construction
• Mixed heat emission: radiation + convection
• Corrugated, high surface area for heat exchange – ideal for heat pumps and condensing boilers
• High efficiency at low supply temperatures – due to the excellent thermal conductivity of copper and aluminum
• Low weight and water capacity – quick temperature response
• Low thermal inertia – easy to control and energy-efficient heating
• High resistance to variable and high pressure

Compatibility and Applications

Compatible with copper, plastic, and steel installations. Suitable for electric, gas, oil, and solid fuel boilers, as well as steam systems. Excellent compatibility with condensing boilers and heat pumps. Can be filled with antifreeze (e.g., in holiday homes).

Applications include:

• Single- and multi-family buildings (connected to district heating)
• Energy-efficient and passive houses
• Timber frame and wooden houses – lightweight construction
• Holiday homes – antifreeze fluid option
• Older systems – 50 mm connection spacing
• Public buildings, offices, schools, kindergartens – low surface temperature
• Religious buildings – even heating, moisture reduction
• SPAs, gyms, swimming pools, conservatories
• Cultural centers, retail, restaurants, banks
• Warehouses, industrial halls – zone heating, quick warm-up
• Watercraft, port infrastructure – corrosion resistance

Technical Data

• Height: 120–1115 mm
• Length: 400–2000 mm
• Width: 90 mm
• Connections: side and bottom – 1/2" F, bottom spacing 50 mm
• Operating pressure: 1.5 MPa
• Operating temperature: up to +110°C
• Water capacity: 0.12–2.38 dm³
• Weight: 0.8–23.2 kg
• Distance from wall: 2 cm

Why Choose the SOLLARIUS Radiator?

• High efficiency with low energy consumption
• Excellent thermal conductivity – copper and aluminum
• Large, corrugated heat exchange surface
• Fast heating, low thermal inertia
• Dual heating system: radiation and convection
• Even temperature distribution throughout the room

Air is drawn from the bottom through convection chimneys, heated while passing through the radiator, and exits through the perforated top cover. Radiant heat from the corrugated radiator surface supports even heating of the entire room.

Color Options and Finish

Any color from the RAL K7 palette (powder coating) is included in the base price. Standard color: white RAL 9003.

10% surcharge for metallic and textured colors (METALLIC series). RAL K7 sample chart available from distributors.

Note: Colors displayed on screens may differ from actual finishes. Please consult a distributor to confirm your chosen color.
