High efficiency circulation pump WITA go.future 2 40-25 180 LED

In an average household, 10 to 20% of electricity consumption is generated by a conventional standard pump. In our WITA go.future 2 series, we have developed a circulation pump with an energy efficiency index ≤ 0.20. By using these pumps, energy consumption can be reduced by up to 80% compared to a conventional circulation pump. The hydraulic performance is almost the same as that of standard pumps. The pump output adjusts to the actual needs of the system because it operates according to the proportional pressure method.

Product advantages

5-year warranty
Night power reduction / minimal energy consumption
LED energy consumption display
Air venting function
Button lock
Anti-blocking function
Also available in PWM and 0–10 V versions

Technical data

Parameter	Model 40
Maximum head	4 m
Maximum flow rate	2800 l/h
Power consumption	3–23 W
Control	4 constant curves, 4 proportional curves, 4 constant pressure curves
Additional functions	manual and automatic night mode, LED energy consumption display, air venting function, button lock, anti-blocking
Power supply voltage	1 x 230 V, 50 Hz
Protection class	IP 42
Ambient temperature	0 °C – +40 °C
Medium temperature	+5 °C – +110 °C
Maximum operating pressure	10 bar (1 MPa)
Connection diameter	DN 25
Installation length	180 mm
Pump housing material	180 mm – cathodic coated grey cast iron
Weight	2.5 kg
EEI	< 0.18

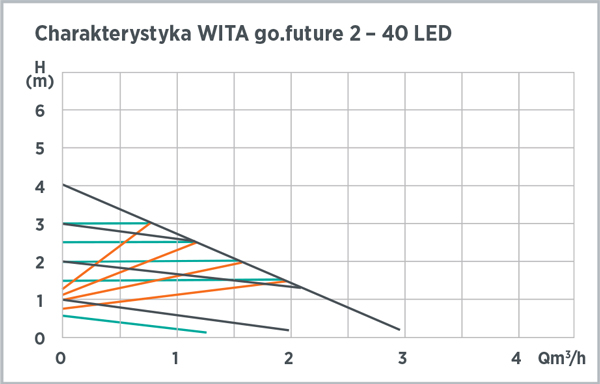

Performance curve

Data sheet

Weight [ kg ]	2.5
Height [ mm ]	180
Width [ mm ]	95
Chamber depth [ mm ]	136
Outlet and inlet supply size [ inch ]	1''
Max. working temperature [ °C ]	110
Max. operating pressure [ bar ]	10
Max. lift height [ m ]	4
Flow Rate [ l/h ]	2800
