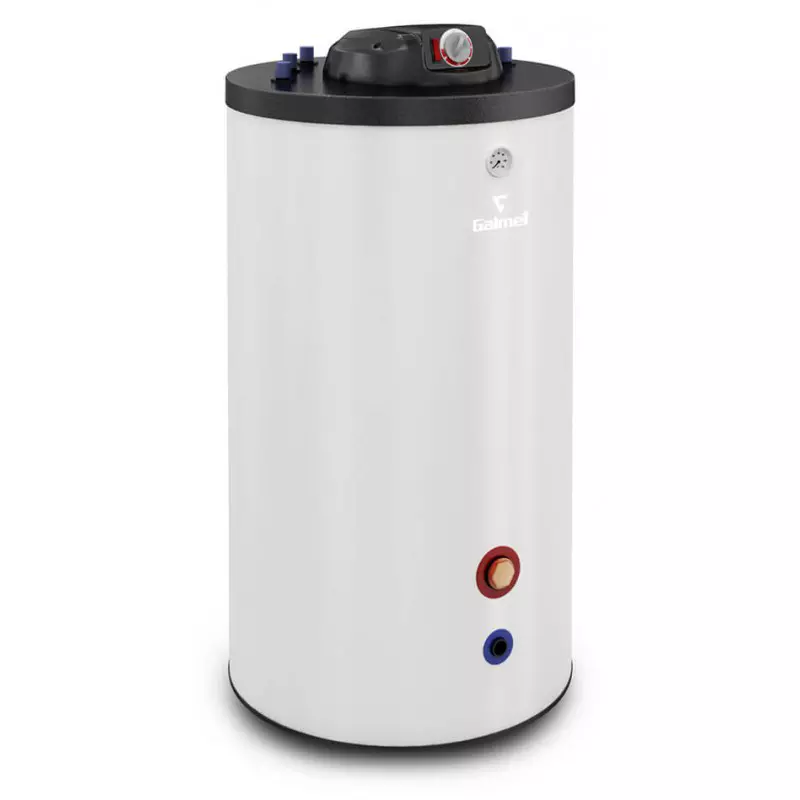

Layer tank FUSION

Layer tank FUSION View larger

06254

5901224413254

Manufacturer: GALMET
GALMET

1 411,35 USD

Payment and delivery

Transport Costs: Individual calculation
(After placing your order we will send you a non-binding offer containing delivery costs.)

Payment: Bank transfer

Total Rating Total Rating:

0
0/5 - 0 reviews

View ratings
0 1 2 3 40
0 1 2 3 00
0 1 2 0 10
0 1 0 1 20
0 0 1 2 30

 Add Review View Reviews View Reviews
Loading...



Twin-layer tank designed to work with a dual-function gas boiler. The division of hot water into layers makes that water intake does not start up gas boiler every time, which has an impact on boiler life and gas saving. Tank has a capacity of 100 litres of hot water. Insulation is made of polyurethane foam which reduces heat loss to a minimum. Inner coating of tank is made of wet-foamed and fired at 850 °C ceramic enamel. Such technology guarantees filling all gaps and corrosion protection. An additional protection against corrosion is a magnesium anode, condition checking and regular replacement of anode ensures a long life. The outer casing is metal, which protects tank from accidental damage to thermal insulation. Cold water is fed to the lower part of tank by a three-stage circulation pump with adjustable capacity.

All tank connections are located in the upper bottom of tank, which facilitates installation and operation. There is also a management thermostat and a switch on top of tank. The low height allows installation underneath every gas stove already installed. Horizontal adjustment is possible with adjustable feet on bottom of tank.

Technical dataUnitSG(S) Fusion 100
Storage capacityl104
Energy efficiency class ErP-C
Max. tank operating pressureMPa1
Max. tank operating temperature°C100
Temperature range°C8 - 77
Permanent expenditure of hot water Δt=30Kl/h (kW)660 (24)
Indicative heating time of tank Δt=45Kmin (kW)20 (24)
Magnesium anode - top cap 5/4 "mm25 / 390
Cold water supplyGZ3/4”
D.H.W. drainGZ3/4”
CirculationGZ3/4”
Boiler power supply / return from boilerGZ3/4”
Electrical set muff GEGW5/4”
Sensor cover (Ø 8 mm inside)GW1/2”
ThermometerGW1/2”
Water drainGW1”
L - heightmm900
d - inner diameter of tankmm500
D - outer diameter of tankmm600
Weightkg54

Data sheet

ClassC
Weight [ kg ]54
Height [ mm ]900
Diameter [ mm ]600
Thread diameter [ inch ]34"
InstallationVertical, Floor, Internal
Max. working temperature [ °C ]100
Max. operating pressure [ bar ]10
InsulationPolyurethane foam
Warranty 5 years
