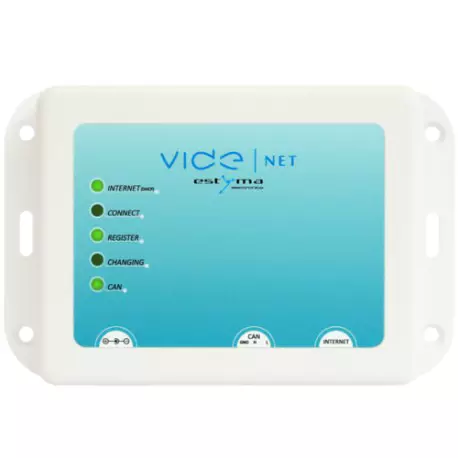

VIDE NET is an online module that allows remote access to current information in the central heating system and edit parameters through the Web site igneo.pl. The module is dedicated to IGNEO driver series.

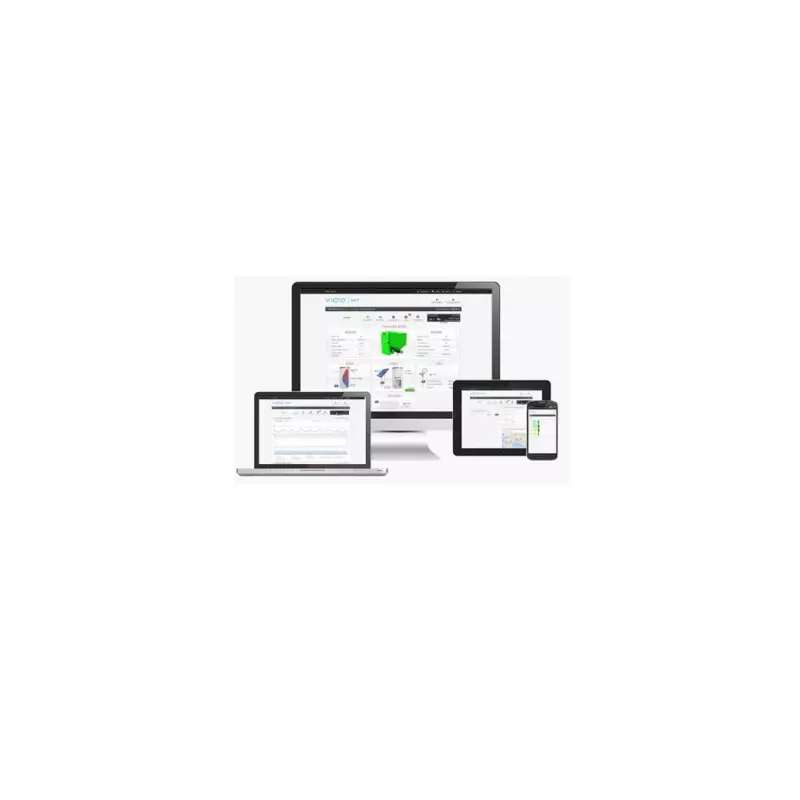

The idea behind the website is to provide easy and quick access to current information of the heating installation for building owners. Graphic user interface (GUI) is intuitive and easy to use by any device with a Web browser (smartphones and tablets included).

Additional features

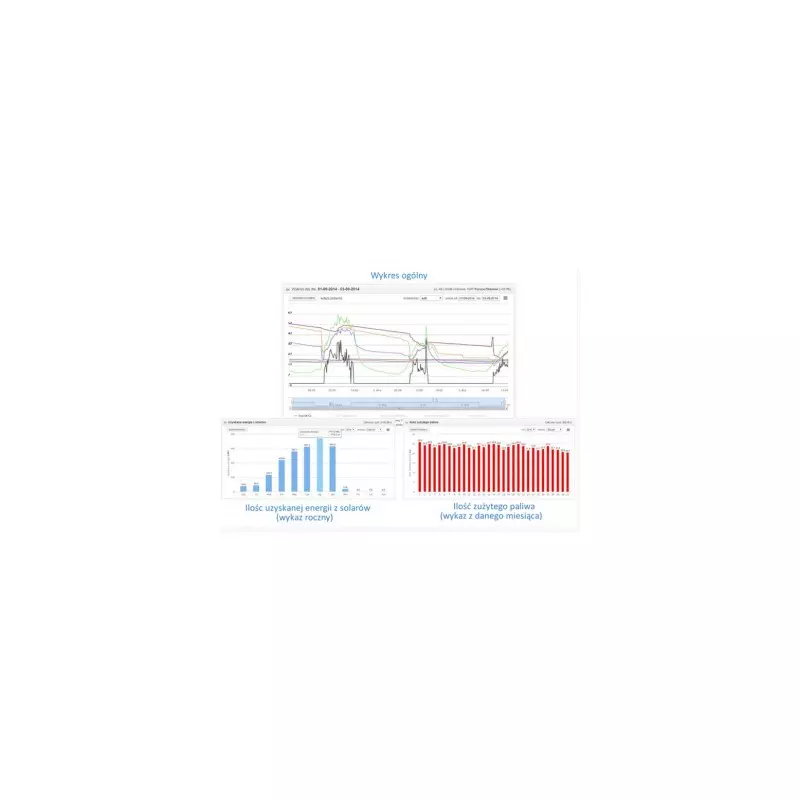

Analytics tools in the form of charts

1. General diagram - presents the work of all the most important components of the heating system. It has options to display only selected items, the ability to choose the date range and setting the drawing accuracy by sample every 10 seconds
2. Solar Panel diagram - counting the energy acquired in a given year, month or day and a financial calculation of the profit earned through solar energy
3. Fuel consumption diagram - archive fuel consumption by the boiler along with complimentary expense for each year, month and day

Email notification of new alarms to the user

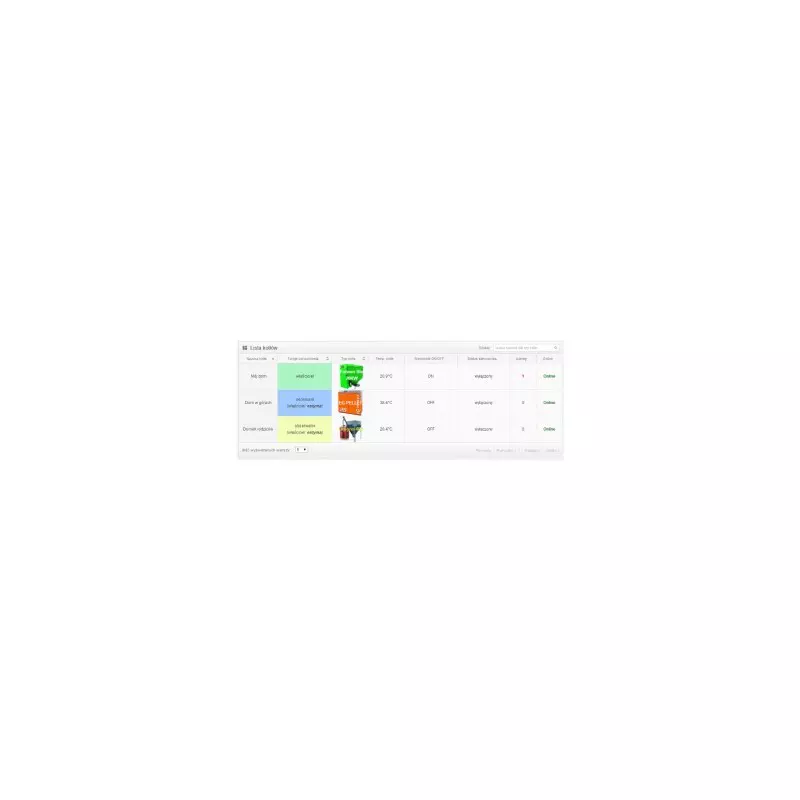

Sharing heating system

To one account, you can connect an unlimited number of heating systems.

Additionally, the system has 3 types of permissions:

1. Owner - Only the user has access to all its functions including sharing
2. Serviceman - the right technician to inspect authorizes the parameters of the heating system and make changes in its settings. All possible changes are recorded in the history of change in the heating system
3. Observer - authorizes only to observe the parameters of the heating system

The ability to share heating systems can be especially useful in matters of internet service. In case of any failure of the heating system, an authorized service technician can first make its analysis by Internet service which can significantly speed up and facilitate locating a possible fault / problem without the need for a personal visit by the technician.

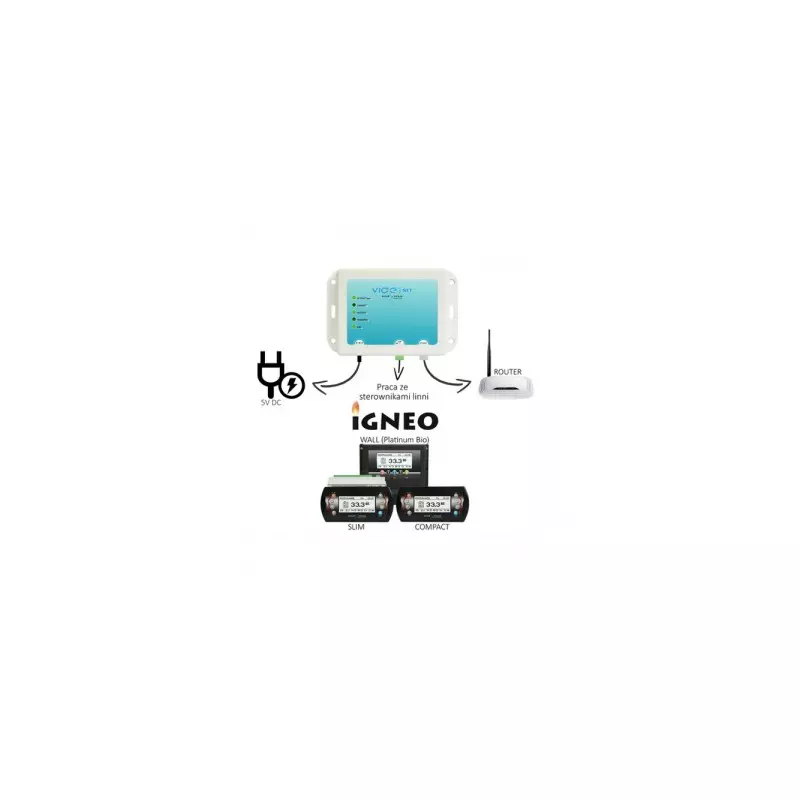

Connection

VIDE NET module does not require any configuration. Connection is very simple and comes down to just connecting wires. Registration of a heating system on igneo.pl is equally simple. The entire process is fully automated and the only activity performed is entering a PIN which appears on a label affixed to the module.

NOTE: VIDE .NET Web module works only with the company Estyma IGNEO line of compatible version of software driver (in the "INFO" menu the logo of VIDE NET must be present).

The set includes

• Module NET VIDE
• Cable CAN
• Ethernet Cable
• 5V DC power supply
