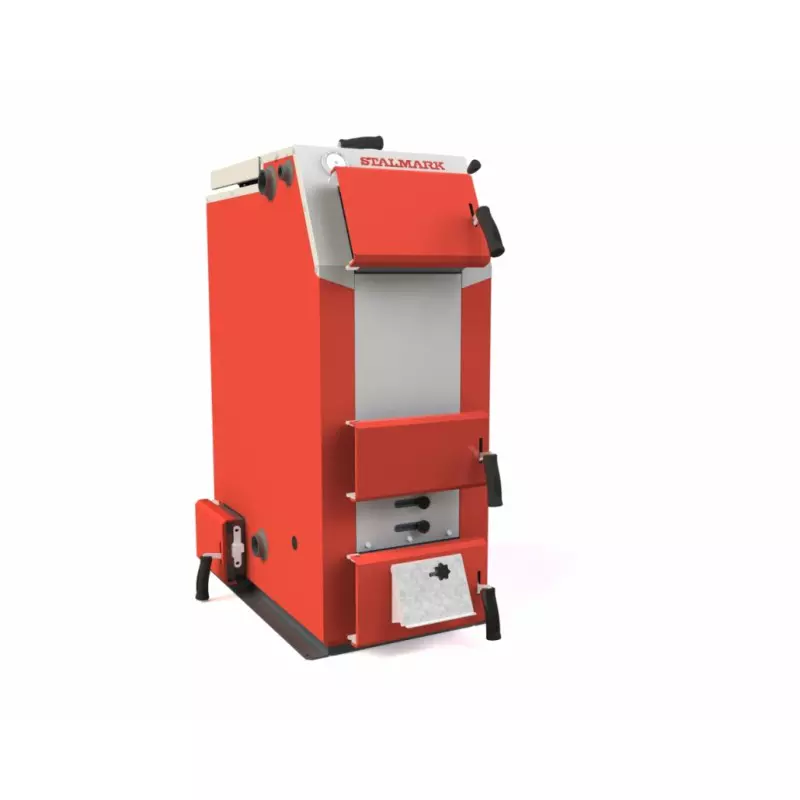

Manual fired boiler for coal STALMARK EKO GORAL 12kW

⛔ Product unavailable

Manufacturer: STALMARK
STALMARK

Discontinued product

Payment and delivery

Transport Costs: Individual calculation
(After placing your order we will send you a non-binding offer containing delivery costs.)

Payment: Bank transfer

Total Rating Total Rating:

0
0/5 - 0 reviews

View ratings
0 1 2 3 40
0 1 2 3 00
0 1 2 0 10
0 1 0 1 20
0 0 1 2 30

 Add Review View Reviews View Reviews

Accessories



STALMARK EKO GORAL is the central heating boiler most often used in small single-family buildings, studios, commercial pavilions, utility rooms and garages. The fuel used in the combustion process is hard coal, assortment: peas I/II. The fuel should be dry, otherwise it drastically accelerates wear and tear of the boiler, resulting in is the corrosion of furnace plates, and external plates under a tenon.

This is caused by the release of combustion products such as water, nitrogen oxides and sulphur, which cause corrosion. steel elements of the boiler. The boiler contains a casing with a body placed in it, inside which there is an ash chamber , compartment situated above it and separated from it by a water grate. The ashtray chamber and the combustion are closed by a door.

PARAMETERSUnitBoiler model
EKO GORAL
Nominal power[kW]12
Power range[kW]3,6 - 12,0
Heating surface[m2]1,54
Area of ​​heated rooms[m2]do 150
Permissible operating pressure[MPa]0,15
Exhaust draft required[Pa]25
Supply water temperature [min / max][°C]55/90
Boiler weight[kg]320
Boiler water capacity[I]91
The minimum height of the chimney[m]
Boiler efficiency[%]~90
Smoke dimensions[ø/mm]180
Supply and return diameter (sockets with internal thread)[in]6/4"
Electric power supply[V/Hz]230/50
Electrical efficiency class[-]
Dimensions of the furnace chamber (width x depth x height)[mm]250 x 205 x 280
Loading hole dimensions (width x height)[mm]250 x 188

Data sheet

Power [ kW ]12
Weight [ kg ]330
Exhaust gas pipe size [ mm ]180
Water capacity [ L ]91
Outlet and inlet supply size [ inch ]64''
Mains voltage [ V ]230
