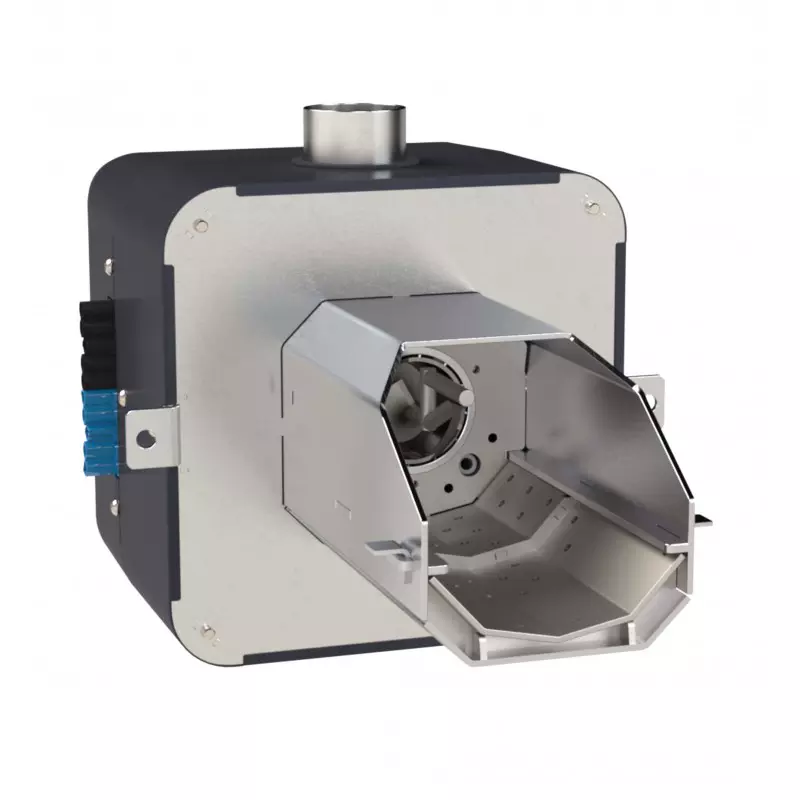

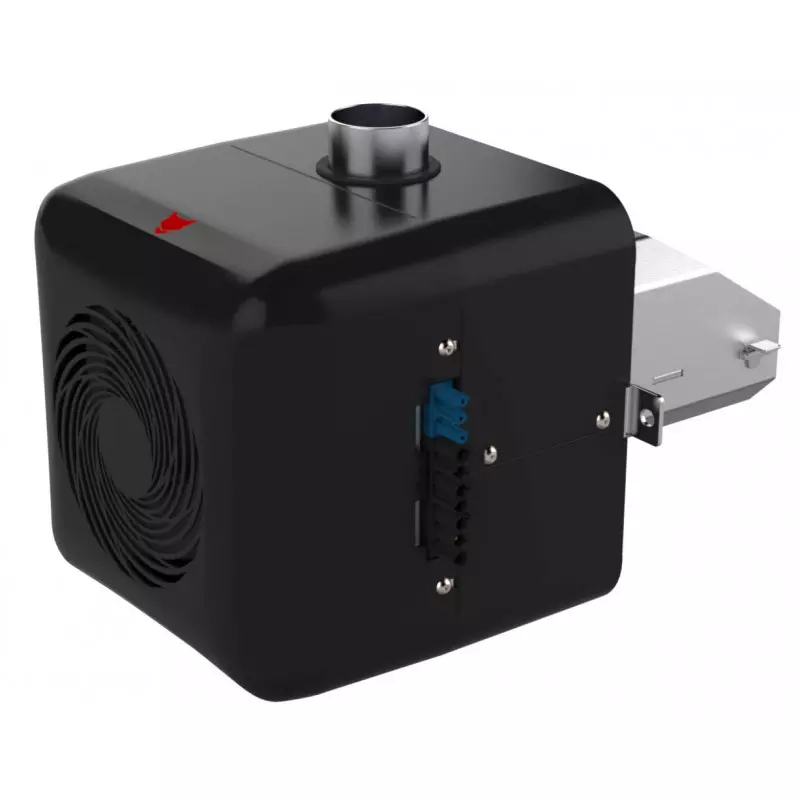

Burner M Mini

Pellet and agropellet burner from 5 to 26 kW. Most commonly used for boilers and oil furnaces or for solid fuel in single and multi-family buildings.

Warranty: 3 years

Fuel

Burner is designed for combustion:

• pellets with a thickness of 6-8 mm
• low quality wood pellets
• agropellet
• stone: dry stones from cherries or olives
• oat

Applied technologies:

Walking Grate System

• Integrated mobile fireplace system
• Doesn't require frequent maintenance
• Incineration of pellets of lower quality and calorific value

Hybrid Drive System

• Reduces energy and fuel consumption
• Increases combustion efficiency
• Combined feeder and blower system

Overpressure Combustion System

• Increased efficiency of furnace through central air supply during combustion process
• Venturi effect prevents flame recession

Mixing system Fuels in the Combustion Chamber

• Increased ash removal and improved combustion process

X.Plug System

• Original design of a safe plug and socket, developed and manufactured exclusively for the needs of PellasX

X.Shell System

• Easily removable blower shell with integrated blower duct
• Easy access to lighter and other components in the blast chamber

X.Gnite System

• Combination of advantages of metal lighters (durability) and ceramic lighters (fast firing-up time)
• Rapid firing system for pellets
• Reduces electricity consumption

Quick Mounting/Dismounting System Lighter

• Simplifies the burner servicing process

Possibility to install a reduction flange

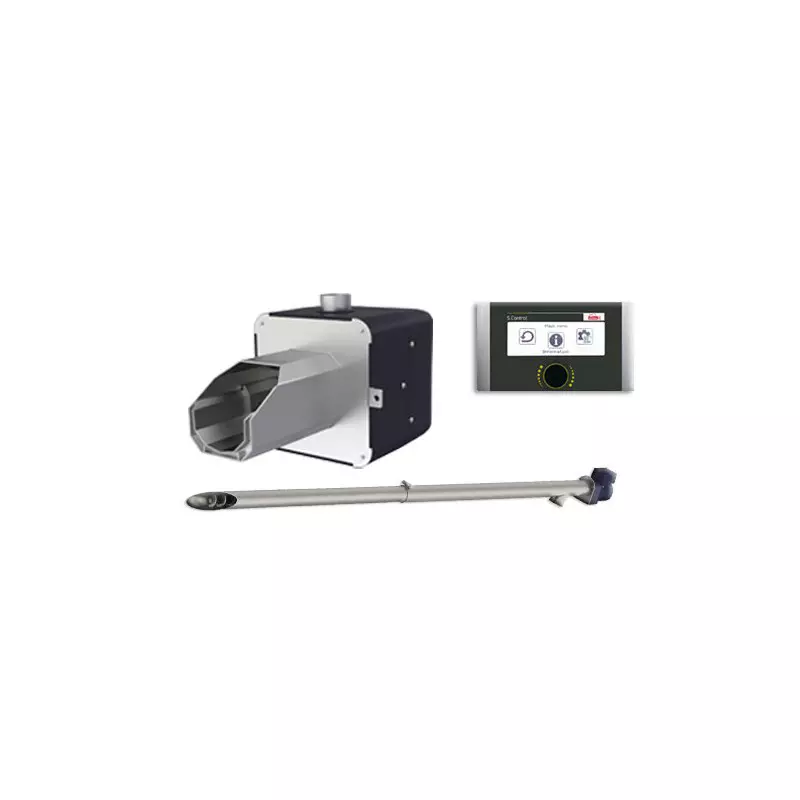

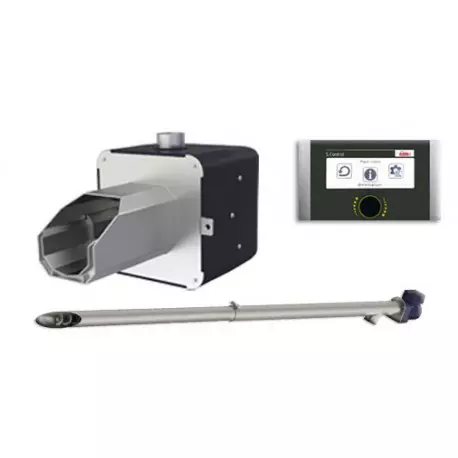

Composition of set

• Pellet burner M Mini
• S.Control Controller
• Galvanized feeder with a length of 2 metres

Dimensions of the M Mini pellet burner :
