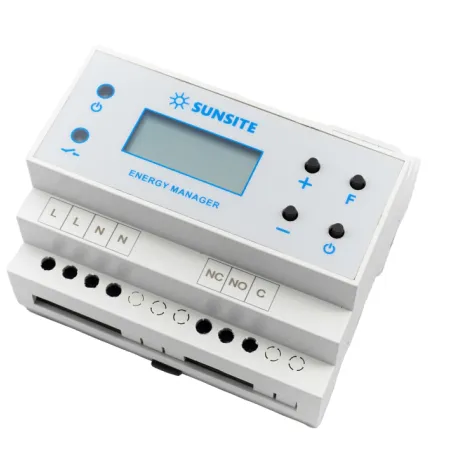

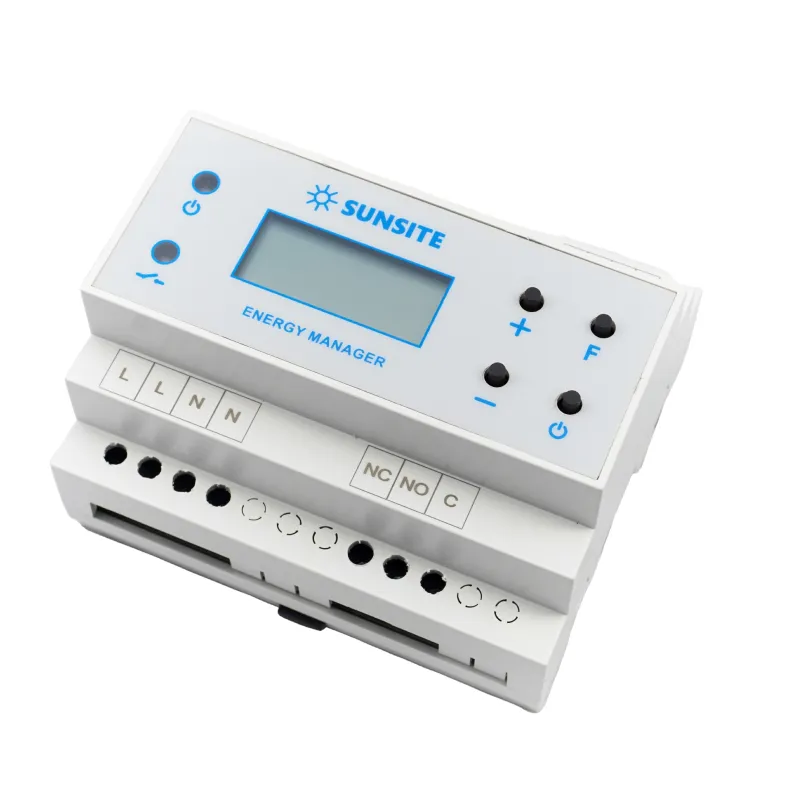

By using the ENERGY MANAGER EM-1-T energy management module, you have full control over the operation of your buffer/boiler. This innovative module is the simplest solution that transforms heat buffer into an efficient energy storage.

The EM-1-T module plays a key role in controlling the heating element of the heat buffer, such as a CWU boiler. Its task is to maintain a constant temperature T1, ensuring the comfort of using CWU water, functioning as a traditional thermostat (T mode).

In the event that the power generated by the photovoltaic installation PG, measured by the impulse signal from the electric energy meter, exceeds the set value or when the additional contact P is activated, the EM-1-T module automatically switches to energy storage mode (E mode). In this mode, it allows the buffer to be heated to a higher temperature T2 and accumulates the available surplus of electric energy. The CWU tank then serves as an energy storage, and the surplus is not transferred to the grid but used locally to heat the buffer. The entire process is fully automatic and requires no additional handling once the module is set up.

Benefits of using the EM-1-T module:

• Effective control of the heating element, enabling the conversion of the buffer into an energy storage.
• Precise adjustment of the buffer temperature, dependent on the currently generated power.
• Optimization of the own consumption of energy generated by the PV installation or wind power plant, while limiting export to the power grid.
• Maximization of profits associated with the production of electrical energy by your installation.
• Display of the current generated power, maximum power, and duration of self-consumption.
• Prevention of unnecessary energy returns to the power grid.
• Seamless cooperation with any electric energy meter equipped with an impulse output.

Several possible applications:

• Control of the heating system for central heating and domestic hot water
• Conversion of any heat buffer into an energy storage
• Indication of PV installation operating parameters
• Control of electric vehicle chargers
• Control of pool heating
• Lighting control
• Monitoring of photovoltaic installation operation
• Supervision of heat pump operation
• Indication of energy overproduction status

Key benefits:

• Increased profitability of photovoltaic installations
• Energy consumption control
• Low device cost compared to photovoltaic investment
