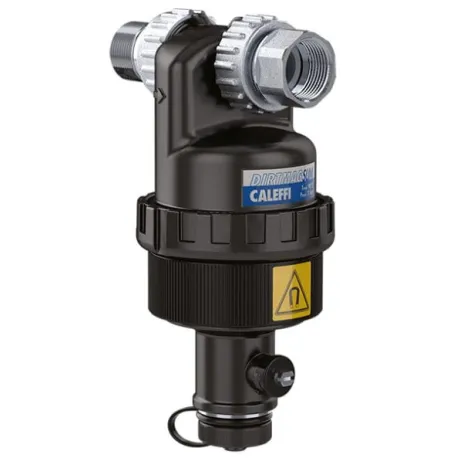

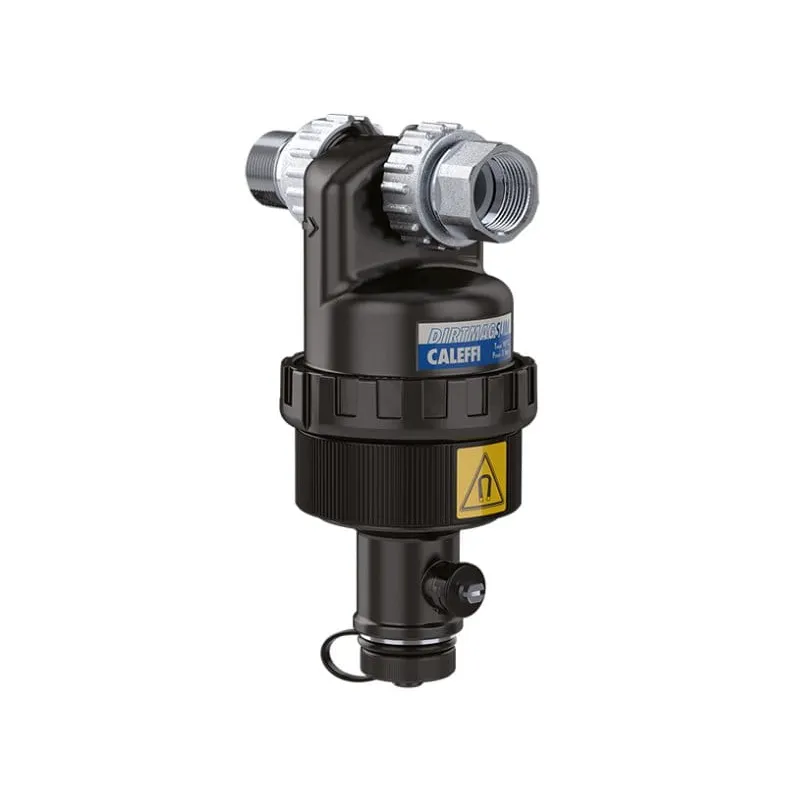

DIRTMAGSLIM GZ 3/4” x GW 3/4” Magnetic Impurity Separator for CALEFFI Boiler Mounting

The DIRTMAGSLIM impurity separator is designed to remove impurities present in the central heating system. These impurities are collected in a special, large-capacity chamber and can be removed during the normal operation of the system. Additionally, the device also removes ferromagnetic impurities through the use of a magnetic ring.

Due to their compact size, impurity separators from the DIRTMAGSLIM series can be mounted directly under hanging boilers on horizontal pipelines where a traditional filter could not be installed. Additional elements allow for the installation of the device using both flexible and rigid pipes.

When installing the impurity separator, it should be placed on the return pipe in the direction indicated by the arrow on the valve body and mounted in a vertical position with the drain valve pointing downward.

Product Features:

• Housing: Made of technopolymer
• Drain Valve: With hose connection (included)
• For Mounting: Under the boiler
• Size: DN 20
• Connection from the installation side: 3/4” GZ
• Boiler-side connection for copper pipes: Ø 18 mm and Ø 22 mm
• Max. Operating Pressure: 3 bar
• Operating Temperature Range: 0–90°C
• Chrome-plated Brass Fittings
• Housing and Deflector: Made of PA66G30
• Internal Element: Made of HDPE
• Seals: Made of EPDM
• Medium: Water and glycol solutions
• Magnetic Ring: 2 x 0.3 T
• Maximum Glycol Concentration: 30%
