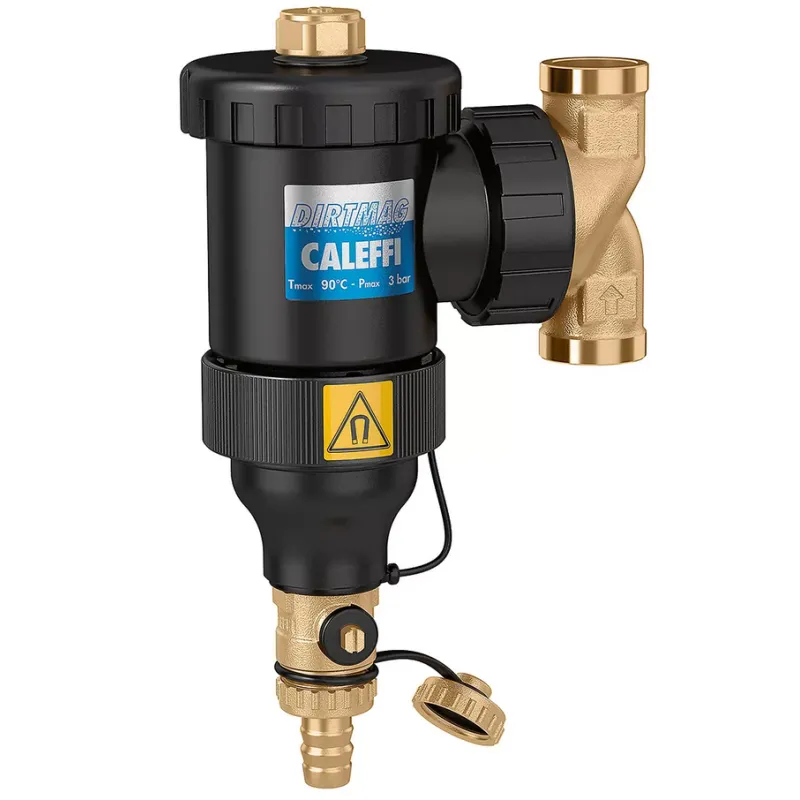

These devices are designed to remove contaminants in closed central heating systems, primarily sand and rust particles. This results in minimal pressure loss in the installation. Contaminants are collected in a spacious chamber, reducing the need for frequent cleaning, and they can be removed during the system's normal operation. The version with a magnet is intended for separating ferromagnetic impurities. Due to its composite construction, the contaminant separator can be used in air conditioning systems. The device can be mounted on both vertical and horizontal pipes.

Product Features:

• Made of: composite
• Connectors: with internal threads
• For pipes: horizontal or vertical
• Drain valve: with hose connection
• Max. operating pressure: 3 bar
• Operating temperature range: 0 to 90°C
• Connection: 3/4"
• Medium: water, glycol solutions
• Max. glycol concentration: 30%
• Magnetic induction: 2 x 0.3 T
