Hot water air heater Reventon HC3P 400V

View larger

Display all pictures

⛔ Product unavailable

Pdf Reventon HC3P 400V

Manufacturer: REVENTON

Discontinued product

Power output [ kW ]

Payment and delivery

Transport Costs: Individual calculation
(After placing your order we will send you a non-binding offer containing delivery costs.)

Payment methods for the goods:

Bank transfer – eligible for a 2% discount for orders from Poland (others without discount)
Cash on delivery – always without discount, available only in Poland and the Czech Republic (up to 8,000 PLN or 16,000 CZK, rest in bank trasfer)
P24 – operator’s payment gateway, no discount for orders from Poland, others +2%

Add to wishlist

Total Rating:

0/5 - 0 reviews

View ratings

	0
	0
	0
	0
	0

Add Review

View Reviews

Accessories

Flexible hoses Reventon - 2 connection hoses
48,86 USD
Add to cart
Rotational holder Reventon HC20-3S - HC45-3S
18,57 USD
Add to cart
Rotational holder Reventon HC50-3S - HC80-3S / HCF
24,29 USD
Add to cart

Technical data	Unit of measure	HC3P 20	HC3P 30	HC3P 35	HC3P 45	HC3P 50	HC3P 70
Nominal heating capacity water 90/70°C and inlet air temperature 0°C	kW	22,4	26,4	33,9	43,3	46,6	68,5
Heating power range	kW	8-22,4	9,05-26,4	12,9-33,9	18,4-43,3	20,1-46,7	30-68,5
Maximum airow	m3/h	4100	4000	4000	3600	4600	4400
Maximum range of air stream	m	25	25	25	22	25	25
Number of rows	pcs	1	1	2	2	2	3
Capacity of water	dm3	0,65	0,8	1,35	1,7	1,95	2,85
Air temperature rise*	°C	17,8	25,2	28,6	46,7	29,6	46,5
Maximum temperature of heating agent	°C	120	120	120	120	120	120
Maximum operating pressure	MPa	1,6	1,6	1,6	1,6	1,6	1,6
Rated current	A	0,47	0,47	0,47	0,47	0,6	0,6
Power supply voltage	V	400	400	400	400	400	400
Motor power	W	180	180	180	180	250	250
Motor speed	rev/min	1380	1380	1380	1380	1350	1350
Motor IP	-	54	54	54	54	54	54
Connection diameter	"	3/4	3/4	3/4	3/4	3/4	3/4
Weight	kg	11,5	12	12,5	14	17,5	19,5
Noise	dB	50	50	50	50	50	50

HC 20, HC 30, HC 35, HC 45

height:598 mm (a)

width:636 mm (b)

depth:320mm (c)

HC 50, HC 70

height:698 mm (a)

width:739 mm (b)

depth:340 mm (c)

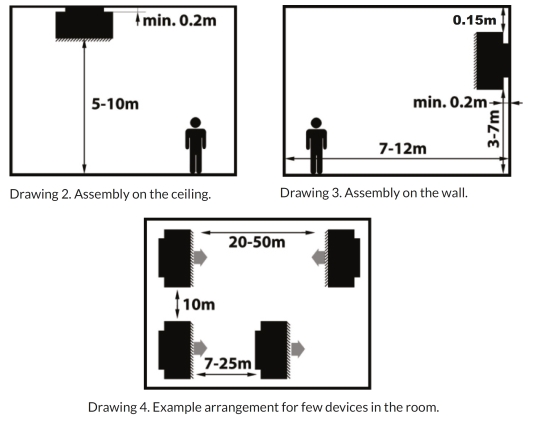

Nagrzewnica%20nawiewnik%20Reventon%wymiary

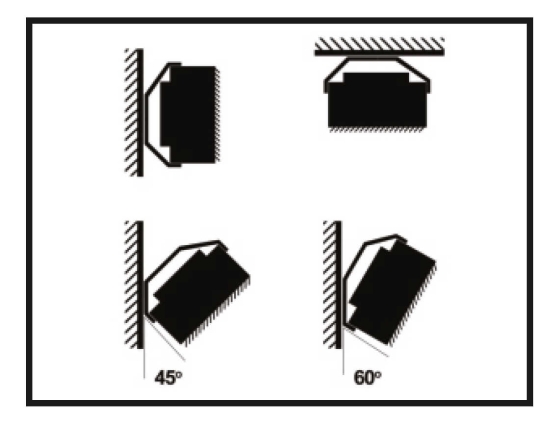

Reverton%20montaz%20wiecej%20niz%20jednej

Additional equipment

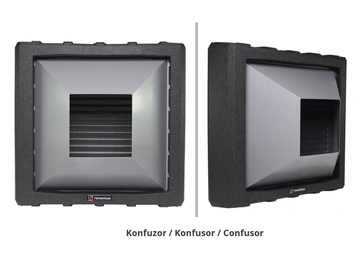

CONFUSOR

Focus on one point For those who need to concentrate the airflow at one point, the confusor-cover plate will provide the best solution and speed up the airflow. We recommend it for the celiling mounted heaters.

APPLICATION

Used for top-blowing warm air in high spaces, enables the airflow in one direction.

Made of galvanized steel.

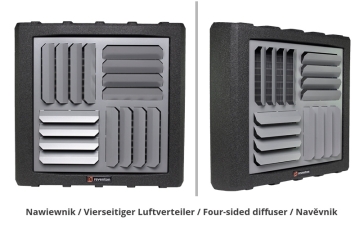

FOUR-SIDED DIFFUSER

One of our useful accessories will help you to keep the heat in 4 directions at once . That's rigth! Four-sided diffuser will do the job before you even know it. For best results- mount the water heater on the ceiling and let it do its job!

APPLICATION

Four-sided diffuser- cover plate for water heaters enables the airflow in 4 different directions in the room. Recommended for ceiling mounting.

Made of galvanized steel.

Data sheet

Power [ kW ]	68.5
Power [ kW ]	46.7
Power [ kW ]	26.4
Power [ kW ]	22.4
Power [ kW ]	43.3
Power [ kW ]	33.9
Weight [ kg ]	19.5
Weight [ kg ]	17.5
Weight [ kg ]	12
Weight [ kg ]	11.5
Weight [ kg ]	14
Weight [ kg ]	12.5
Height [ mm ]	598
Height [ mm ]	598
Height [ mm ]	598
Height [ mm ]	698
Height [ mm ]	598
Height [ mm ]	698
Width [ mm ]	636
Width [ mm ]	636
Width [ mm ]	739
Width [ mm ]	636
Width [ mm ]	636
Width [ mm ]	739
Depth [ mm ]	320
Depth [ mm ]	320
Depth [ mm ]	340
Depth [ mm ]	340
Depth [ mm ]	320
Depth [ mm ]	320
Water capacity [ L ]	1.95
Water capacity [ L ]	0.65
Water capacity [ L ]	2.85
Water capacity [ L ]	1.7
Water capacity [ L ]	1.35
Water capacity [ L ]	0.8
Outlet and inlet supply size [ inch ]	³⁄₄''
Max. working temperature [ °C ]	120
Max. operating pressure [ bar ]	16
Mains voltage [ V ]	400
Warranty	3 years
