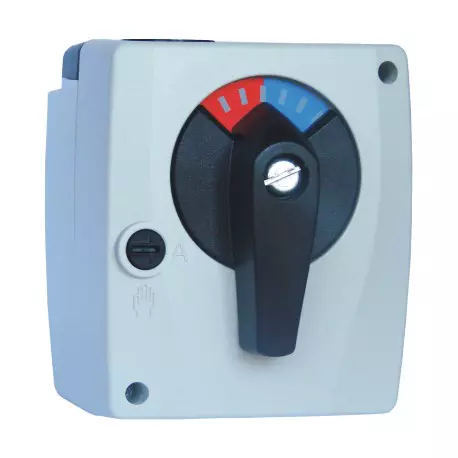

Mixing valve actuator WOMIX series MP model 06 24/140 (0-10V) stands out by a compact cover and solid assembly. Actuator cover made out of strong plastic hides a gear with a maximum torque of 10 Nm using a synchronous electrical motor and two limit switches for positioning the mixing valve.

WOMIX MP 10 mixing valve actuator is factory-equipped with a standard 1.5 meter 3-wire long electrical cable (with a wire thickness of 0.75 mm2) and an adapter for mounting the actuator on the mixing valve of WOMIX Series MIX M and MIX MT.

Intended for installation on three or four-way mixing valve with a diameter within DN 20-32 is possible due to a special mounting adapter (the default supplied one for WOMIX M and MT only). After purchasing an additional adapter several other mixing valves are compatible with the MP 10 mixing valve actuator.

Additional extra adapters for compatibility with none WOMIX mixing valves *

• Adapter A 062 for WITA Minimix and type H, Meibes V6 mixing valves
• Adapter A 063 for Meibes V7 mixing valves
• Adapter A 064 for ESBE, Danfoss mixing valves
• Adapter A 065 for ESBE, Danfoss VRG, VRB mixing valves

* standard adapter A 061 for WOMIX MIX M, MIX MT is the default supplied one

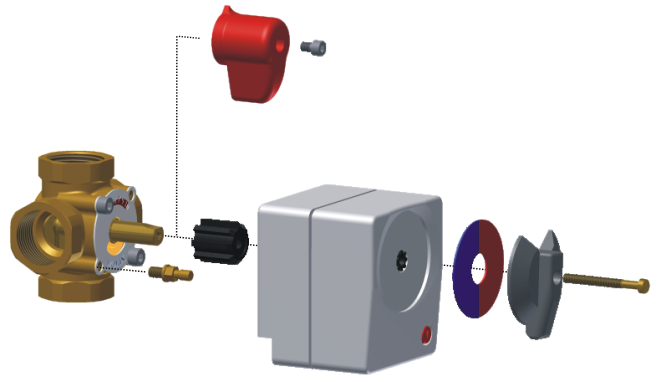

WOMIX MP 10 mixing valve actuator installation

Standard mixing valve actuator WOMIX MP 10 equipment and adapter is compatible with:

• mixing valve Womix MIX M3 1 1/2"
• mixing valve Womix MIX M3 2"
• mixing valve Womix MIX M4 1 1/2
• mixing valve Womix MIX M4 2"

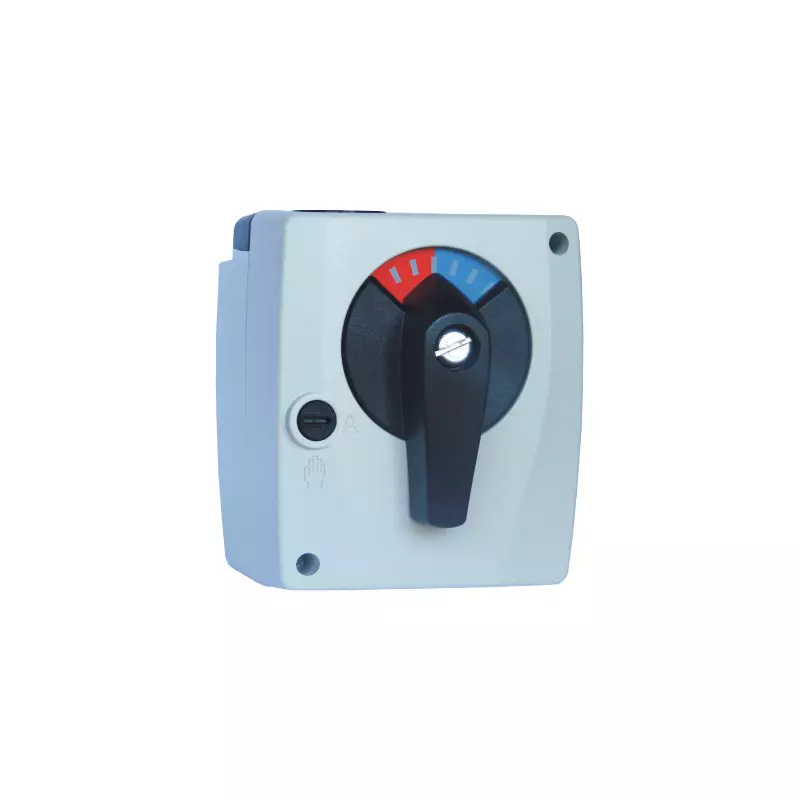

Mixing valve actuator WOMIX MP 10 has a large and conveniently placed auto/manual working mode switch. Red-blue visualization of the mixing valve poppet shows the current opening state of the mixing valve. Profiled switch handle enables to change the mixing valve position in manual mode without disassembling the actuator (in the case of lack of electricity).
