Modern wood chips and biomass central heating boiler Moderator Vento Multi with automatic feeder and burner

Ecological biomass renewable fuel burning with Moderator Multi Vento

Boiler Multi Vento is a modern and ecological low-temperature water central heating device, designed to burn biomass renewable solid fuel. AZSB set (automated biomass burning set) including a SMOK cast iron burner is adapted for burning renewable fuels of wood and plant type (P45 type wood chips, pellets, sawdust, bark, peat, briquette of bulk density to 450kg/m3) in a completely automatic way with user absence, included cast-iron fire grate will allow traditional emergency combustion (manual - hand fired mode) in the case of power failure with fuel types like black coal (nut granulation) and seasoned wood, firewood, smaller wood logs. Heating equipment consists of a boiler (heating exchanger), solid fuel feeder system, burner with a cast iron head equipped with a movable grate for burning biomass fuel and fuel hopper. The unique design provides user maintenance-free, comfortable and efficient work. High efficiency (86%) and low smoke emissions provide an efficient and environmentally friendly solution for people who have a low-cost access to wood or wood waste (carpenters, woodshed stocks, wood furniture factories). Moderator Vento Multi is a modern technology which meets the heating and economy requirements with significant impact on ecological heating solutions.

Moderator boiler Multi Vento has a control cabinet and controller from PLUM (ecoMAX 800) with a convenient control panel and a display next to which a traditional thermomanometer is placed. The controller implements intelligent independent self-control technology known as FUZZY LOGIC. The control cabinet of the central heating boiler can be expanded by connecting: servomotor for a mixing valve, domestic hot water pump, central heating pump, mixer temperature sensor, outdoor temperature sensor, return water temperature sensor, room thermostat panel (PLUM ecoSTER 200).

The standard boiler accessories include:

• thermomanometer
• cleaning set
• cast iron emergency grate
• controller (control cabinet and control panel of the boiler controller)
• fire system (boiler fireman)
• boiler
• automatic fuel feed system with a fuel hopper with 0,6 m³ capacity (hopper with 1 m³ can be purchased for MULTI Vento models with capacities of 15 kW, 20 kW, 25 kW while 35 kW and 50 kW have a 1 m³ in standard)

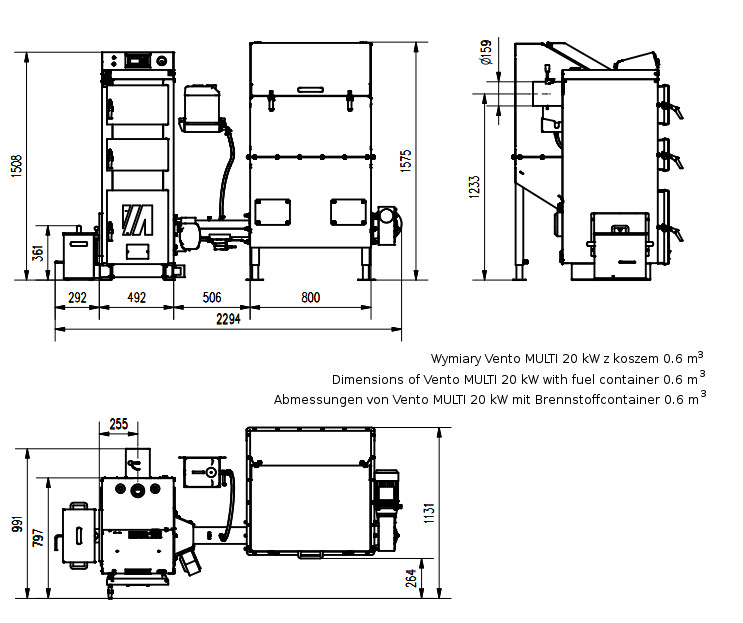

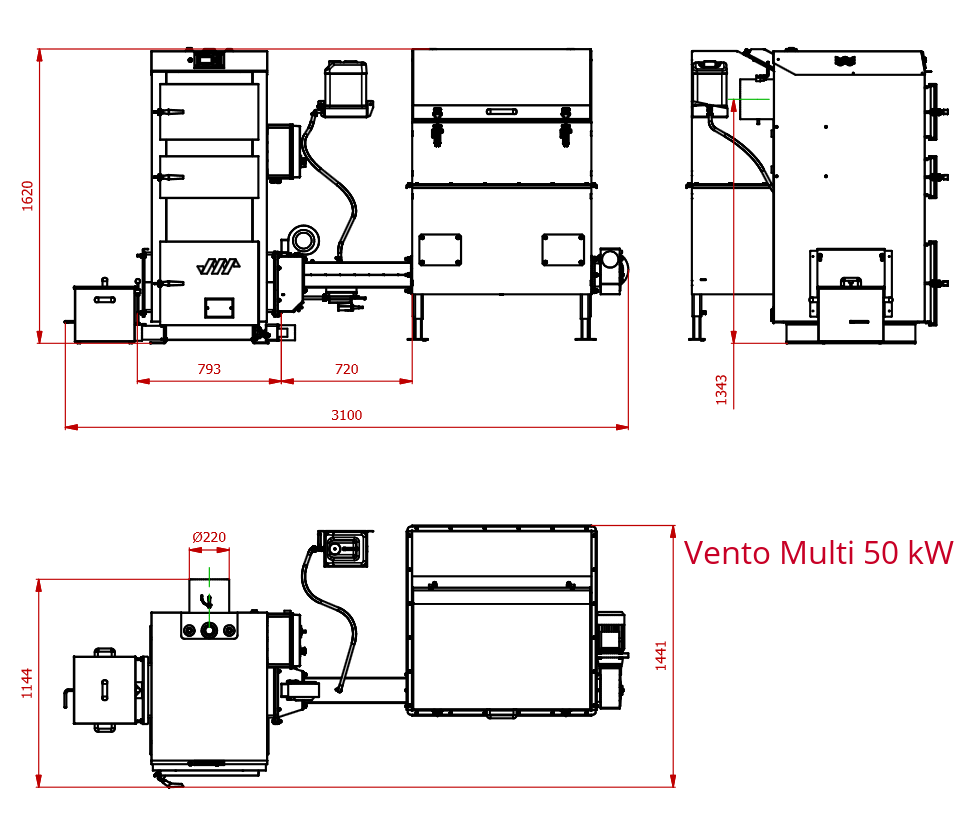

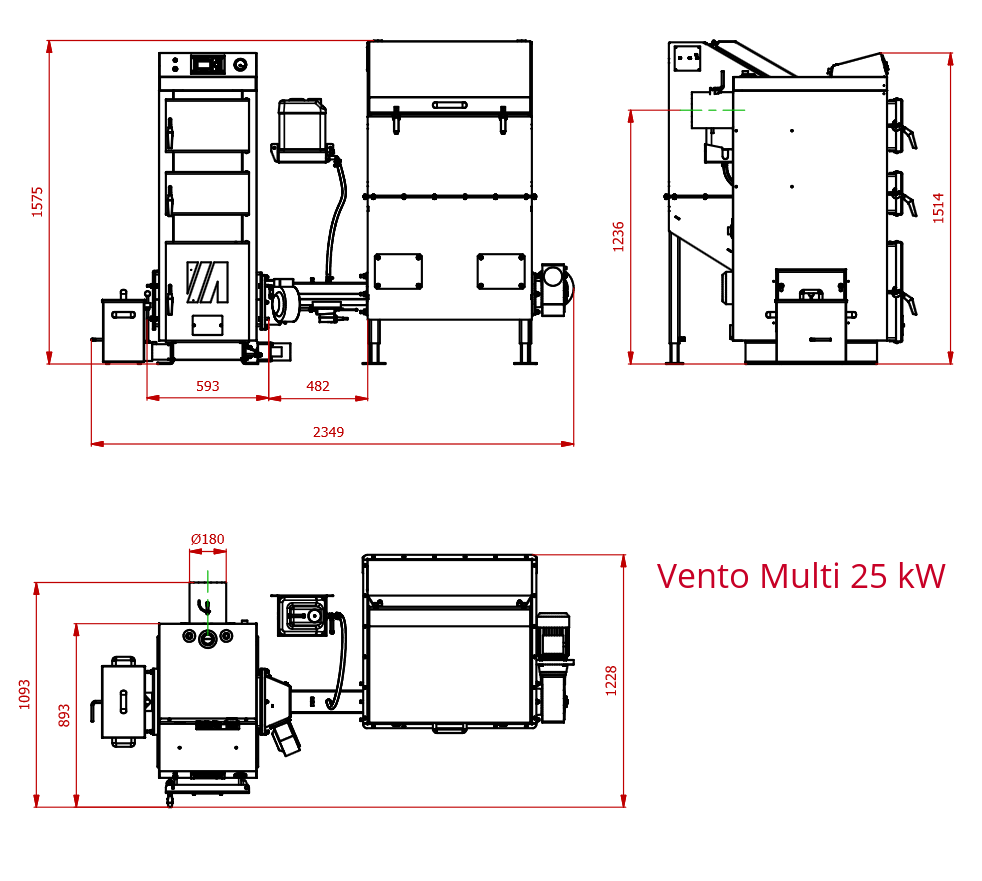

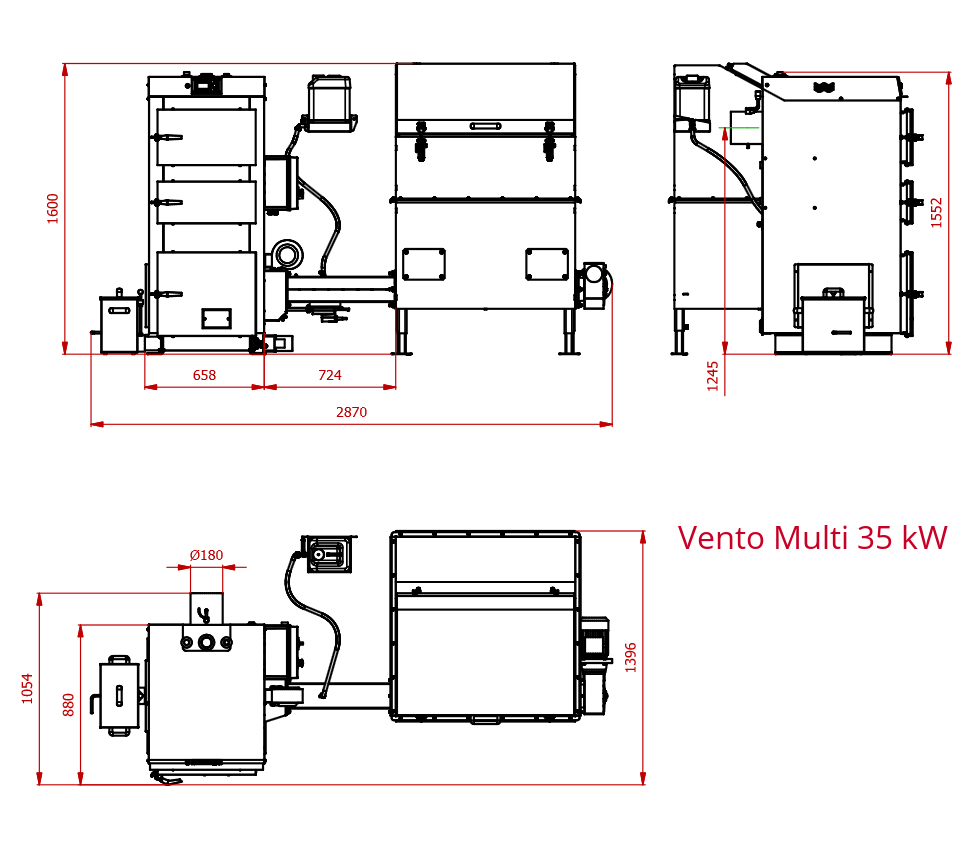

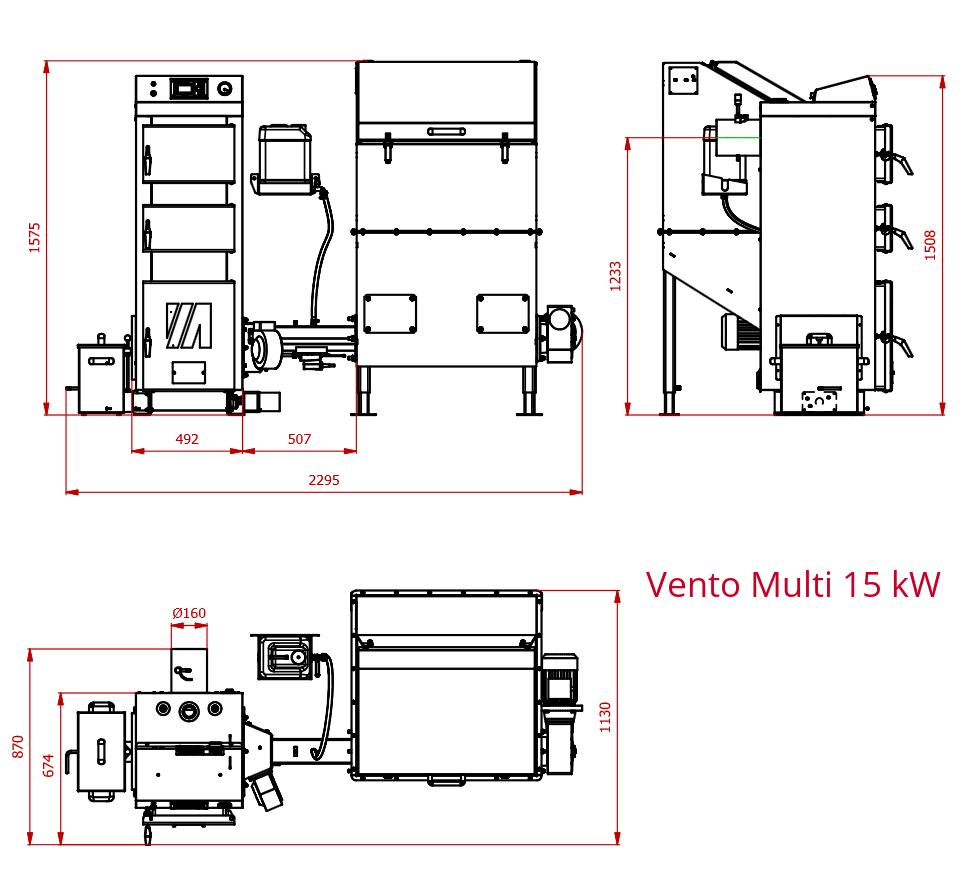

Moderator boiler - exchanger construction

1. ash pan doors
2. cleanout door of the combustion chamber (loading door for emergency combustion)
3. cleanout door of the heat exchanger
4. primary (manual, emergency) air damper
5. flue (gas extraction)
6. connection frame of the burner head
7. flue gas damper (back draft damper)
8. ash pan box
9. ash container damper
10. drain valve G ½ " connector
11. return water connector G 1½ " (inlet water)
12. safety valve G ¾ " connection
13. supply water connection G 1½ " (outlet water)
14. thermal protection connector G ½ "
15. ash box lock (release) mechanism
16. burner head frame connection cover
17. controller choke connection panel
18. controller panel housing
19. control panel
20. thermomanometer
21. gear motor of the ash removal system (optional)
22. control cabinet

Construction of fuel feeding system AZSB

1. cast iron head
2. solid fuel hopper (tank)
3. gear motor
4. feeder shaft
5. fire protection system
6. blower
7. movable grate servomotor
8. moving toothed wheel
9. inspection hole

Construction of SMOK cast iron burner

1. movable grate
2. fixed grate
3. burner head combustion chamber
4. burner head cover
5. movable grate servomotor
6. blower
