Boiler Metal-Fach SEG

View larger

Display all pictures

⛔ Product unavailable

Pdf SEG

Manufacturer: METAL-FACH

Discontinued product

Power output [ kW ]

Model-/-Name

Boiler feeder

Lambda Sensor

Controller

Sterowanie

Payment and delivery

Transport Costs: Individual calculation
(After placing your order we will send you a non-binding offer containing delivery costs.)

Payment methods for the goods:

Bank transfer – eligible for a 2% discount for orders from Poland (others without discount)
Cash on delivery – always without discount, available only in Poland and the Czech Republic (up to 8,000 PLN or 16,000 CZK, rest in bank trasfer)
P24 – operator’s payment gateway, no discount for orders from Poland, others +2%

Add to wishlist

Total Rating:

0/5 - 0 reviews

View ratings

	0
	0
	0
	0
	0

Add Review

View Reviews

Accessories

Sealant for furnaces SOUDAL (up to) 1500°C
9,14 USD
Add to cart

Parameters	Unit	Type of boiler
-	-	SEG - 14	SEG - 17	SEG - 28	SEG - 38	SEG - 50	SEG - 75
Nominal thermal output	[kW]	14	17	28	38	50	75
Boiler power range	[kW]	4,2 - 14,0	5,1 - 17,0	8,4 - 28,0	10,5 - 38,0	15,0 - 50,0	22,5 - 75,0
Heating surface	[m2]	2,1	2,54	2,85	3,11	5,41	6,75
Heatable area	[m2]	170	170-200	200-280	280-380	380-480	480-780
Boiler water capacity	[L]	60	68	73	95	120	173
Maximum working pressure	[bar]	1,5	1,5	1,5	1,5	1,5	1,5
Maximum working temperature	[ºC]	95	95	95	95	95	95
Test pressure	[bar]	4	4	4	4	4	4
Boiler class	[-]	5	5	5	5	5	5
Boiler efficiency	[%]	≤90	≤90	≤90	≤90	≤90	≤90
Single fuel load	[L]	190	290	350	350	400	400
Fuel	[-]	coal 5-25mm	coal 5-25mm	coal 5-25mm	coal 5-25mm	coal 5-25mm	coal 5-25mm
Power supply	[-]	~230V; 50 Hz	~230V; 50 Hz	~230V; 50 Hz	~230V; 50 Hz	~230V; 50 Hz	~230V; 50 Hz
Power consumption at boiler nominal power	[W]	350	350	350	350	400	400
Temperature controller setting range	[ºC]	60-85 (1 at a time)	60-85 (1 at a time)	60-85 (1 at a time)	60-85 (1 at a time)	60-85 (1 at a time)	60-85 (1 at a time)
Required chimney flue	[Pa]	20	23	23	35	38	40
Flow resistance ΔT. = 20K	[mbar]	1,19	1,75	3,80	7,45	15,47	34,24
Flow resistance ΔT. = 10K	[mbar]	5,47	7,03	12,33	29,83	60,88	136,98
Boiler weight	[kg]	448	510	535	551	785	935

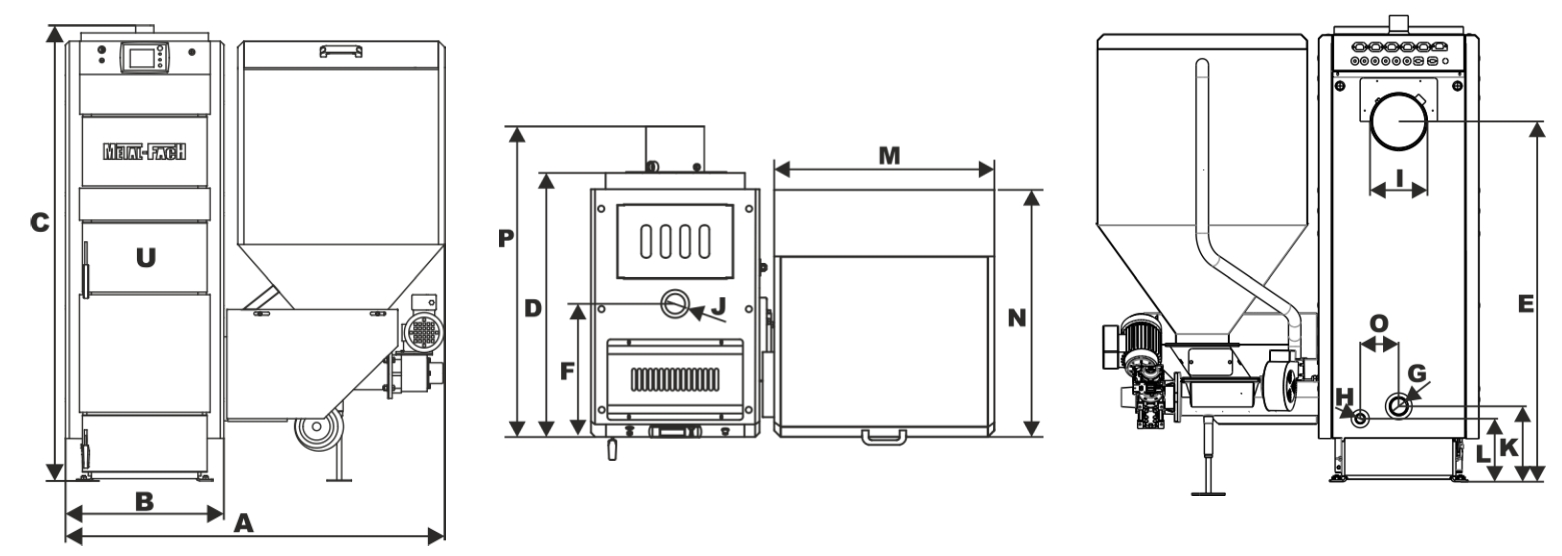

TYP	SEG - 14	SEG - 17	SEG - 28	SEG - 38	SEG - 50	SEG - 75
A	1250	1250	1250	1290	1443	1505
B	520	520	520	570	686	793
C	1220	1415	1474	1474	1668	1440
D	758	793	845	845	980	1175
E	908	1104	1165	1165	1305	1420
F	347	356	409	409	534	545
G	1,5"	1,5"	1,5"	1,5"	1,5"	1,5"
H	3/4"	3/4"	3/4"	3/4"	3/4"	3/4"
I	180	180	180	180	220	220
J	1,5"	1,5"	1,5"	1,5"	1,5"	1,5"
K	213	247	247	247	324	350
L	213	207	207	207	178	175
M	680	680	680	680	680	680
N	693	716	760	760	850	850
O	125	125	125	125	175	220
P	865	905	954	954	1135	1413
U	338x198	338x198	338x198	338x198	488x198	600x264
