| Parameters | Unit | Type of boiler |
| - | - | SEP |
| Nominal thermal output | [kW] | 16 |
| Boiler power range | [kW] | 4,8 - 16,0 |
| Heating surface | [m2] | 2,05 |
| Heatable area | [m2] | 170 |
| Boiler water capacity | [L] | 100 |
| Maximum working pressure | [bar] | 1,5 |
| Maximum working temperature | [ºC] | 95 |
| Test pressure | [bar] | 4 |
| Boiler class | [-] | 5 |
| Boiler efficiency | [%] | ≤92 |
| Single fuel load | [L] | 400 |
| Fuel | [-] | Pellets |
| Power supply | [-] | ~230V; 50 Hz |
| Power consumption at boiler nominal power | [W] | 400 |
| Power consumption at boiler start-up | [W] | 1100 |
| Temperature controller setting range | [ºC] | 60-85 (co 1°C) |
| Required chimney flue | [Pa] | 23 |
| Flow resistance ΔT. = 20K | [mbar] | 0,09 |
| Flow resistance ΔT. = 10K | [mbar] | 0,36 |
| Boiler weight | [kg] | 335 |

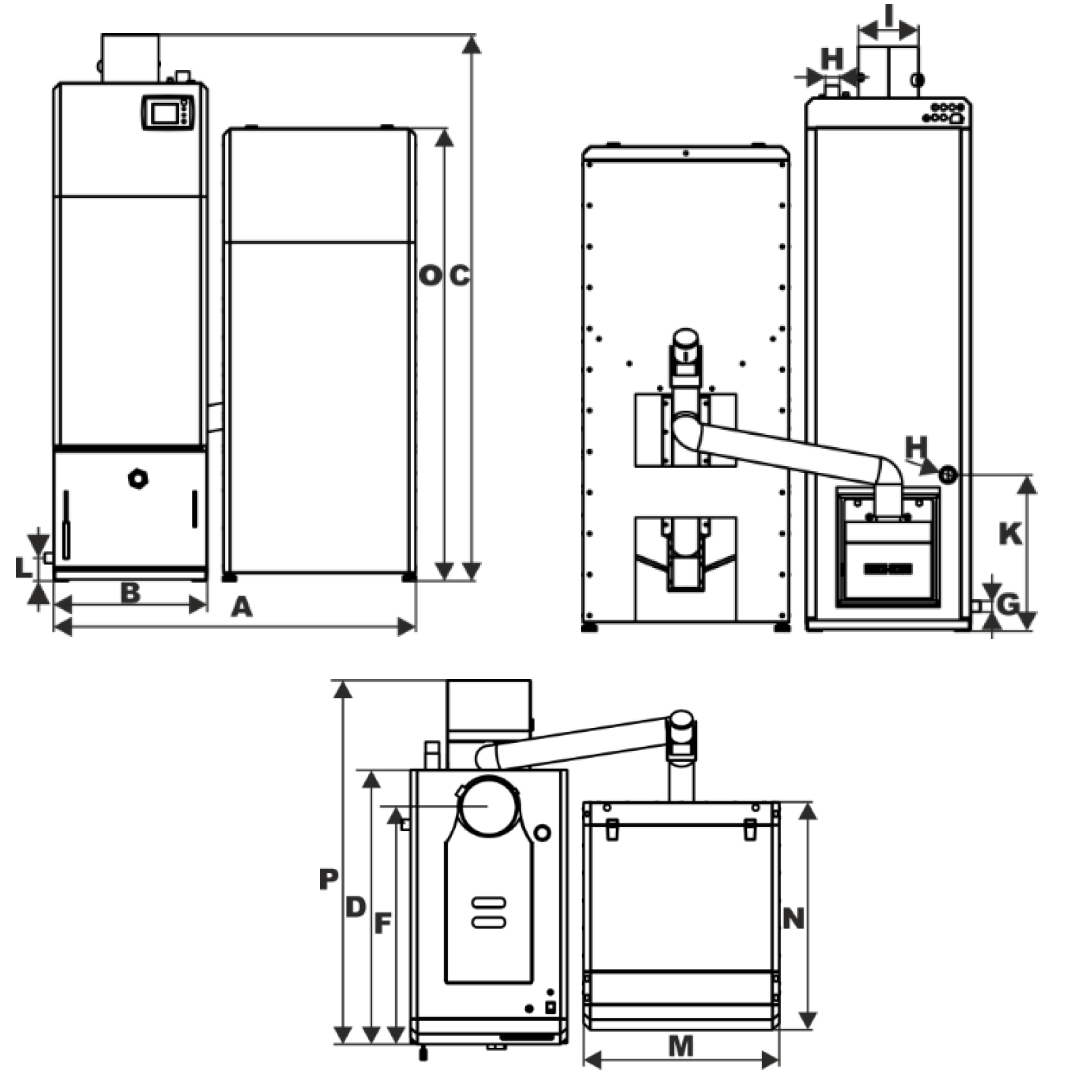

| TYP | SEP |
| A | 1130 |
| B | 482 |
| C | 1710 |
| D | 829 |
| E | 1418 |
| F | 728 |
| G | 0,75" |
| H | 1,25" |
| I | 180 |
| J | 451 |
| K | 671 |
| L | 67 |
| M | 600 |
| N | 700 |
| P | 1118 |
| Power [ kW ] | 16 |
| Efficiency [ % ] | 92 |
| EcoDesign | pellets |
| Class | 5, BImSchV 2 |
| Weight [ kg ] | 335 |
| Height [ mm ] | 1,710 |
| Width [ mm ] | 1,130 |
| Depth [ mm ] | 1,118 |
| Exhaust gas pipe size [ mm ] | 180 |
| Feeder capacity [ dm³ ] | 400 |
| Water capacity [ L ] | 100 |
| Outlet and inlet supply size [ inch ] | 5⁄4'' |
| Installation | Vertical, Floor, Internal |
| Max. working temperature [ °C ] | 95 |
| Max. operating pressure [ bar ] | 1.500 |
| Grate bar | NO |
| Feeder | steel, with feeding screw |
| Ventilator | Pressure |
| Burner | Chute |
| Lambda probe | OPTIONAL |
| Steering | OPTIONAL, remote, via web browser, via the Internet |
| Mains voltage [ V ] | 230 |
| Fuel | pellets, YES |
| Warranty | 5 years |
