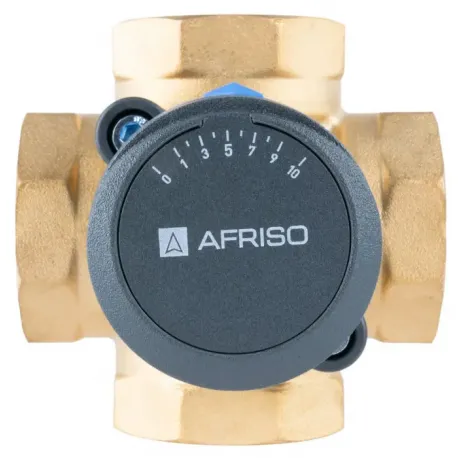

4-Way Rotary Mixing Valve ARV 485 ProClick, DN32, Rp1 1/4", Kvs 16

Application

• Used in heating installations with solid fuel boilers to raise the return temperature to the boiler.
• Installed on the supply side of the installation as a valve with dual mixing.
• Mixes in appropriate proportions the streams of the medium flowing into the installation and returning to the boiler.
• For continuous boiler protection against too low return temperature, it is necessary to automate the valve by installing the ARM ProClick actuator connected to an appropriate controller.

Description

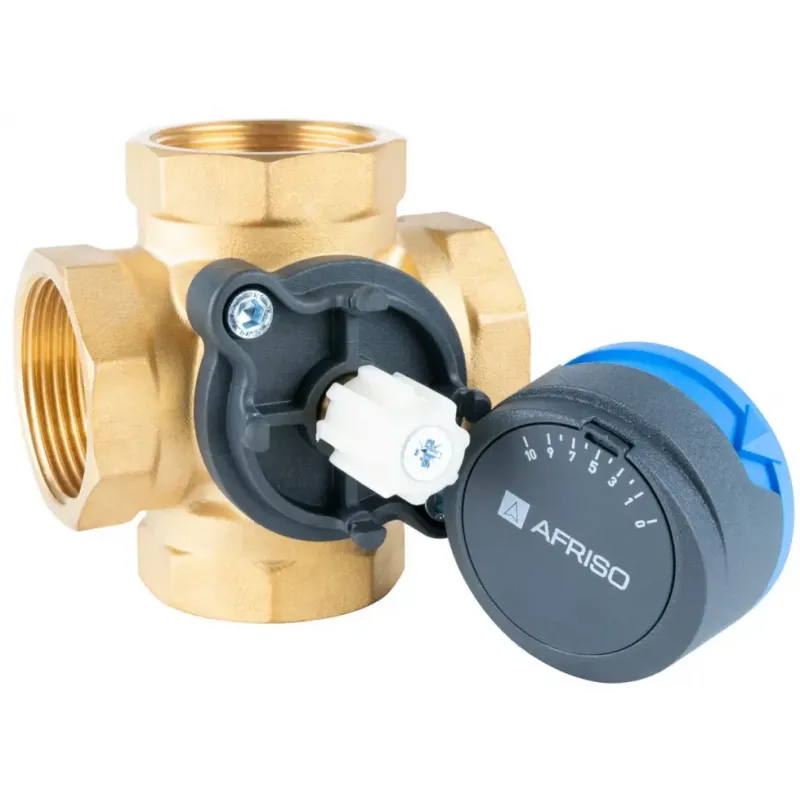

• Equipped with the ProClick system - direct actuator mounting on the valve without the use of tools.
• Body made of brass with internal threads.

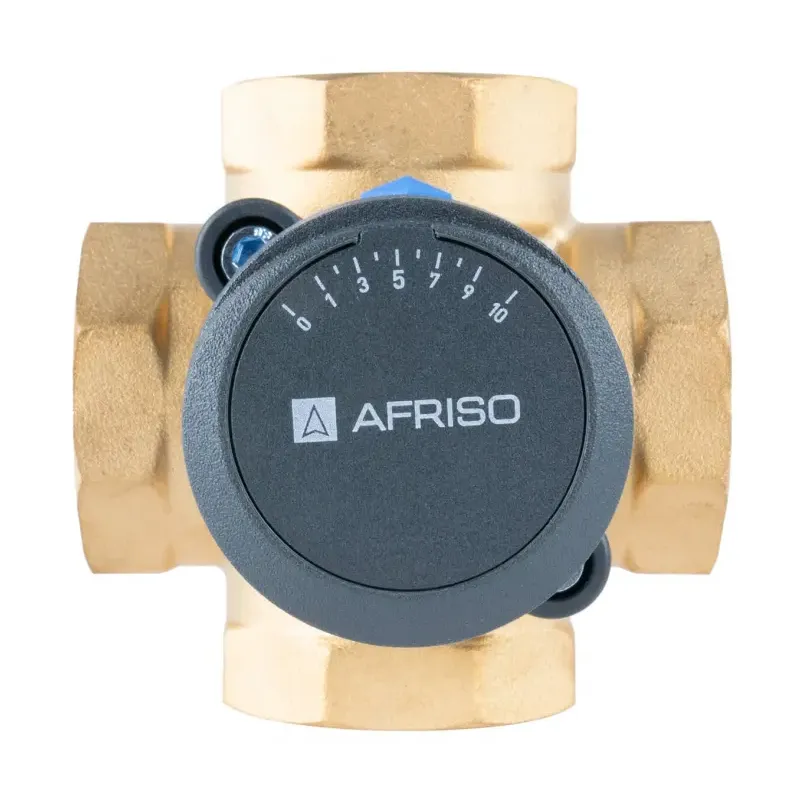

• Convenient knob with angle rotation limiters.
• Clear two-sided scale (from 0 to 10 and from 10 to 0).
• Indicator of the current position of the valve disc.

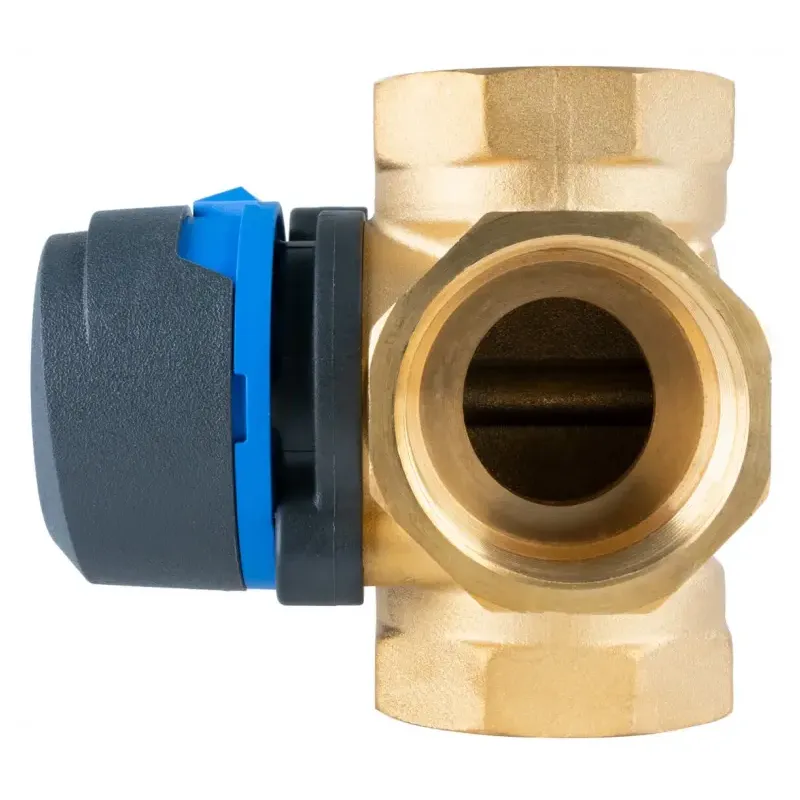

• Connections in the form of an octagon for easy installation.

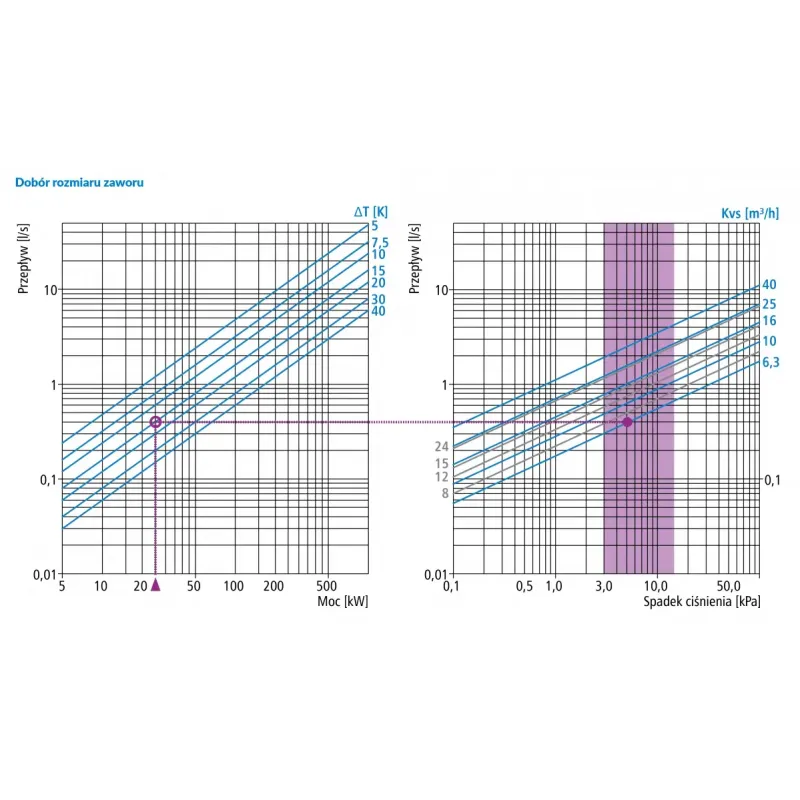

Technical Data

• DN: 32
• Kvs: 16 m³/h

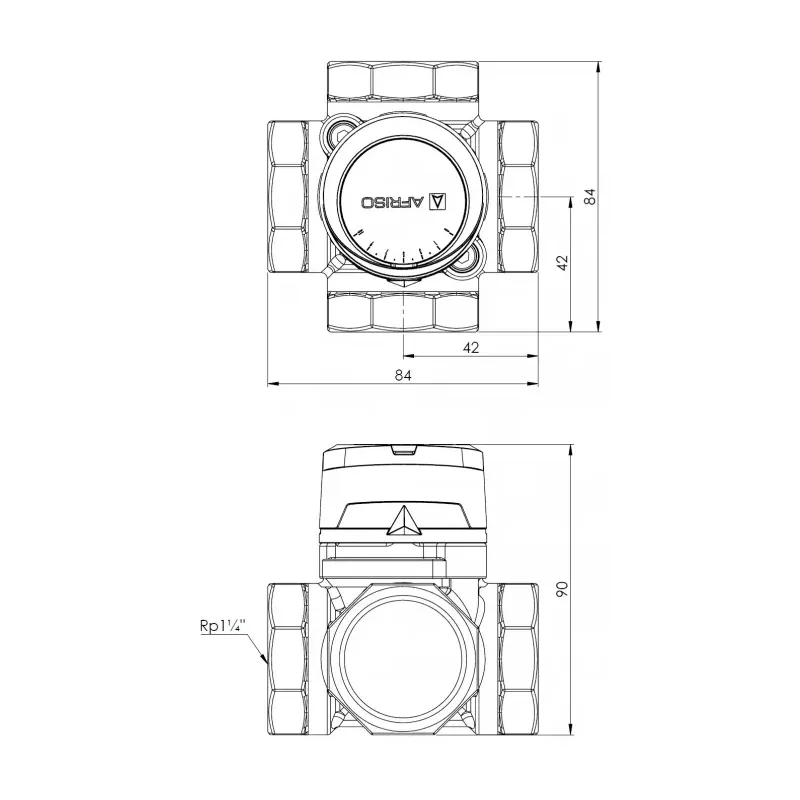

• Connection: Rp1¼''
• Body Material: Brass
• Maximum Temperature: 110°C
• Maximum Pressure: 10 bar
