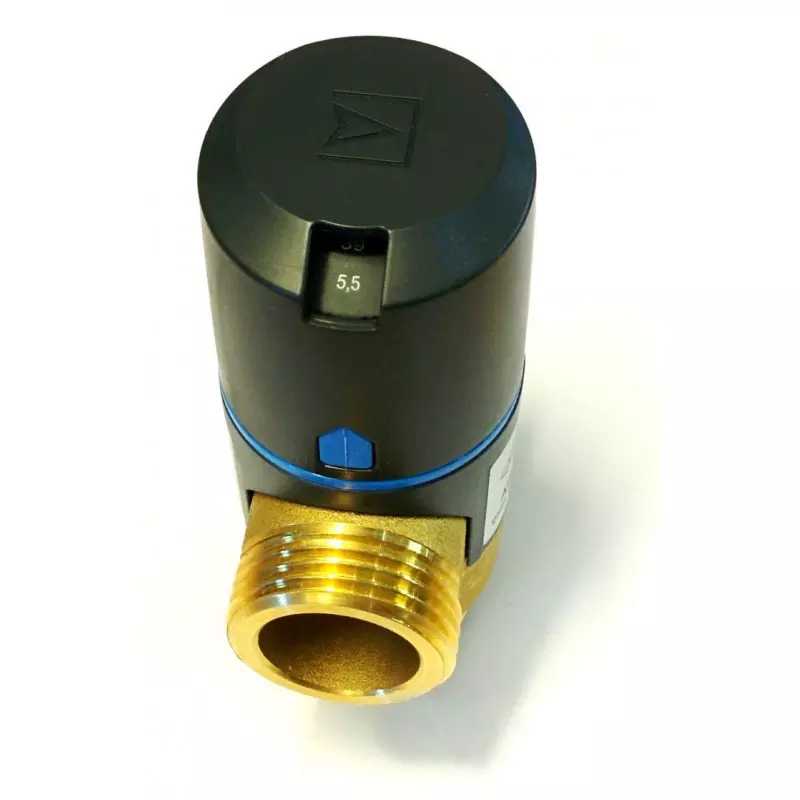

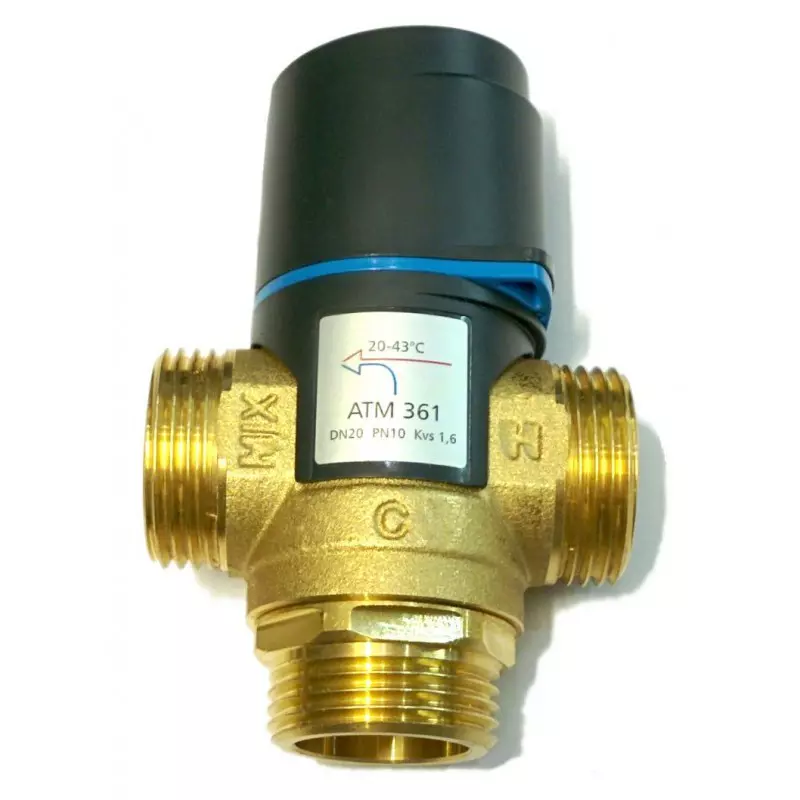

Thermostatic mixing valve AFRISO ATM 361
Parameters
- temperature regulation range: 20 - 43 潞C
- DN:20
- Kvs: 1,6 m3/h
- maximum temperature: 90 潞C
- maximum pressure: 10 bar
| Setting | Temperature range |
| 1 | 20 潞C |
| 2 | 25 潞C |
| 3 | 29 潞C |
| 4 | 33 潞C |
| 5 | 37 潞C |
| 6 | 43 潞C |
Technical data
| Parameter / part | Value / Material |
| Static pressure | max 10 bar |
| Dynamic working pressure | max 5 bar |
| Working temperature | max 90 潞C (temporarily 110 潞C) |
| Set of settings | 20 - 43 潞C |
| Kvs | 1,6 m3/h |
| Accuracy of regulation | 卤2 潞C |
| Body | DZR brass resistant to dezincification |
| Glycol concentration | max 50% |
| Correct flow required for proper valve operation | min 6 l/min |

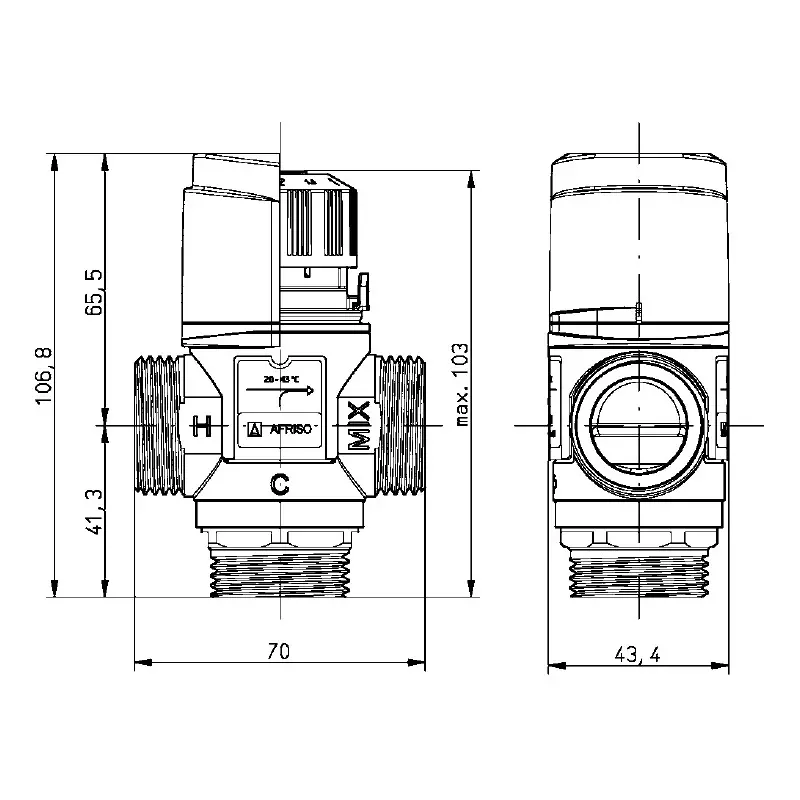

Data sheet
| Weight [ kg ] | 0,49 |
| Height [ mm ] | 106.800 |
| Width [ mm ] | 70 |
| Depth [ mm ] | 43.400 |
| Thread type | 1'' |
| Installation | Horizantal, Vertical, Oblique, Internal |
| Max. working temperature [ 掳C ] | 90 |
| Max. operating pressure [ bar ] | 10 |
| Warranty | 3 years |
| Flow coefficient kv [m3/h] | 1.6 |
