The set includes a door sensor, remote control and mounting panel.
TECHNICAL DATA
| Technical data | Unit | AERIS 100E-1P | AERIS 150E-1P | AERIS 200E-1P |
| PRODUCT CODE | AC100E-1P | AC150E-1P | AC200E-1P | |
| DIMENSIONS | mm | 1000 x 195 x 265 | 1500 x 195 x 265 | 2000 x 195 x 265 |
| VOLTAGE | V/Hz | 230~50 | ||
| MAXIMUM PERFORMANCE OF THE MOTOR | W | 180 | 230 | 350 |
| THERMAL POWER | kW 1 Gang kW 2 Gang kW 3 Gang | 2 4 6 | 3,3 6,7 9,4 | 4,6 9,4 14 |
| MAXIMUM AIR SPEED | m/s | 8,5 | ||
| VOLUME | dB HI dB LO | 57 55 | 59 557 | 61 59 |
| MAXIMUM AIRFLOW | m3/H | 1200 | 1900 | 2800 |
| WEIGHT NET | kg | 15,5 | 20,5 | 26 |

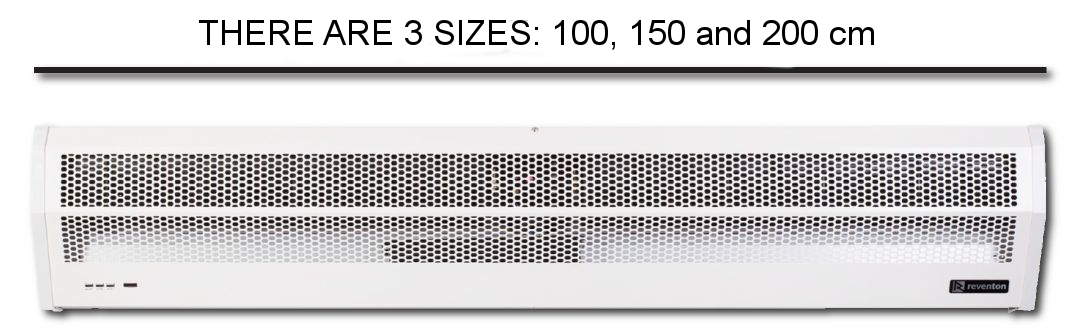

DIMENSIONS
| MODEL | A | B | E | F | G | H |
| AERIS 100E-1P | 1000 | 440 | 90 | 105 | 195 | 265 |
| AERIS 150E-1P | 1500 | 840 | ||||
| AERIS 200E-1P | 2000 |
Minimum diameter of wires
| Power | SINGLE PHASE ( 230V~, MAIN LINE : L, N) | ||||||
| Heater power [kW] | 3 | 4 | 5 | 6 | 8 | 10 | 14 |
| Main line [mm2] | 1,5 | 2,5 | 2,5 | 4,0 | 6,0 | 10 | 10 |
| Earth line [m2] | 0,75 | 1,0 | 1,0 | 1,5 | 2,5 | 2,5 | 4,0 |
Data sheet
| Height [ mm ] | 265 |
| Depth [ mm ] | 195 |
| Installation | Horizantal, Wall, Internal |
| Mains voltage [ V ] | 230 |
| Warranty | 2 years |
