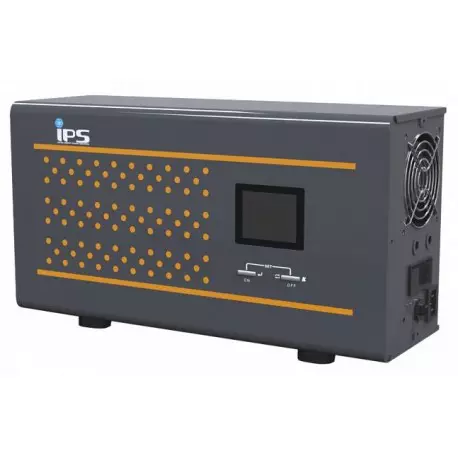

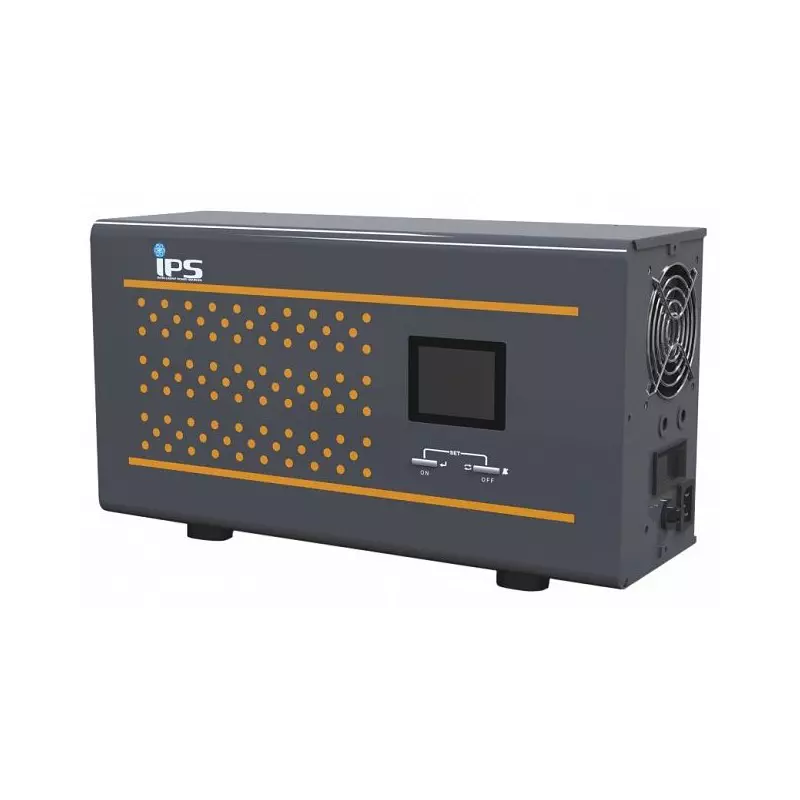

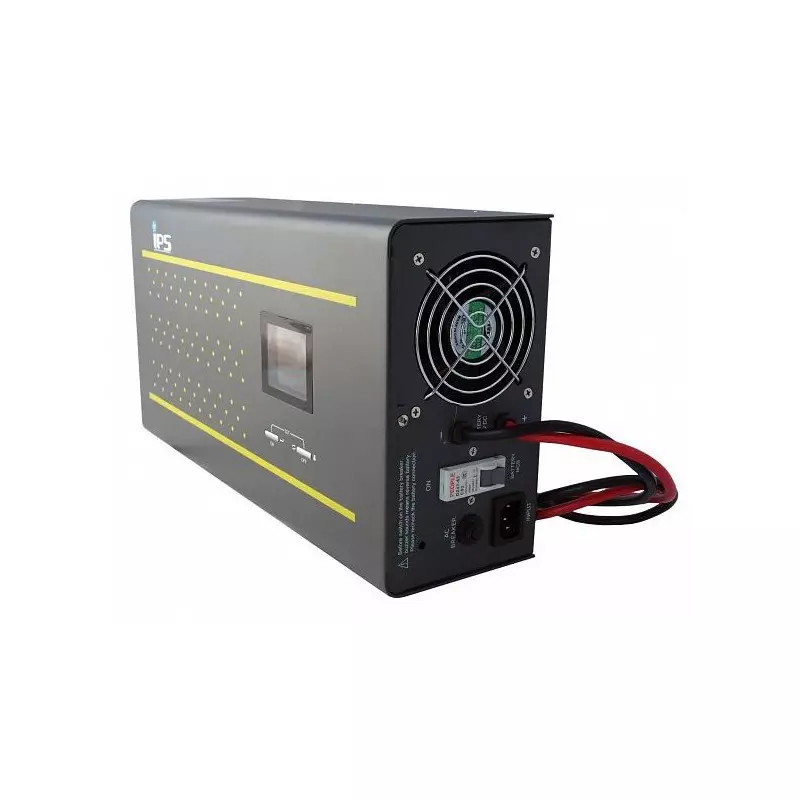

Inverter IPS300SIN-WM with UPS function
Features:
- True sine output wave
- Standalone metal case
- Synchronized output frequency with mains
- Auto battery charging
- Microprocessor control unit, output voltage THD < 5%
- Phase line transfer from input to output during mains mode
- Cold start
- Suitable with: resistance load, motor load, capacity load,
- LCD menu display
- Overcurrent protection 150% (450W, 900W)
- Eco mode, (standby mode 5W)

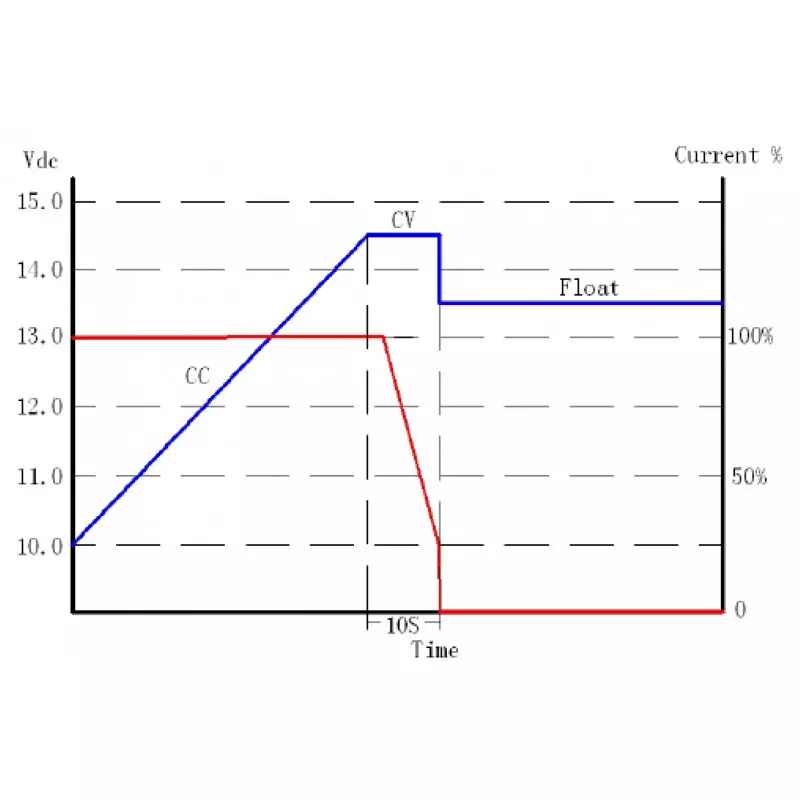

- 3-stage charging current, settable on LCD MENU
- Backup time according to connected AGM batteries
- Quick installation
- Low-frequency toroidal transformer
Application:
- PC computers,
- home wi-fi systems,
- lighting,
- garage gates,
- cctv,
- access control,
- heating control systems,
- measurement systems,
- motors.
| MODEL | IPS600-SIN-WM |
| Output power (apparent/active) | 600VA/600W |
| INPUT | |
| Rated input voltage | 230Vac |
| Power factor | 1,0 |
| OUTPUT | |
| Output voltage | Mains mode: 199Vac – 254Vac, Battery mode: 230Vac +/- 5%, THD max 5% |
| Frequency | 50/60Hz ± 10% (auto-detect)) |
| Output waveform | Pure sine wave |
| Transfer time | Max 10 ms |

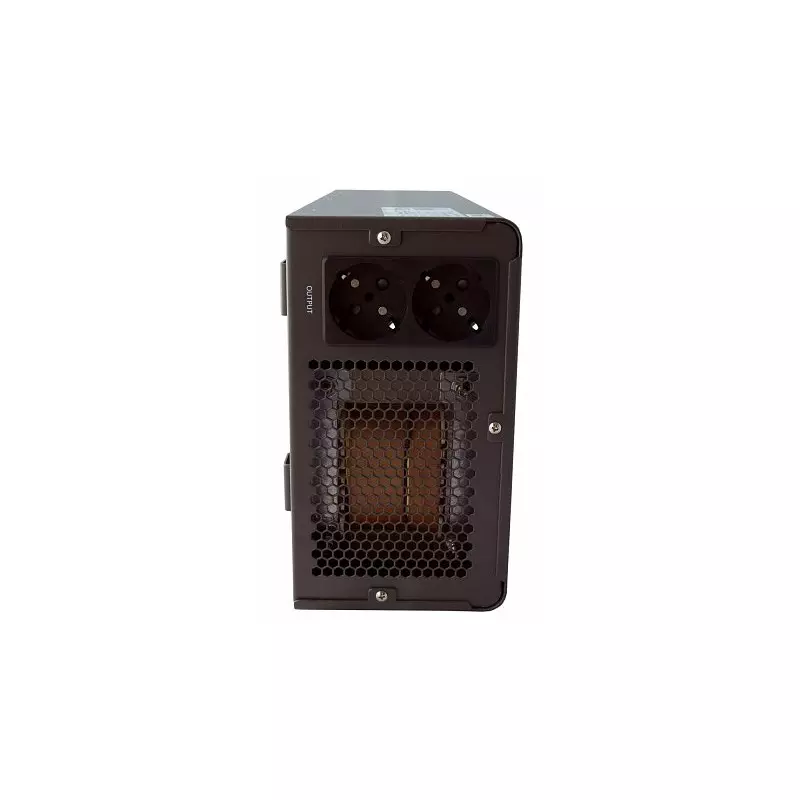

| Output sockets | 2pcs (CEE 7/3 Schuko) |
| EFFICIENCY | |
| Efficiency | >80% |
| Overload in mains mode | 105% by 300s, 110% by 120s, 125% by 60s, 150% by 10s, transfer to BYPASS mode |
| Overload in battery mode | 105% by 300s, 110% by 60s, 125% by 10s, 150% by 0,7s, system shut-down |
| BATTERY | |
| Working voltage | 13,7Vdc |
| Charger current | 1 – 30A * (implicitly 20A) |
| Hold time (min.)100%/75%/50% | It depends on the connected batteries |
| Equalizing voltage | 14,1 Vdc |
| Floating voltage | 13,5Vdc |
| End of discharge (default) | 10,2Vdc |
| End of discharge level | 9,6-11,5Vdc |
| Suitable battery capacity | 26….400Ah |

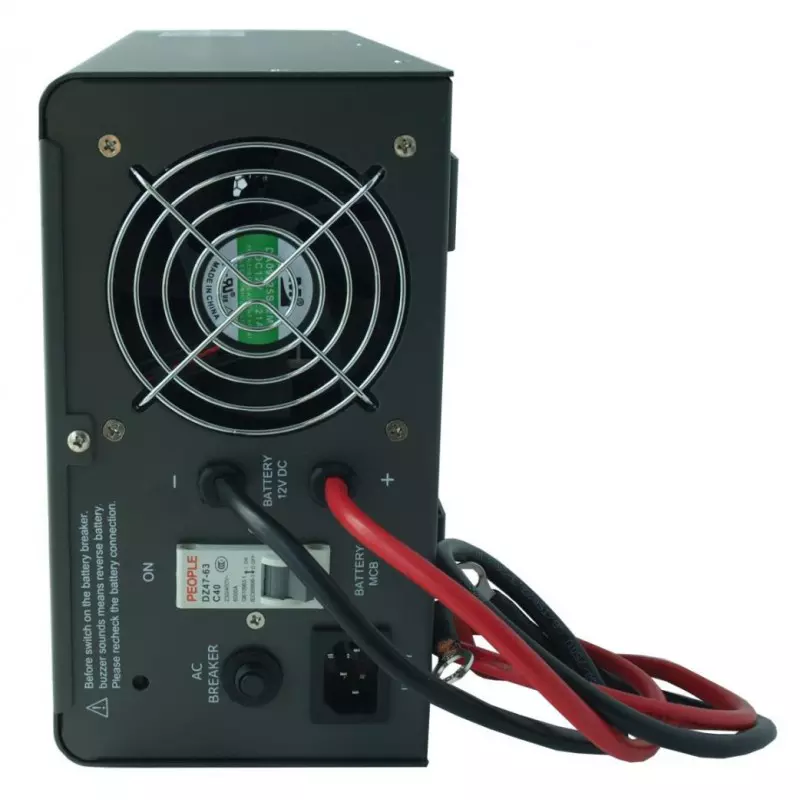

| Battery wires length | 0,5m |
| Battery wires cross-section | 6 mm2, M10 |
| PROTECTIONS | |
| Full protections | Overload, overcurrent, thermal, battery protection |
| Weight netto/brutto (kg) | 11,3/12,3 |
| Lenght/width/height (mm) w / d / h | 293x280x160 |
| Box lenght/width/height (mm) | 370x355x235 |
Data sheet
| Power [ kW ] | 300 |
| Weight [ kg ] | 8.3 |
| Height [ mm ] | 160 |
| Width [ mm ] | 293 |
| Depth [ mm ] | 280 |

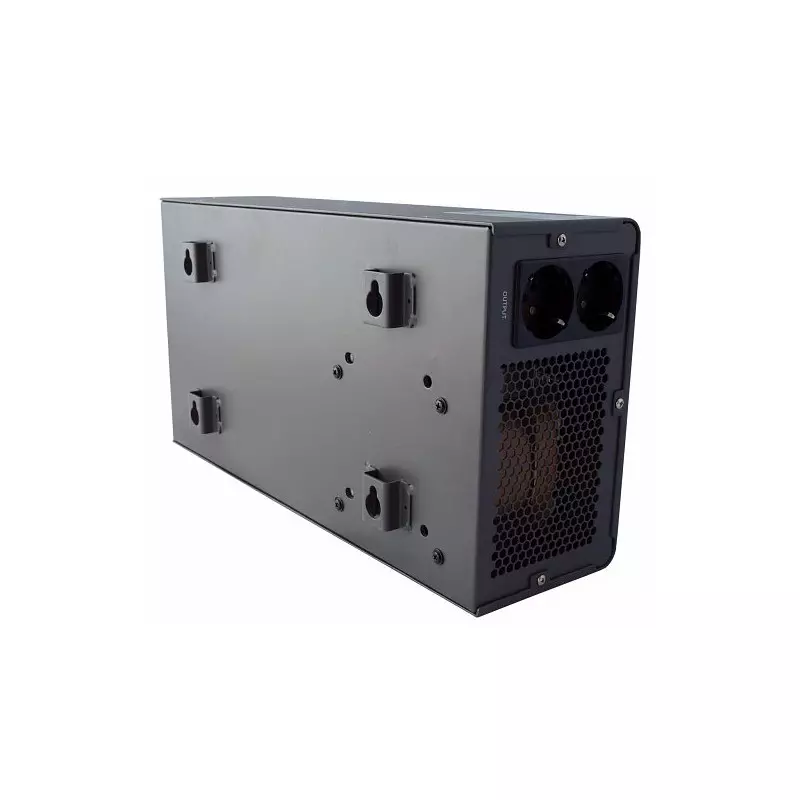

| Installation | Floor, Wall, Internal |
| Mains voltage [ V ] | 230 |
| Warranty | 2 years |
