The ventilator is designed to blow air into the furnaces of central herating boilers. It can also be used for general ventilation facilities and technological equipment. It can work in temperatures between 0 and 40 ºC.

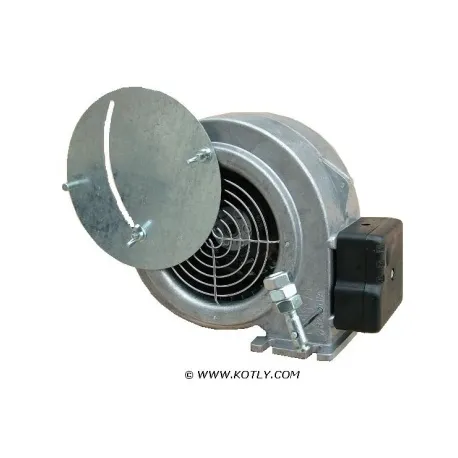

The fan (consisting of an engine with an exterior rotor) is situated in a two-part aluminium housing. The impeller made of polyamide is mounted directly on the motor shaft. The inlet is protected by metal netting. The outlet end is made of a flange with holes for mounting.

Technical Parameters

• Engine Type: RF2C-140/059 K 172
• Rotanional speed: 1350 rpm
• Voltage: 230 V / 50 Hz
• Power consumption: 100 W
• Max. compresion: 355 Pa
• Max. expenditure: 380 m3/h
• Weight: 2,5 kg
