The boiler with very low emission exhaust TEKLA Draco Eco D

The Draco Eco D boiler has a modern heat exchanger. The ECO series uses a unique design of pellet burner and wood chips. The burner burns cereal grains just as well. The long service life of the boiler heat exchanger is ensured by high quality, certified steel with a thickness of 8 mm. The set includes a controller with a large, transparent LCD screen which ensures proper boiler operation.

The basic fuel for the boiler is pellets.

The boiler has a five-year warranty of tightness of the boiler exchanger, is made of high-quality 8mm thick steel. Draco Eco D boiler is characterized by simple and fast service and maintenance.

As for the feeder boiler, there is a full modulation of boiler operation and work in the second generation Fuzzy Logic algorithm. The advanced controller allows you to connect a room thermostat, set the operating time of all heating circuits independently of each other thanks to the function: time program. The return temperature can be controlled by controlling the actuator on the four-way valve.

It is possible to expand (for an additional charge) control of up to 16 heating circuits and 2 hot water tanks. It is possible to add a lambda probe to the boiler (for an additional fee). Cooperation with solars after installation of the CAN bus.

Controlling the c.o boiler controls are available after purchase of an accessory, eg GSM module (control via a cellular network) or a modern, room-mounted room controller

Technical Data

Parameters		Unit	DRACO ECO D 16
Nominal Power	Wood chips	kW	15
Nominal Power	Pellets	kW	16,5
Efficiency	Wood chips	%	88
Efficiency	Pellets	%	92
Power adjustment range	Wood chips	kW	4,5 - 15
Power adjustment range	Pellets	kW	4,9 - 16,5
Energy class		-	A+
Weight (boiler/container)		kW	460/229
Heating surface		m²	3,2
Water capacity		m³	85
Recommended chimney draft		Pa	15 - 25
Max. Operating pressure of the heating medium		bar	1,5
Dimensions of the boiler with tank	Width	mm	2600
	Height	mm	1710
	Depth	mm	1235
The diameter of the exhaust outlet		mm	160
container capacity		dm³	1000

Construction and dimensions of the TEKLA Draco ECO D central heating furnace

DRACO ECO D 16
A	2600	B	1235
A1	530	B1	655
A2	1215	B2	120
A3	80	B3	900
A4	265	C	1710
A5	80	C1	1290
A6	2000	C2	1500
A7	1245	C3	75
C4	65	C5	180
C6	1670	-	-

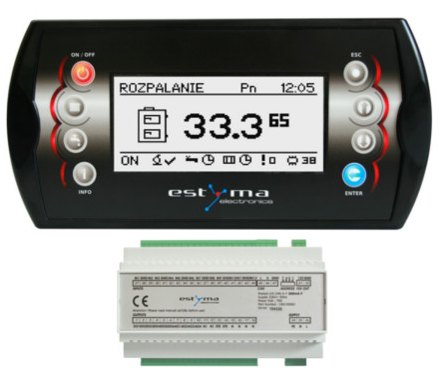

Controller ESTYMA IGNEO

Advantages of the controller

automatic firing and extinguishing of the boiler
cleaning the burner before each lighting and extinguishing the boiler
the possibility of weekly setting of the night temperature in the rooms
possibility of weekly setting of DHW temperature
control of the combustion process thanks to the Fuzzy Logic II function. Lowers the amount of coal be burned up to 20%
the possibility of remote control over device thanks to internet modem and GSM (option at extra cost)
the ability to save data on a computer (graphs, amount of fuel burned, etc.) thanks to the use of an internet module
possibility of expanding with further heating circuits without the need to replace the controller
chart of boiler operation and torch power from the last 24 hours of its operation
burner flame control using a photosensor
automatic start after power failure
support for up to 16 heating circuits and thus actuators on 4-way valves

Technical Data

Power Supply	~230 V / 50 Hz ±10%
power consumption (module)	<6 VA
humidity	5-95 % without condensation
Energy class	A
load of outputs - c.o the pump	100 W
load of outputs - DHW the pump	100 W
load of outputs – igniter	400 W
load of outputs – blower	150 W
Sensors	NTC 10kΩ B25/85=3877K±0,75% VISHAY BC components
accuracy of temperature measurements	±4 ºC
ambient temperature	0-60 ºC
load of outputs – burner feeder	150 W
load of outputs – container feeder	150 W

Data sheet

Power [ kW ]	16.500
Efficiency [ % ]	92
Class	5, A+
Weight [ kg ]	689
Height [ mm ]	1,710
Width [ mm ]	2,600
Depth [ mm ]	1,235
Distance from flooring to exhaust gas pipe base [ mm ]	1,205
Exhaust gas pipe size [ mm ]	160
Feeder capacity [ dm³ ]	1000
Water capacity [ L ]	85
Outlet and inlet supply size [ inch ]	⁶⁄₄''
Wall thickness [ mm ]	8
Installation	Vertical, Floor, Internal
Max. operating pressure [ bar ]	1.500
Min chimney draft [ Pa ]	15
Feeder	YES
Ventilator	Pressure
Burner	YES
Lambda probe	OPTIONAL
Sensor	Feeder temperature, central heating temperature, return water temperature
Fuel	pellets, wood chips
Warranty	5 years for tightness of the heat exchanger
Other	automatic fuel igniter
