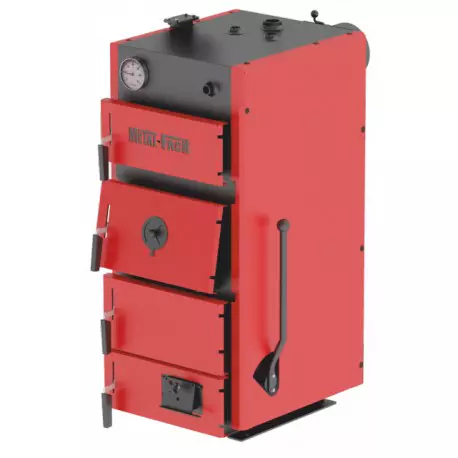

SOKOL steel boilers SE MAX II series are designed for water heating systems in houses, farms, farm buildings and retail outlets.

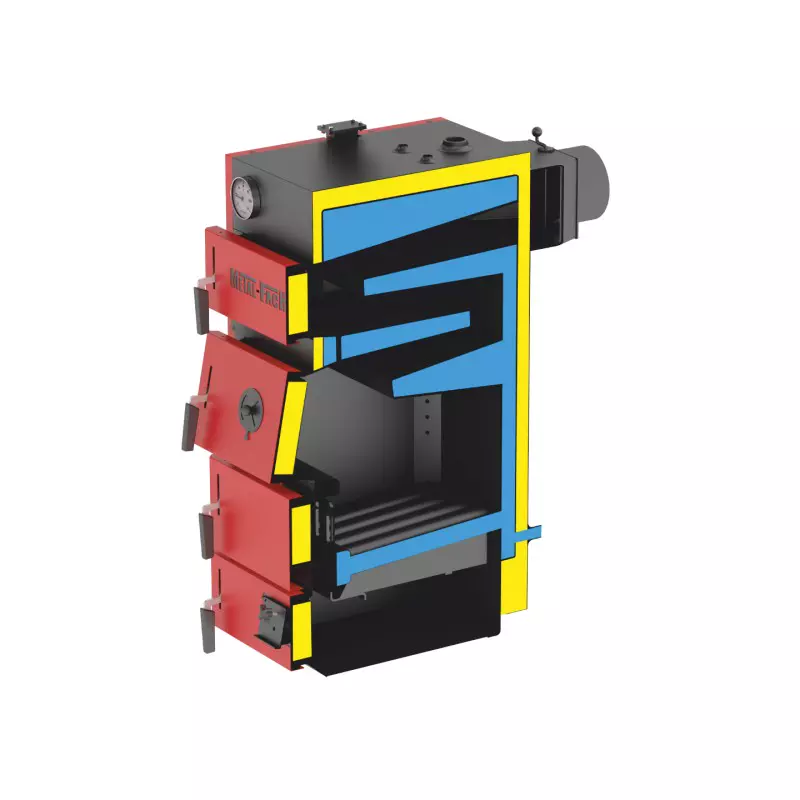

The fuel is leafy wood or pea coal. Body is made of boiler steel of a thickness of 6 mm (for the elements having contact with the flue gases) and 4 mm (for other components). SE MAX II Series boilers are equipped with a water grate.

Boilers for use in open central heating with gravity or forced water systems, having safeguards.

SE MAX II Series boilers are suitable for fan or draft regulator.

Metal%20Fach%20MaxII%20Wymiary

Metal%20Fach%20MaxII%20Tabela

Data sheet

Power [ kW ]	35
Power [ kW ]	20
Power [ kW ]	30
Power [ kW ]	25
Weight [ kg ]	395
Weight [ kg ]	330
Weight [ kg ]	370
Weight [ kg ]	350
Width [ mm ]	630
Width [ mm ]	510
Width [ mm ]	580
Width [ mm ]	530
Loading door size [ mm x mm ]	388 × 238
Loading door size [ mm x mm ]	338 × 238
Loading door size [ mm x mm ]	438 × 238
Loading door size [ mm x mm ]	318 × 238
Water capacity [ L ]	93
Water capacity [ L ]	87
Water capacity [ L ]	111
Water capacity [ L ]	71
Min chimney draft [ Pa ]	23
Min chimney draft [ Pa ]	23
Min chimney draft [ Pa ]	25
Min chimney draft [ Pa ]	23
Efficiency [ % ]	81
Class	3
Height [ mm ]	1,256
Depth [ mm ]	804
Exhaust gas pipe size [ mm ]	180
Max. working temperature [ °C ]	95
Max. operating pressure [ bar ]	1.500
Fuel	wood, black coal
Warranty	5 years for tightness of the heat exchanger
