Control Panel

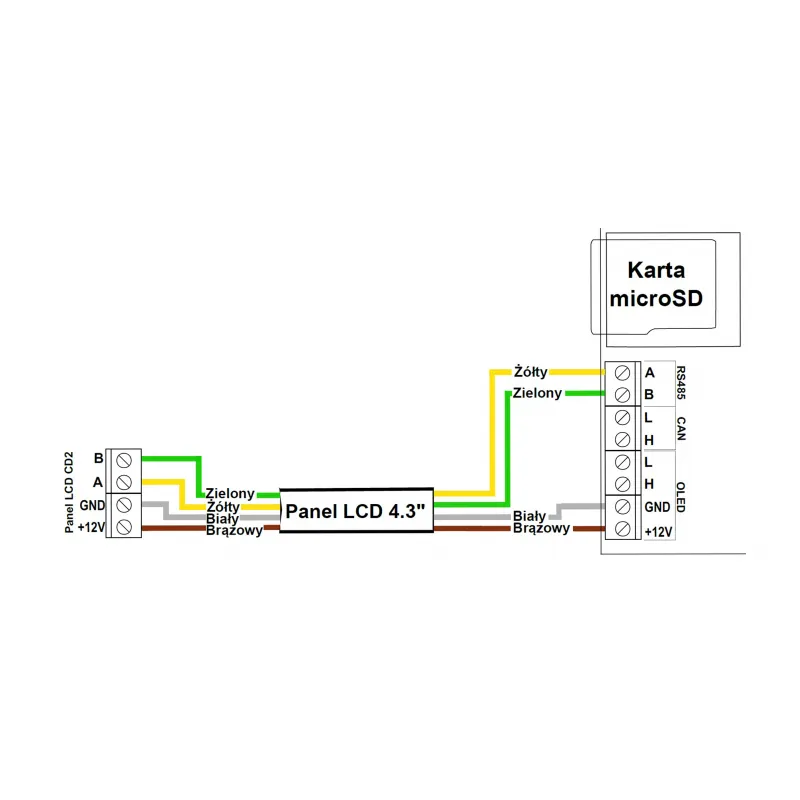

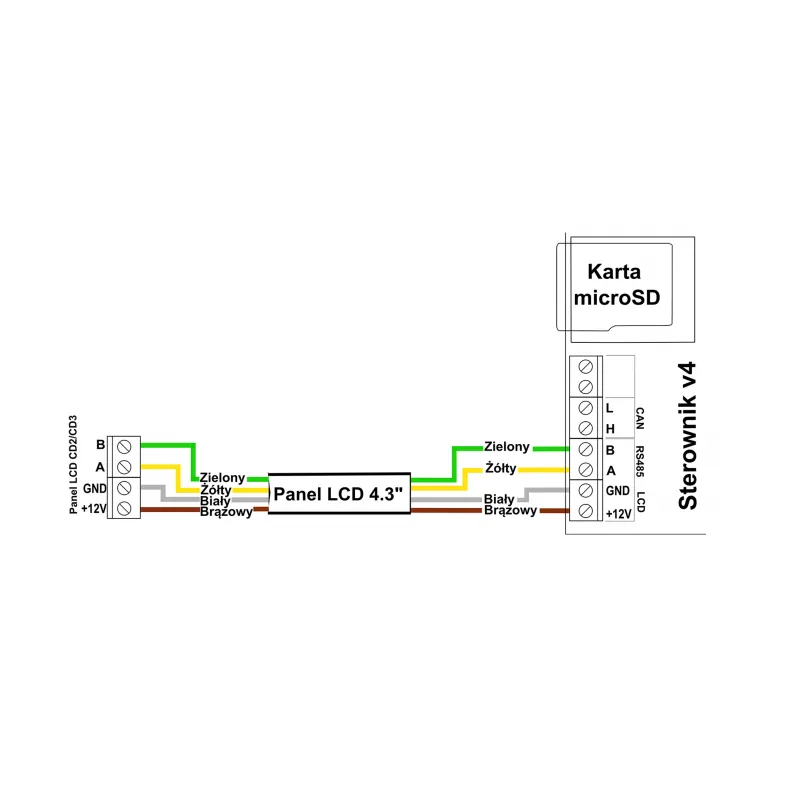

The control panel is designed for eCoal.pl v3.5/v4, Pello v3.5/v4, and bruli.pl v3.5/v4 controllers. The minimum required software in the controller is 1.1.35.30 and newer. The display housing allows for installation in the boiler housing or wall mounting. A 4x0.25mm cable, 2m in length, is included in the set.

With one version 3.5 controller, only one 4.3" LCD panel type CD1/CD2/CD3 and one or more OLED GLASS/Standard panels can simultaneously cooperate. Only one panel can be powered from the controller; each subsequent one requires external power supply 12V DC/0.5A. If this panel is used as a second display in the controller, an external power supply is necessary. Version 4 controllers do not support OLED GLASS/Standard panels.

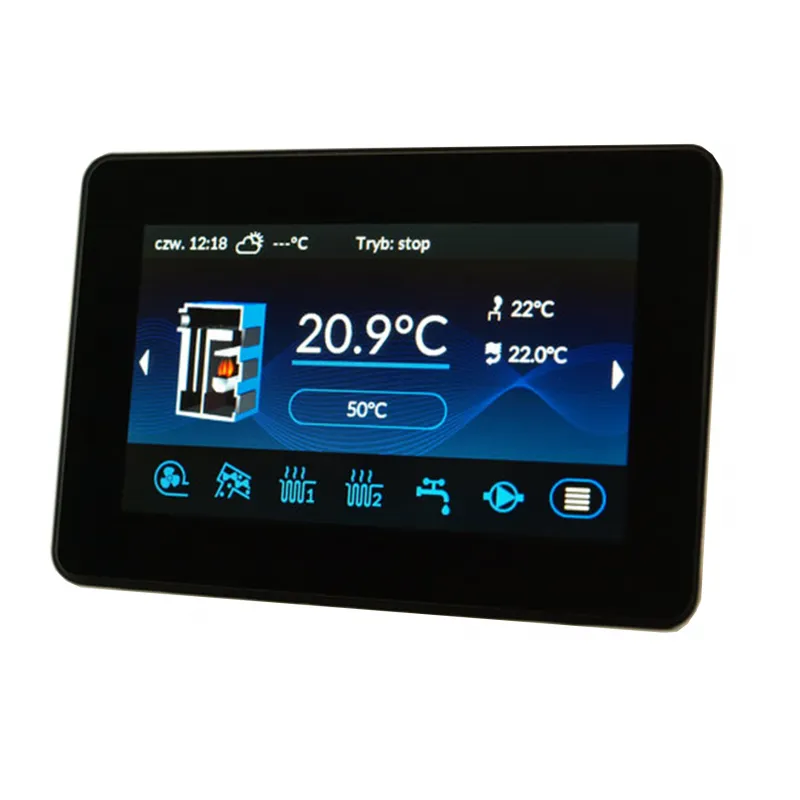

4.3" LCD Panel

• Type: CD3
• Power Supply: 12V DC +/-15%
• Maximum Current Consumption: 120mA
• Protection Level: IP20
• Permissible Ambient Temperature Range: from 5°C to 45°C without condensation
• Communication Interface: RS485
• Weight: 170g

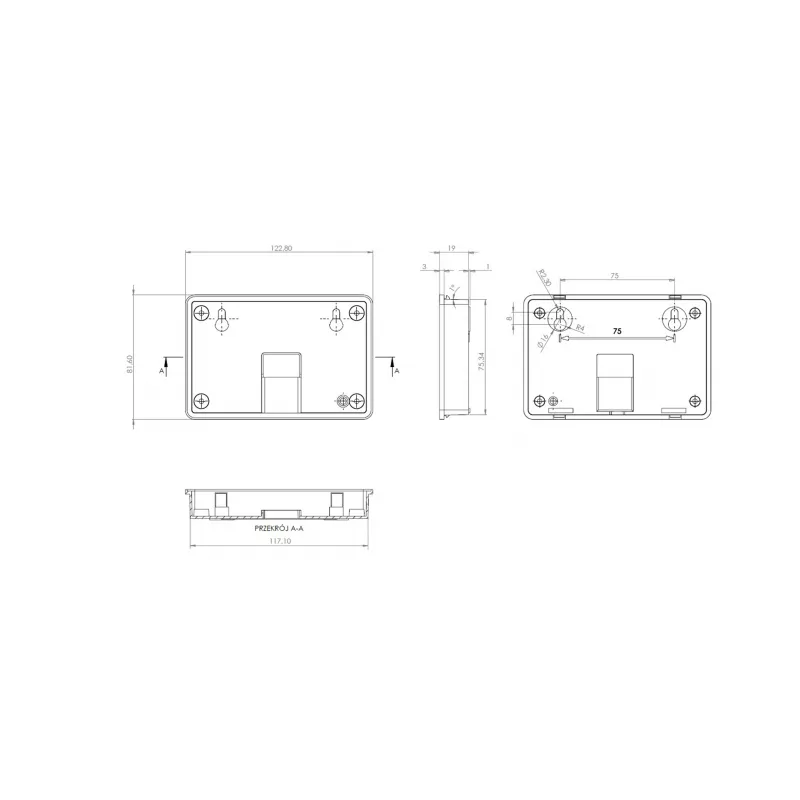

• Dimensions: 124mm x 82mm x 21mm
