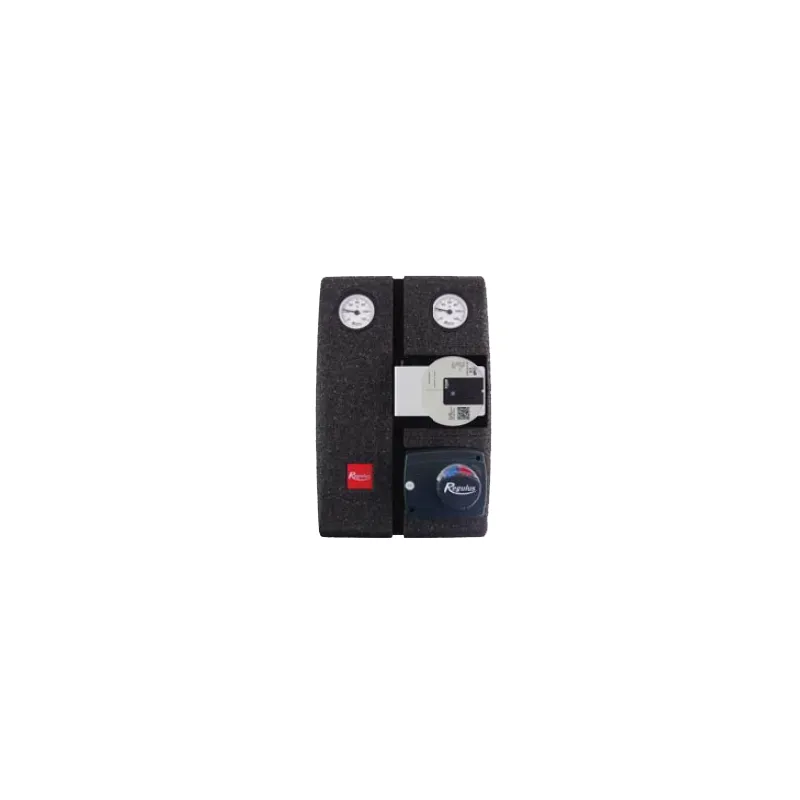

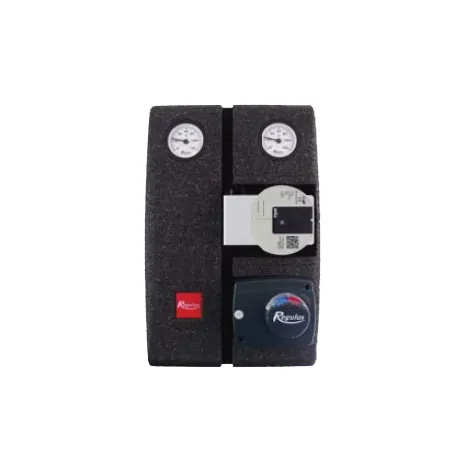

Pumping Group with Mixing Valve CSE 2 MIX F

A dual-pipe pumping group with a low-energy consumption circulation pump, a mixing valve with a three-stage controlled actuator, and basic heating system components enclosed in a compact thermal insulation casing.

It enables the closure of the heating circuit, temperature regulation, easy placement of the temperature sensor, and convenient service operation. The group includes a filter with a magnet, making it suitable for older systems with steel pipes.

Configuration: Outlet pipe to the right, non-adjustable.

Typical Applications:

For mixing heating circuit fluids or boiler operation. It can be installed on a wall, tank, or distributor.

Heating Line:

• 1” union with a nut.
• Mixing valve with electric actuator
• Low-energy consumption circulation pump
• Ball valve DN 20 with union and temperature sensor socket
• Thermometer 0-120°C

Return Line:

• 1” union with a nut
• Filter with a large mesh insert and magnet
• Ball valve with a check valve (with service opening option) and temperature sensor socket
• Thermometer 0-120°C

Technical Specifications:

• Connection dimensions: 1” F
• Operating fluid temperature: 5 - 95°C
• Pipe spacing: 125 mm
• Dimensions: 360 x 133 x 245 mm

Actuator:

• Type: AVC05
• Operation time: 120 s
• Torque: 5 Nm
• Power supply: 230 V 50 Hz

Pump Models:
