Two-way thermal release valve Regulus DBV2 - bifunctional

05664

8595222663925

Manufacturer: REGULUS
REGULUS

105,43 USD

Payment and delivery

Transport Costs: Individual calculation
(After placing your order we will send you a non-binding offer containing delivery costs.)

Payment methods for the goods:

Bank transfereligible for a 2% discount for orders from Poland (others without discount)
Cash on delivery – always without discount, available only in Poland and the Czech Republic (up to 8,000 PLN or 16,000 CZK, rest in bank trasfer)
P24 – operator’s payment gateway, no discount for orders from Poland, others +2%

Add to wishlist

Total Rating Total Rating:

0
0/5 - 0 reviews

View ratings
0 1 2 3 40
0 1 2 3 00
0 1 2 0 10
0 1 0 1 20
0 0 1 2 30

 Add Review View Reviews View Reviews
Loading...



Technical Data

  • OPENING TEMPERATURE: 97 ±2ºC
  • MAXIMUM TEMPERATURE: 110ºC
  • MAX. WORKING PRESSURE - HEATING WATER: 4 bar
  • MAX. WORKING PRESSURE - COLD WATER: 6 bar
  • PIPE CONNECTION: G 3/4" M
  • HEAT SOURCE CONNECTION: R 3/4" tapered thread
  • WEIGHT: 0,70 kg
  • Kvs 110ºC when both elements are opened: 2.0 m3/h
  • MAXIMUM BOILER POWER: 220 kW

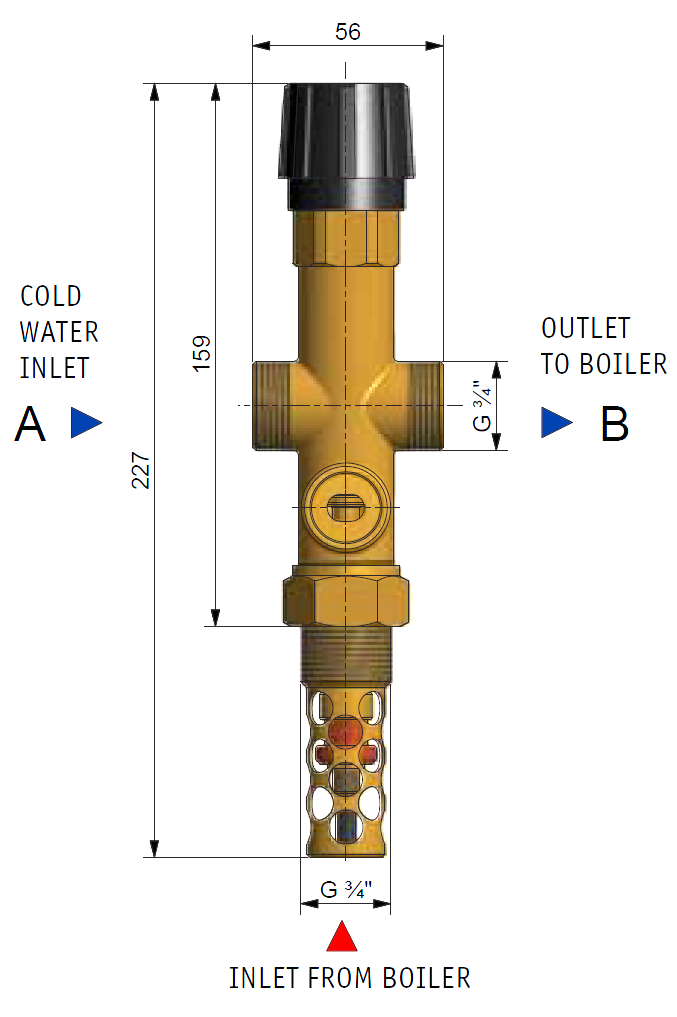

Regulus DBV2

Data sheet

Weight [ kg ]0.7
Height [ mm ]227
Outlet and inlet supply size [ inch ]34''
InstallationHorizantal, Vertical, Wall, Internal
Max. working temperature [ °C ]110
InsulationPolypropylene foam EPP, YES
Flow coefficient kv [m3/h]2.0
