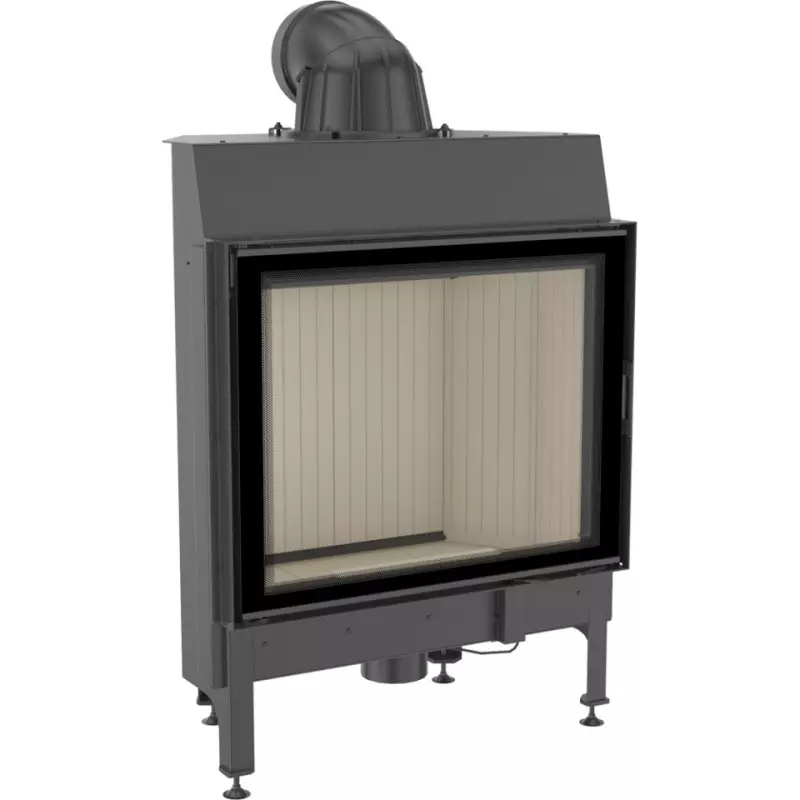

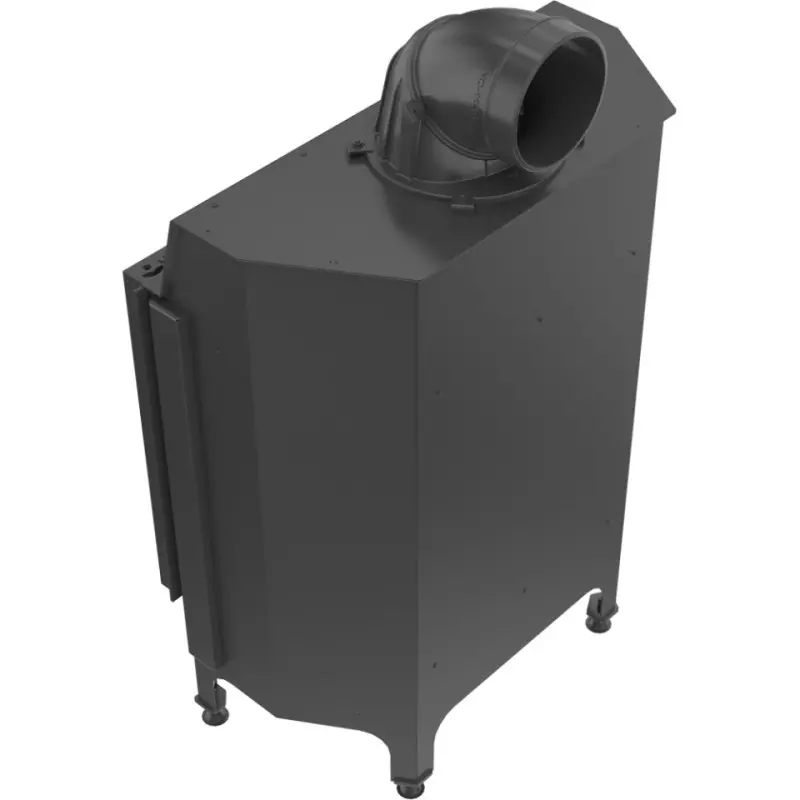

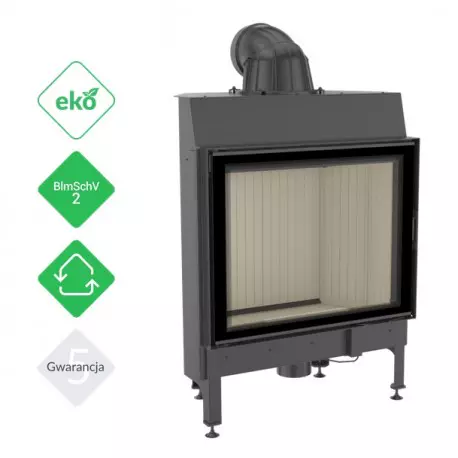

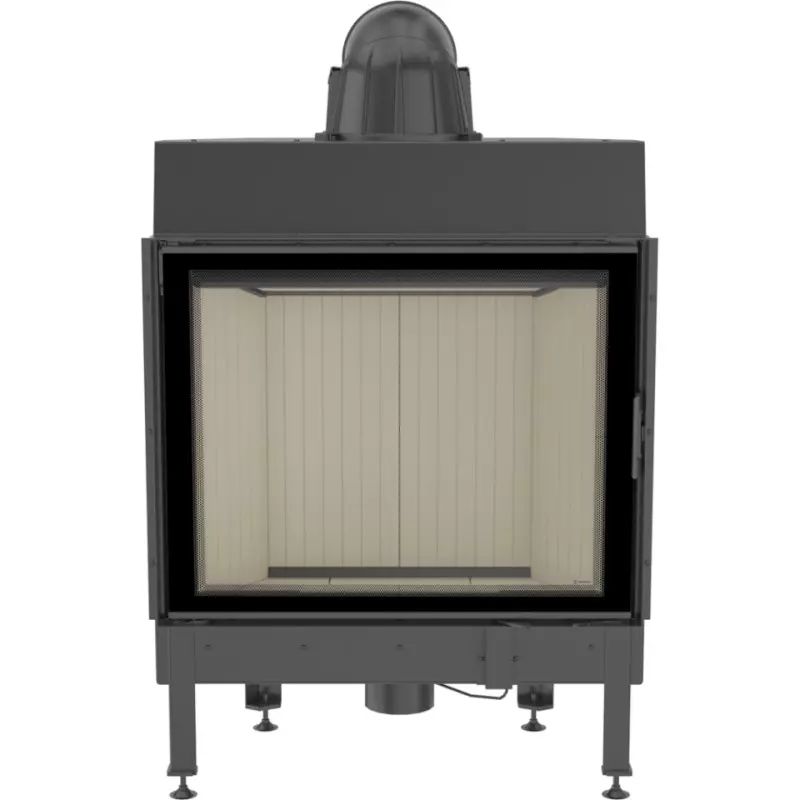

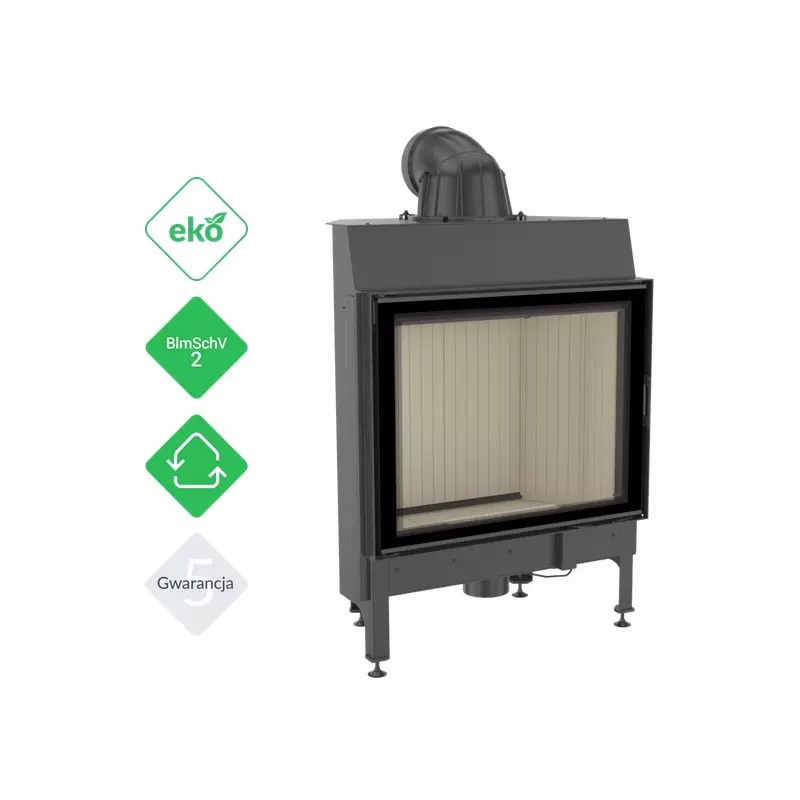

Fireplace insert NADIA 13

Fireplace insert NADIA 13 View larger
Previous Next

5901350066843

Manufacturer: KRATKI
KRATKI

2 202,70 USD

Payment and delivery

Transport Costs: Individual calculation
(After placing your order we will send you a non-binding offer containing delivery costs.)

Payment: Bank transfer

Total Rating Total Rating:

0
0/5 - 0 reviews

View ratings
0 1 2 3 40
0 1 2 3 00
0 1 2 0 10
0 1 0 1 20
0 0 1 2 30

 Add Review View Reviews View Reviews

Accessories



General dataUnitNADIA/13
Rated output[kW]13,0
Range of heating power[kW]7.0 - 16.0
Efficiency[%]81,0
Exhaust outlet diameter[mm]200
Designed for heat recovery unit[-]YES
Fuel type[-]recommended hardwood with humidity≤20%
Weight[Kg]178
CO emission (at 13% O 2 ) ≤ given in %%0.08
Flue gas temperatureºC240
Max log length[cm]40
Dust emission[mg/Nm3]37
Compliance with BlmSchV 2 standard[-]YES
Recommended ventilation area of the air outlet grid[cm2]>=900
Recommended ventilation area of the air intake grid[cm2]>=700
Glazing type[-]straight
Opening of the doors[-]To the left
Material[-]steel
Width[cm]83,4
Height[cm]133,1
Depth[cm]41,8
External air inlet[-]YES
The liner of the combustion chamber[-]YES
Ashpan[-]NO
Decorative printed glass[-]YES
Self-closing door (option)[-]YES
The energy efficiency index EEI[-]106,71

Data sheet

Power [ kW ]13
Efficiency [ % ]81
EcoDesignYES
ClassA, BImSchV 2
Weight [ kg ]178
Height [ mm ]1,331
Width [ mm ]834
Depth [ mm ]418
Exhaust gas pipe size [ mm ]200
Fuelwood
Warranty 5 years
