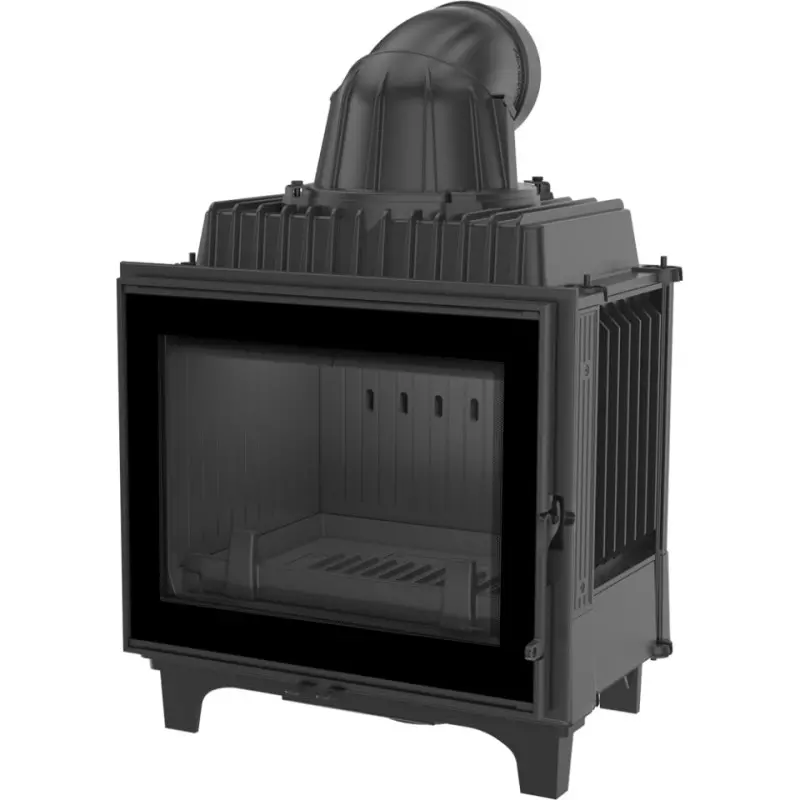

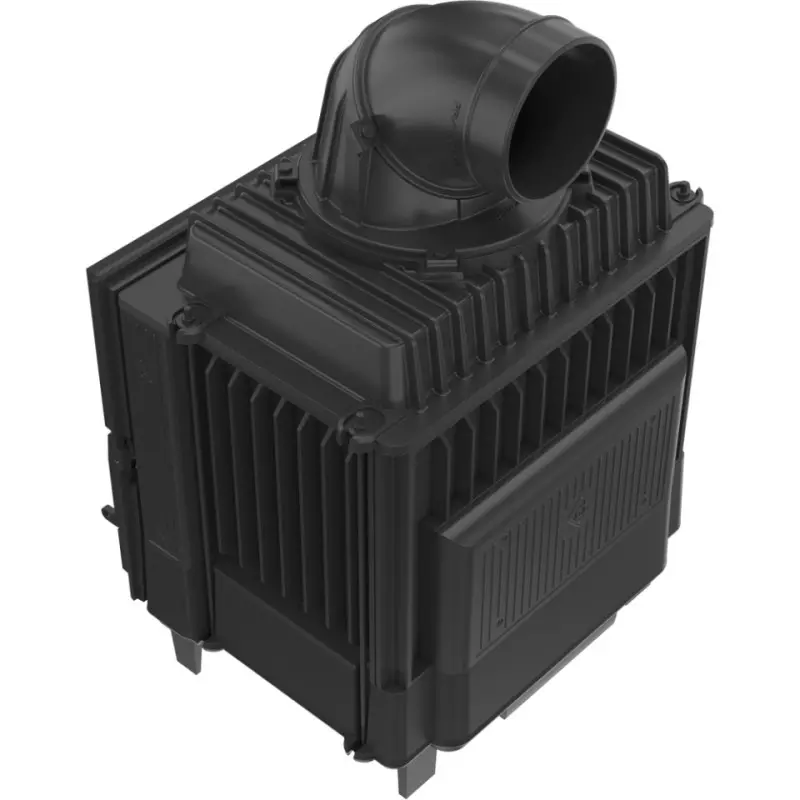

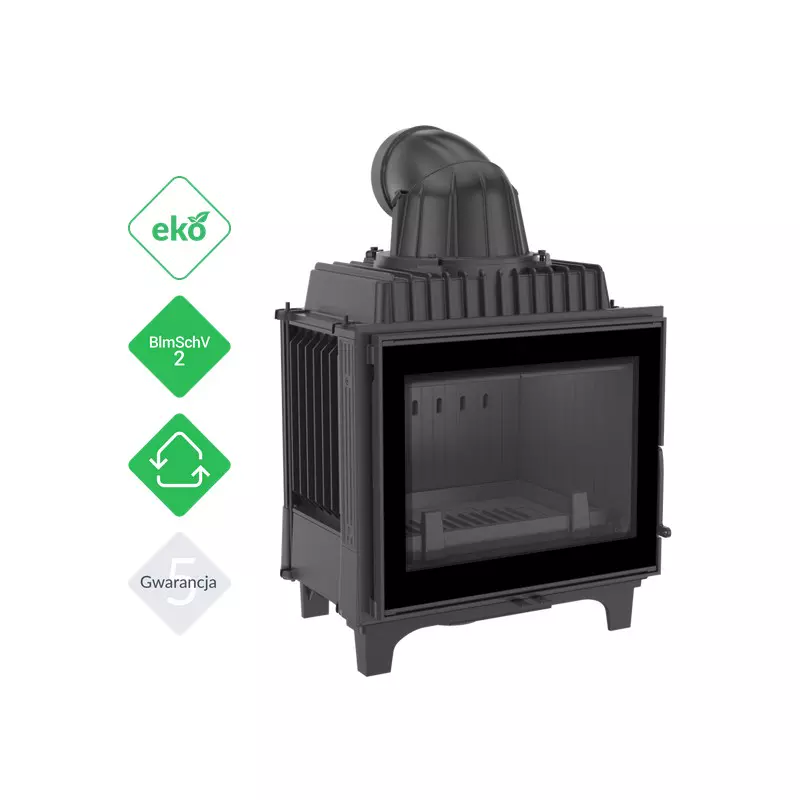

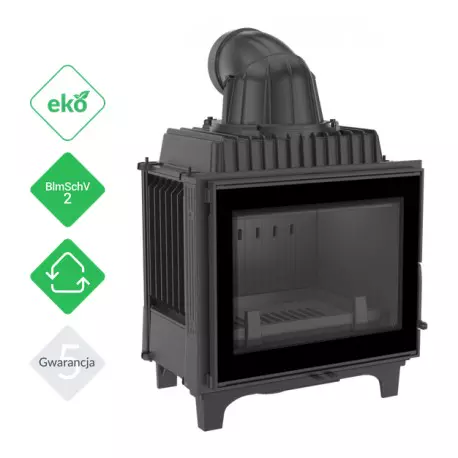

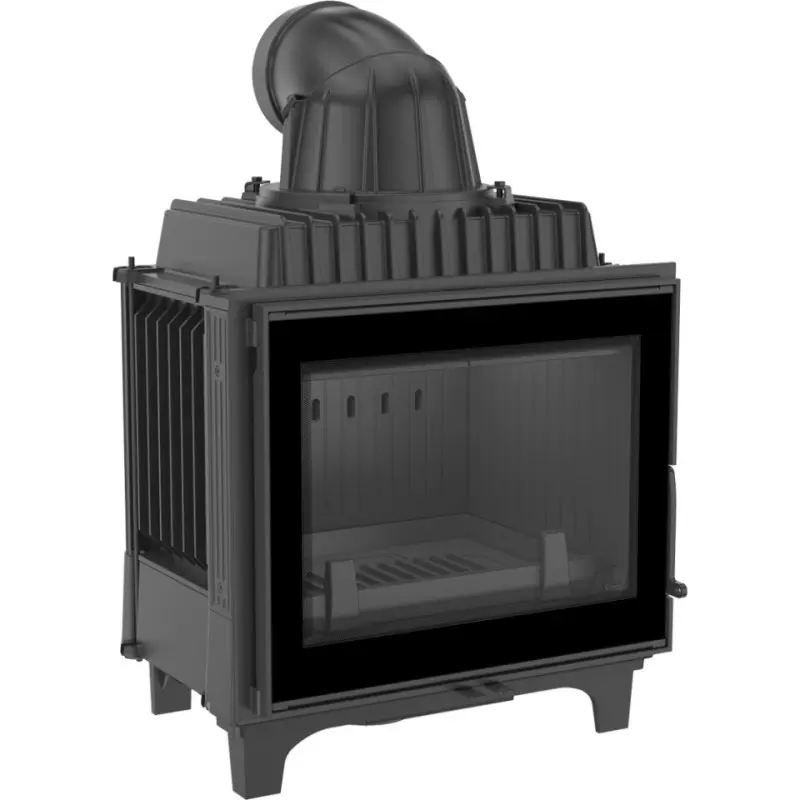

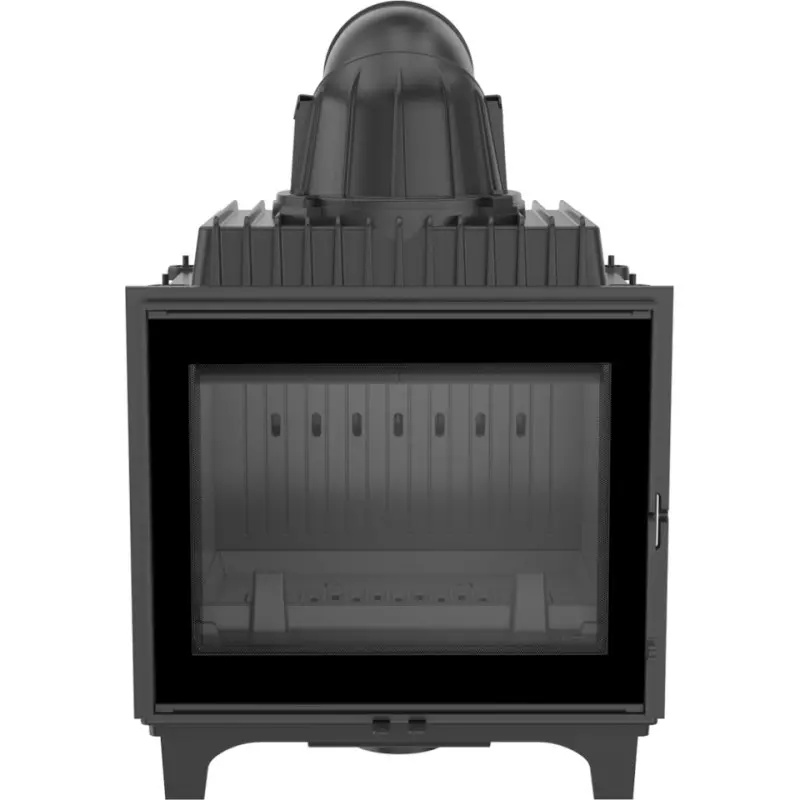

> >>Fireplace insert FRANEK 10

Fireplace insert FRANEK 10

Fireplace insert FRANEK 10 View larger
Previous Next

Product Video



5901350029305

Manufacturer: KRATKI
KRATKI

1 835,13 USD

Payment and delivery

Transport Costs: Individual calculation
(After placing your order we will send you a non-binding offer containing delivery costs.)

Payment: Bank transfer

Total Rating Total Rating:

0
0/5 - 0 reviews

View ratings
0 1 2 3 40
0 1 2 3 00
0 1 2 0 10
0 1 0 1 20
0 0 1 2 30

 Add Review View Reviews View Reviews

Accessories



General dataUnitFRANEK/10/PF
Rated output[kW]10,0
Range of heating power[kW]5.0 - 13.0
Efficiency[%]80,0
Exhaust outlet diameter[mm]180
Designed for heat recovery unit[-]YES
Fuel type[-]recommended hardwood with humidity≤20%
Weight[Kg]190
CO emission (at 13% O 2 ) ≤ given in %%0.10
Flue gas temperatureºC265
Max log length[cm]40
Dust emission[mg/Nm3]25
Compliance with BlmSchV 2 standard[-]YES
Recommended ventilation area of the air outlet grid[cm2]>=700
Recommended ventilation area of the air intake grid[cm2]>=500
Glazing type[-]straight
Opening of the doors[-]To the left
Material[-]cast iron
Width[cm]60
Height[cm]91,4
Depth[cm]44,5
External air inlet[-]YES
The liner of the combustion chamber[-]NO
Ashpan[-]YES
Decorative printed glass[-]YES
The energy efficiency index EEI[-]105,4

Data sheet

Power [ kW ]10
Efficiency [ % ]80
EcoDesignYES
ClassA, BImSchV 2
Weight [ kg ]190
Height [ mm ]914
Width [ mm ]600
Depth [ mm ]445
Exhaust gas pipe size [ mm ]180
Fuelwood
Warranty 5 years
