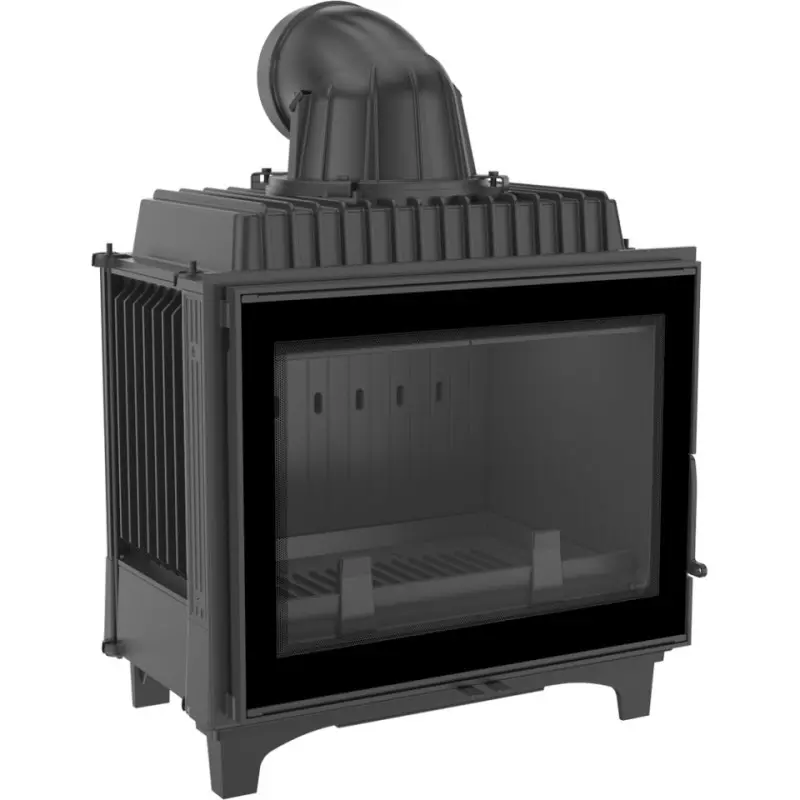

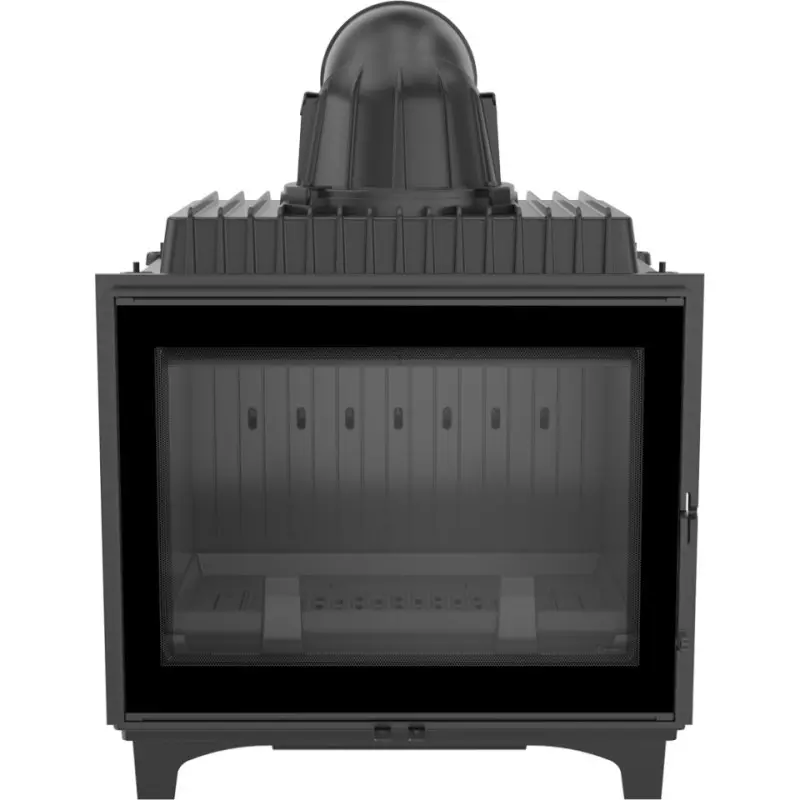

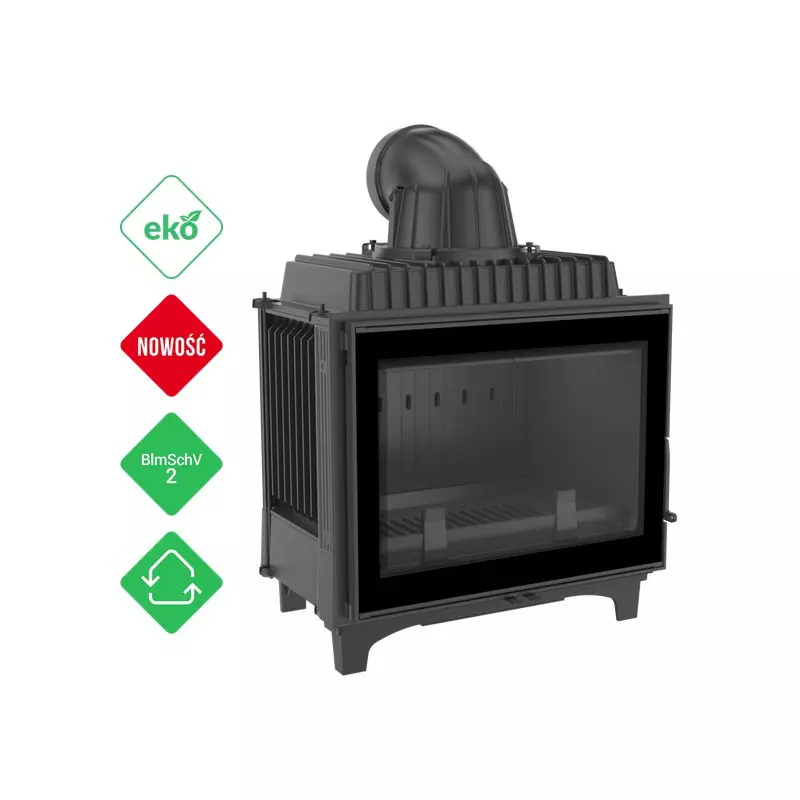

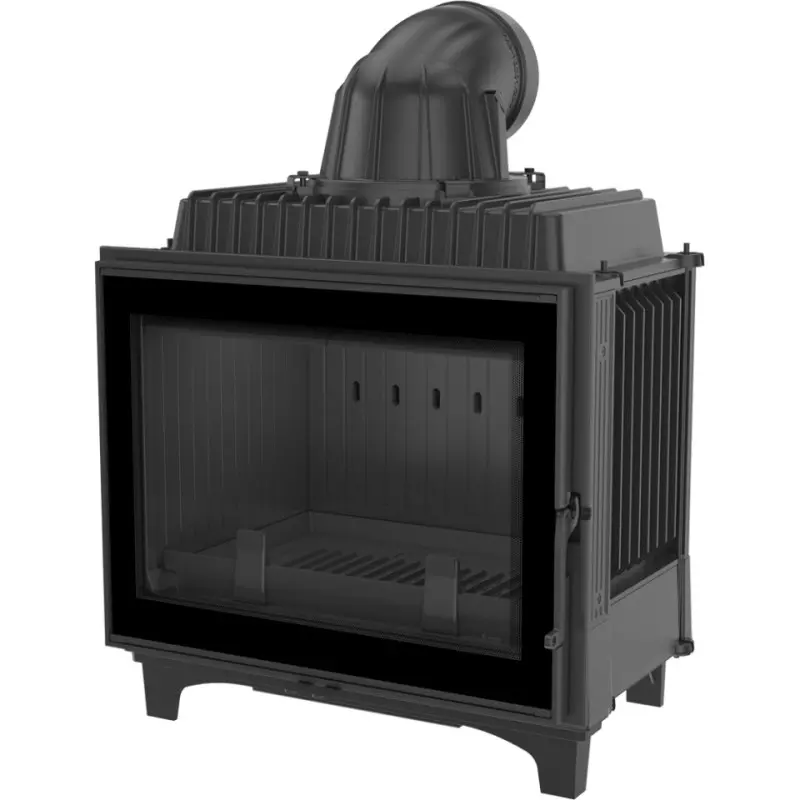

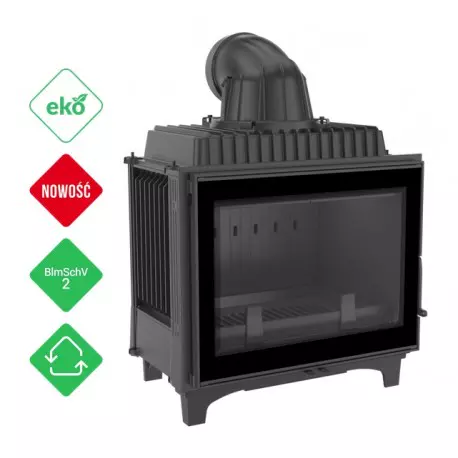

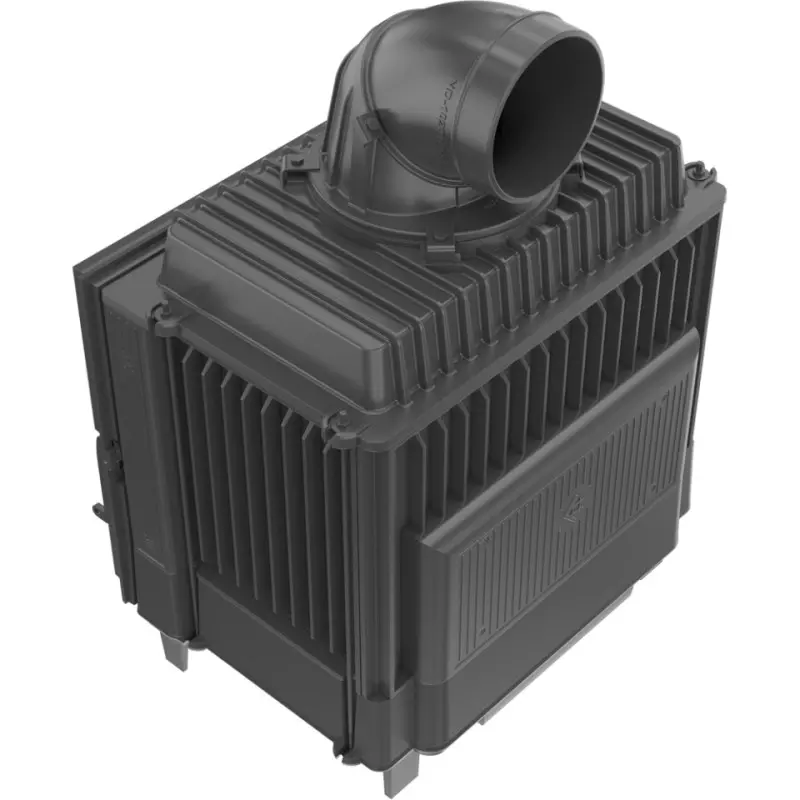

Fireplace insert FRANEK 12

Fireplace insert FRANEK 12 View larger
Previous Next

5901350072448

Manufacturer: KRATKI
KRATKI

2 013,51 USD

Payment and delivery

Transport Costs: Individual calculation
(After placing your order we will send you a non-binding offer containing delivery costs.)

Payment: Bank transfer

Total Rating Total Rating:

0
0/5 - 0 reviews

View ratings
0 1 2 3 40
0 1 2 3 00
0 1 2 0 10
0 1 0 1 20
0 0 1 2 30

 Add Review View Reviews View Reviews

Accessories



General dataUnitFRANEK/12/PF
Rated output[kW]12,0
Range of heating power[kW]5.0 - 14.5
Efficiency[%]82,0
Exhaust outlet diameter[mm]200
Designed for heat recovery unit[-]YES
Fuel type[-]recommended hardwood with humidity≤20%
Weight[Kg]249
CO emission (at 13% O 2 ) ≤ given in %%0.09
Flue gas temperatureºC215
Max log length[cm]50
Dust emission[mg/Nm3]34
Compliance with BlmSchV 2 standard[-]YES
Recommended ventilation area of the air outlet grid[cm2]>=900
Recommended ventilation area of the air intake grid[cm2]>=700
Glazing type[-]straight
Opening of the doors[-]To the left
Material[-]cast iron
Width[cm]70
Height[cm]96,8
Depth[cm]47,6
External air inlet[-]YES
The liner of the combustion chamber[-]NO
Ashpan[-]YES
Decorative printed glass[-]YES
The energy efficiency index EEI[-]108,01

Data sheet

Power [ kW ]12
Efficiency [ % ]80
EcoDesignYES
ClassA+, BImSchV 2
Weight [ kg ]249
Height [ mm ]968
Width [ mm ]700
Depth [ mm ]476
Exhaust gas pipe size [ mm ]200
Fuelwood
Warranty 5 years
