> >>Fireplace insert FRANEK 14

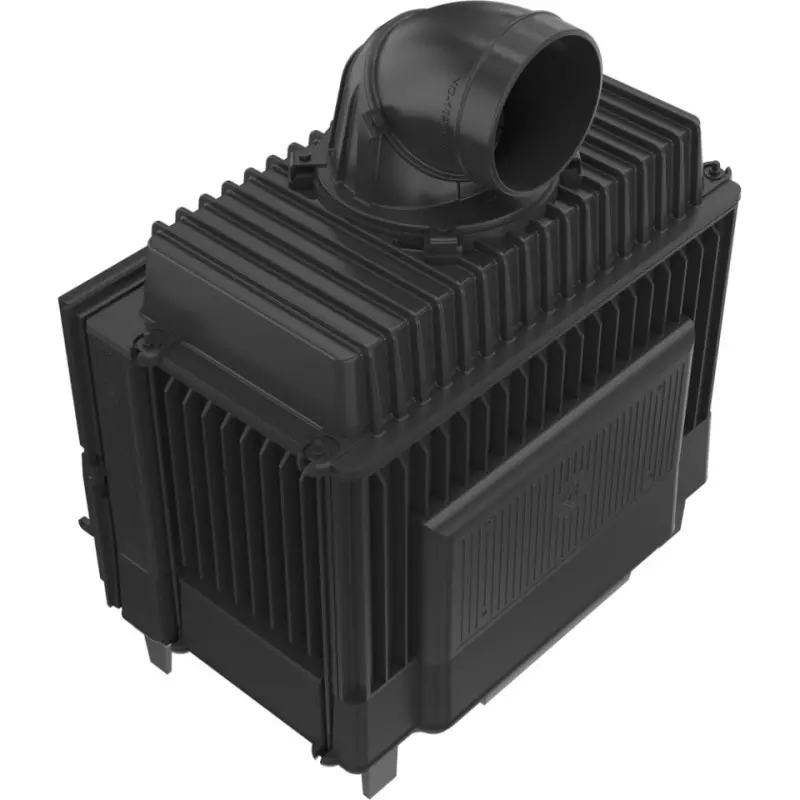

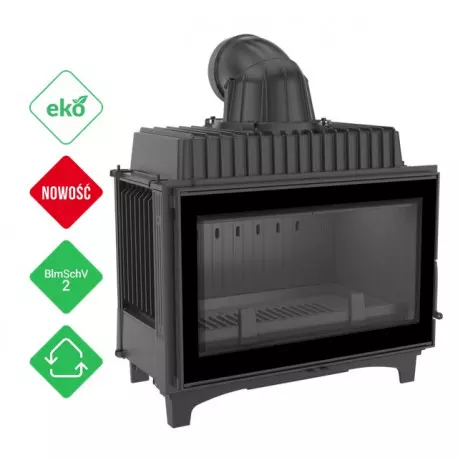

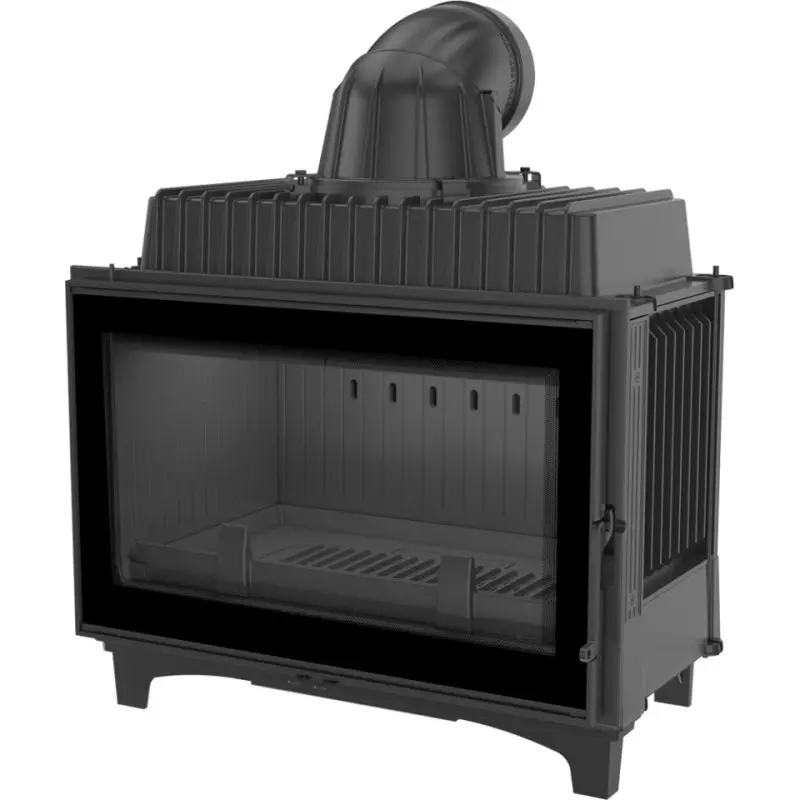

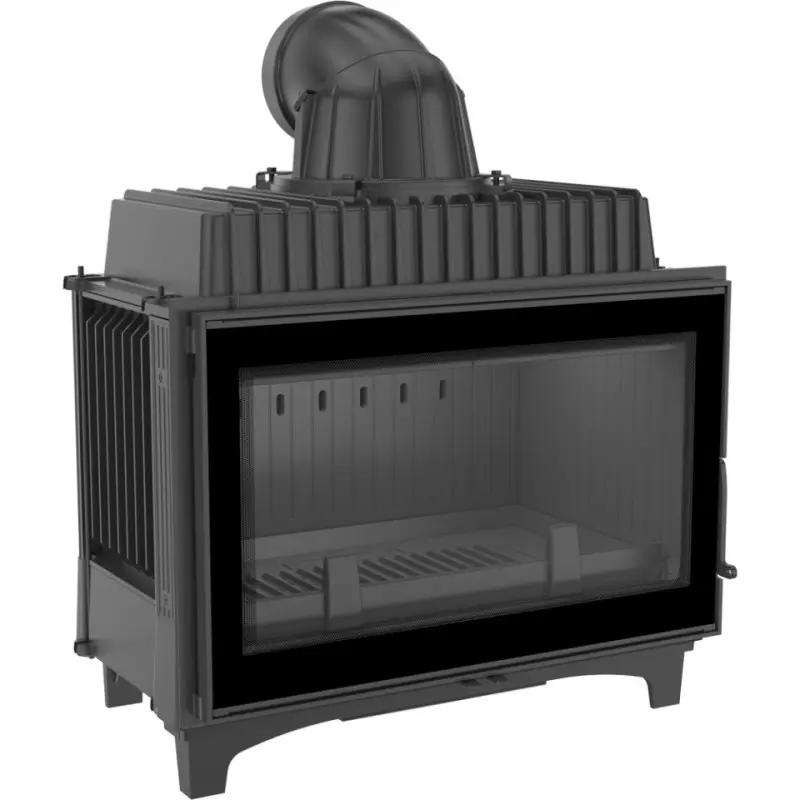

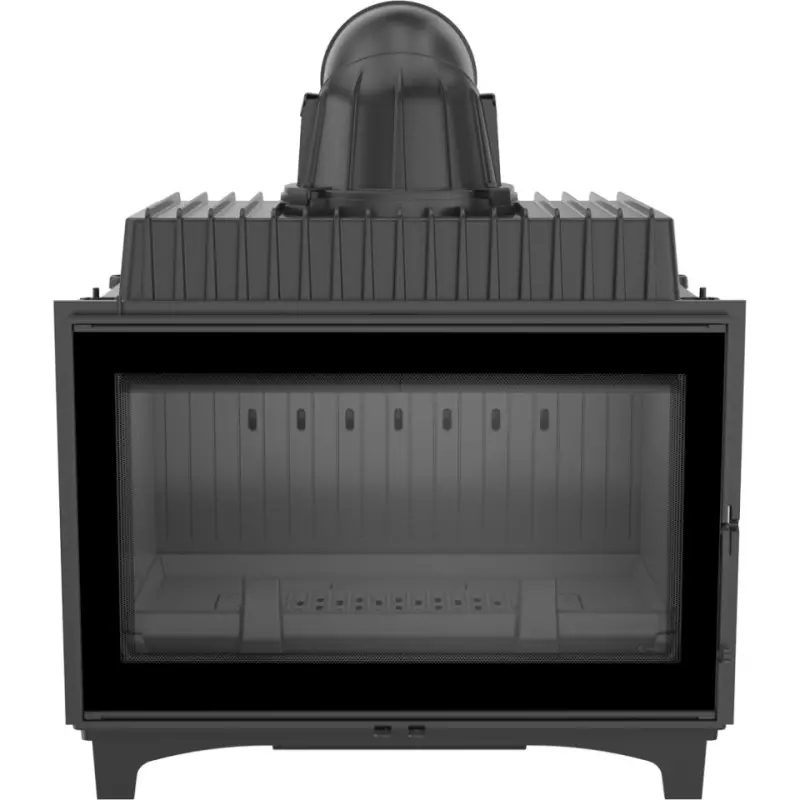

Fireplace insert FRANEK 14

Fireplace insert FRANEK 14 View larger
Previous Next

Product Video



5901350018767

Manufacturer: KRATKI
KRATKI

2 194,59 USD

Payment and delivery

Transport Costs: Individual calculation
(After placing your order we will send you a non-binding offer containing delivery costs.)

Payment: Bank transfer

Total Rating Total Rating:

0
0/5 - 0 reviews

View ratings
0 1 2 3 40
0 1 2 3 00
0 1 2 0 10
0 1 0 1 20
0 0 1 2 30

 Add Review View Reviews View Reviews

Accessories



General dataUnitFRANEK/14/PF
Rated output[kW]14,0
Range of heating power[kW]6.0 - 17.0
Efficiency[%]81,0
Exhaust outlet diameter[mm]200
Designed for heat recovery unit[-]YES
Fuel type[-]recommended hardwood with humidity≤20%
Weight[Kg]276
CO emission (at 13% O 2 ) ≤ given in %%0.10
Flue gas temperatureºC250
Max log length[cm]60
Dust emission[mg/Nm3]19
Compliance with BlmSchV 2 standard[-]YES
Recommended ventilation area of the air outlet grid[cm2]>=1000
Recommended ventilation area of the air intake grid[cm2]>=800
Glazing type[-]straight
Opening of the doors[-]To the left
Material[-]cast iron
Width[cm]80
Height[cm]96,9
Depth[cm]47,6
External air inlet[-]YES
The liner of the combustion chamber[-]NO
Ashpan[-]YES
Decorative printed glass[-]YES
The energy efficiency index EEI[-]106,71

Data sheet

Power [ kW ]14
Efficiency [ % ]81
EcoDesignYES
ClassA, BImSchV 2
Weight [ kg ]276
Height [ mm ]969
Width [ mm ]800
Depth [ mm ]476
Exhaust gas pipe size [ mm ]200
Fuelwood
Warranty 5 years
