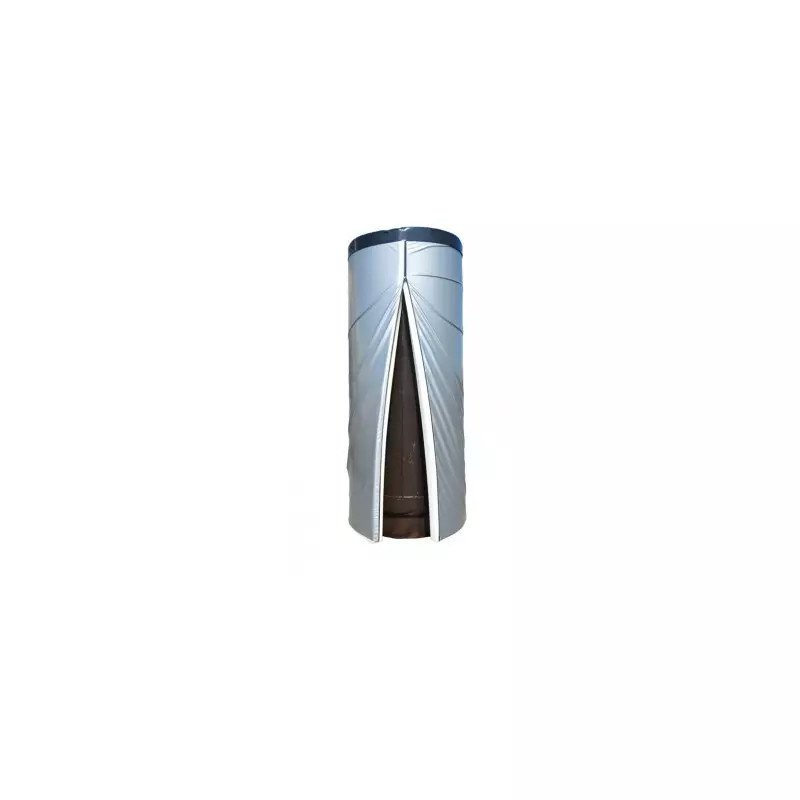

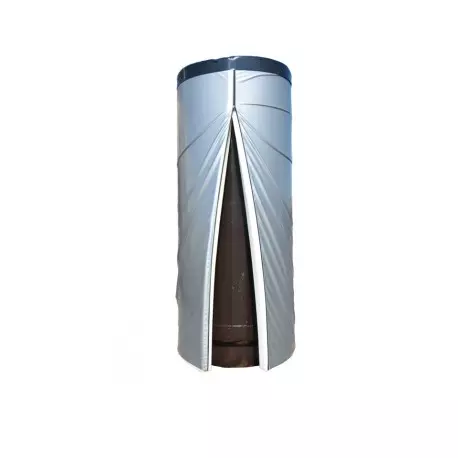

Accumulation tank with 2 black steel coils GALMET SG(B)

View larger

Pdf GALMET SG(B)

Manufacturer: GALMET

Accessories

Electric heater with thermostat GALMET GE 3 kW ...
285,00 PLN
Add to cart

Storage tanks with two coils SG(B) is designed to collect heat energy obtained from various heat sources, e.g. from a solid fuel boiler, heat pumps. They transfer the energy obtained to central heating system. The use of a tank allows to maintain boiler operation in optimal conditions, excess heat produced is accumulated in tank, this improves efficiency of installation and reduces heating costs. Tank is available in several models with different capacities (see table).

Advantages of tank:

increases use of thermal energy by about 40%;
increases efficiency of combustion in boiler, boiler operates at optimum output;
reduces tar production in boiler;
increases life of boiler, chimney and other parts of heating system;
easier boiler operation as boiler operates at optimum output;
reduces risk of boiling water in boiler.

Warranty 36 months

Insulated tank is polyurethane foam (type 400, 500) or demountable insulation Neodul (type 800-2000).

Parameter /Model	Units	SG(B) 400	SG(B) 500	SG(B) 800	SG(B) 1000	SG(B) 1500	SG(B) 2000
Capacity	l	361	433	688	835	1421	1960
ErP	polyurethane foam	C	C	-	-	-	-
ErP	Neodul	-	-	C	C	C	C
Working Pressure tank	MPa	0,3	0,3	0,3	0,3	0,3	0,3
Max. working temperature tank	^oC	95	95	95	95	95	95
Internal diameter, d	Ø mm	600	600	790	790	900	1100
External diameter, D	Ø mm	700	700	950	950	1100	1300
Height L	mm	1685	1925	1730	2050	2700	2500
height when tilted	mm	-	-	1995	2270	2920	2820
Coil working pressure	MPa	0,6	0,6	0,6	0,6	0,6	0,6
Surface of the solar coil	m²	1,8	2,5	3	3,5	4	4,5
Capacity of the solar coil	l	12,6	17,5	20,9	24,4	28	31,5
Surface of the upper coil	m²	1,4	1,4	1,8	2,1	2,5	2,7
Capacity of the upper coil	l	9,8	9,8	12,6	14,7	17,5	18,9
Weight	kg	145	170	205	240	320	370
Insulation	[-]	polyurethane foam	polyurethane foam	Neodul	Neodul	Neodul	Neodul

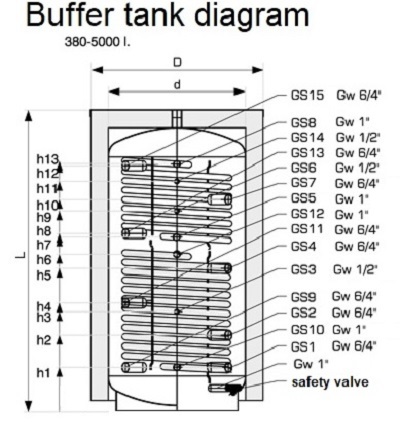

Dimensions /Model	Units	SG(B) 400	SG(B) 500	SG(B) 800	SG(B) 1000	SG(B) 1500	SG(B) 2000
h1	mm	250	250	250	250	330	385
h2	mm	445	485	435	500	705	660
h3	mm	565	645	570	570	915	800
h4	mm	635	715	620	740	1015	930
h5	mm	825	945	820	980	1325	1205
h6	mm	850	1050	900	1100	1230	1285
h7	mm	1010	1150	1000	1200	1565	1415
h8	mm	1015	1180	1020	1240	1640	1480
h9	mm	1150	1300	1150	1350	1715	1565
h10	mm	1210	1410	1215	1485	1950	1755
h11	mm	1410	1550	1320	1640	2110	1885
h12	mm	1410	1640	1410	1730	2260	2025
h13	mm	1420	1650	1420	1740	2260	2035

Data sheet

Weight [ kg ]	320
Weight [ kg ]	240
Weight [ kg ]	145
Weight [ kg ]	370
Weight [ kg ]	205
Weight [ kg ]	170
Height [ mm ]	2,700
Height [ mm ]	1,685
Height [ mm ]	2,500
Height [ mm ]	2,050
Height [ mm ]	1,925
Height [ mm ]	1,730
Water capacity [ L ]	688
Water capacity [ L ]	1421
Water capacity [ L ]	361
Water capacity [ L ]	835
Water capacity [ L ]	433
Water capacity [ L ]	1960
Diameter (without isolation) [ mm ]	1,100
Diameter (without isolation) [ mm ]	790
Diameter (without isolation) [ mm ]	790
Diameter (without isolation) [ mm ]	600
Diameter (without isolation) [ mm ]	900
Diameter (without isolation) [ mm ]	600
Diameter (with isolation) [ mm ]	950
Diameter (with isolation) [ mm ]	700
Diameter (with isolation) [ mm ]	950
Diameter (with isolation) [ mm ]	1,100
Diameter (with isolation) [ mm ]	700
Diameter (with isolation) [ mm ]	1,300
Insulation	Neodul
Insulation	Polyurethane foam
Insulation	Neodul
Insulation	Polyurethane foam
Insulation	Neodul
Insulation	Neodul
Coil size (bottom) [ m² ]	3
Coil size (bottom) [ m² ]	3.5
Coil size (bottom) [ m² ]	2.5
Coil size (bottom) [ m² ]	4
Coil size (bottom) [ m² ]	1.8
Coil size (bottom) [ m² ]	4.5
Coil size (top) [ m² ]	2.1
Coil size (top) [ m² ]	2.7
Coil size (top) [ m² ]	2.5
Coil size (top) [ m² ]	1.8
Coil size (top) [ m² ]	1.4
Coil size (top) [ m² ]	1.4
Installation	Vertical, Floor, Internal
Max. operating pressure [ bar ]	3
Warranty	3 years
Coil	2 coils
