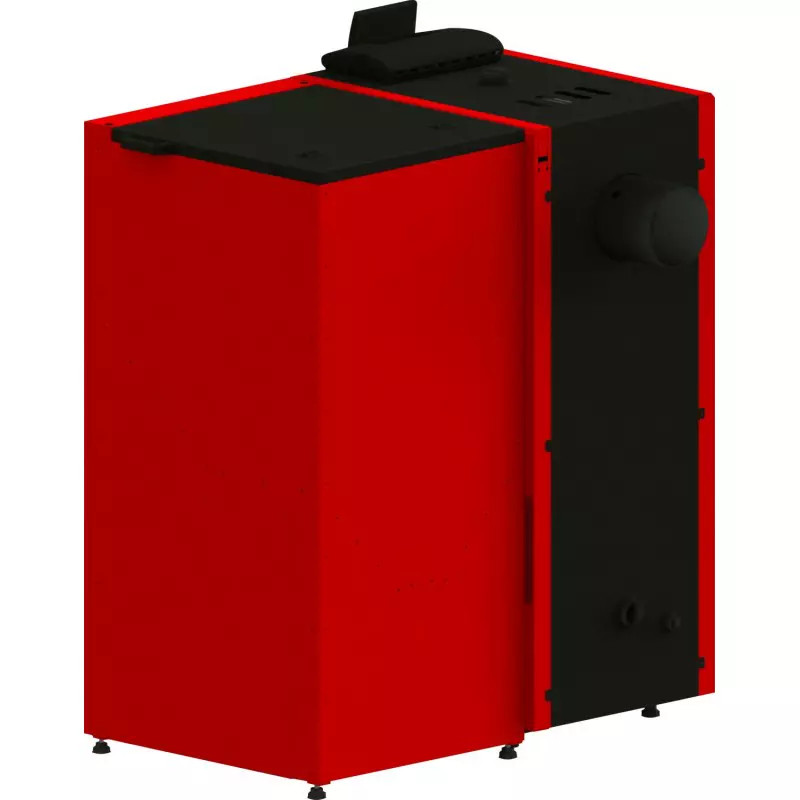

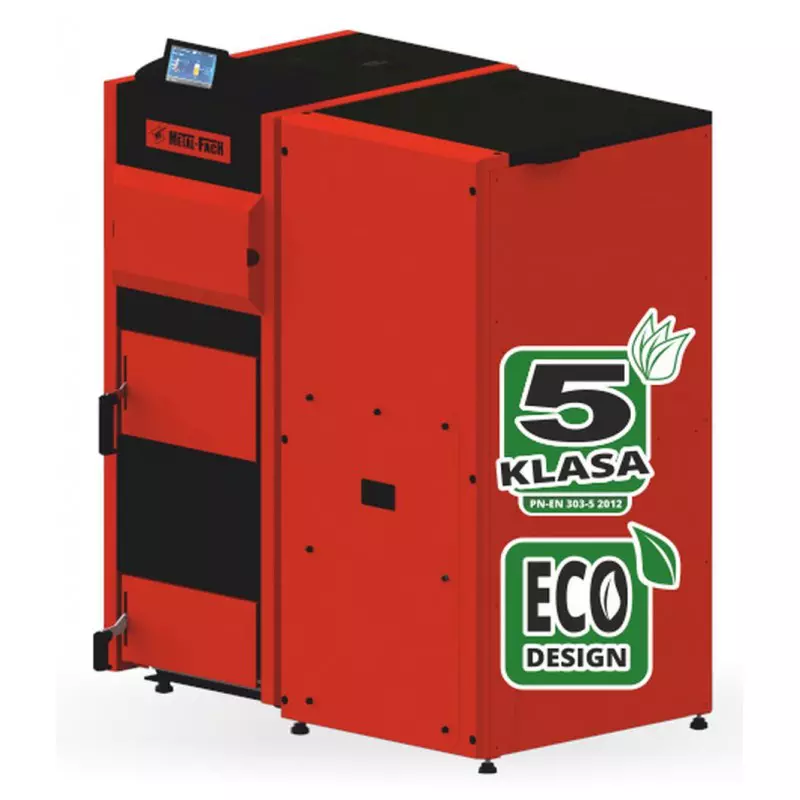

Boiler Metal-Fach SEG PELLET /P

View larger

⛔ Product unavailable

Pdf SEG PELLET /P

Manufacturer: METAL-FACH

Parameter	unit SI	Model of the boiler
		SEG PELLET 15 /P	SEG PELLET 20 /P	SEG PELLET 25 /P	SEG PELLET 30 /P
Nominal thermal power	[kW]	15	20	25	30
Boiler output range	[kW]	4,5-15	6-20	7,5-25	9-30
A surface that can be heated	[m2]	150	150-200	200-250	250-300
Heating surface	[m2]	2,10	2,54	2,85	3,11
Water capacity	[L]	60	68	73	95
Maximum working pressure	[bar]	3
Maximum working temperature	[°C]	95
Test pressure	[bar]	4,5
ECODESIGN	[-]	+
5 th Class acc. PN EN 303-5: 2012 standards	[-]	5
Boiler efficiency	[%]	≤92
Capacity of the fuel tank	[L]	260
Capacity of the fuel tank	[kg]	155
Fuel	[-]	pellet Φ6-8
Electrical connection	[-]	~230V; 50 Hz
Electric power consumption at boiler operation with nominal power	[W]	80
Electric power consumption when lighting up the boiler	[W]	380
Setting range of the temperature controller	[°C]	60-85 (by 1°C)
Chimney draft required	[Pa]	20	25	25	30
Calculation of flow resistance ΔT = 10K	mbar	5,47	9,74	12,33	15,80
Calculation of flow resistance ΔT. = 20K	mbar	1,36	2,43	3,80	4,30
Boiler weight	[kg]	448	510	535	551

DIMENSIONS

TYP	SEG PELLET – 15	SEG PELLET – 20	SEG PELLET – 25	SEG PELLET – 30
A	1160	1160	1160	1210
B	535	535	535	585
C	1160	1355	1415	1415
C1	1425	1425	1425	1425
D	705	745	795	795
E	910	1105	1160	1160
F	350	360	410	410
G	1,5”	1,5”	1,5”	1,5”
H	3/4”	3/4”	3/4”	3/4”
I	180	180	180	180
J	1,5”	1,5”	1,5”	1,5”
K	215	250	250	250
L	215	210	205	205
M	615	615	615	615
N	715	715	715	715
O	125	125	125	125
P	870	905	955	955

Data sheet

Power [ kW ]	15
Power [ kW ]	20
Power [ kW ]	25
Power [ kW ]	30
Power [ kW ]	15
Power [ kW ]	20
Power [ kW ]	25
Power [ kW ]	30
Power [ kW ]	15
Power [ kW ]	20
Power [ kW ]	25
Power [ kW ]	30
Power [ kW ]	15
Power [ kW ]	20
Power [ kW ]	25
Power [ kW ]	30
Power [ kW ]	15
Power [ kW ]	20
Power [ kW ]	25
Power [ kW ]	30
Power [ kW ]	15
Power [ kW ]	20
Power [ kW ]	25
Power [ kW ]	30
Power [ kW ]	15
Power [ kW ]	20
Power [ kW ]	25
Power [ kW ]	30
Power [ kW ]	15
Power [ kW ]	20
Power [ kW ]	25
Power [ kW ]	30
Power [ kW ]	15
Power [ kW ]	20
Power [ kW ]	25
Power [ kW ]	30
Power [ kW ]	15
Power [ kW ]	20
Power [ kW ]	25
Power [ kW ]	30
Power [ kW ]	15
Power [ kW ]	20
Power [ kW ]	25
Power [ kW ]	30
Power [ kW ]	15
Power [ kW ]	20
Power [ kW ]	25
Power [ kW ]	30
Power [ kW ]	15
Power [ kW ]	20
Power [ kW ]	25
Power [ kW ]	30
Power [ kW ]	15
Power [ kW ]	20
Power [ kW ]	25
Power [ kW ]	30
Power [ kW ]	15
Power [ kW ]	20
Power [ kW ]	25
Power [ kW ]	30
Power [ kW ]	15
Power [ kW ]	20
Power [ kW ]	25
Power [ kW ]	30
Weight [ kg ]	448
Weight [ kg ]	510
Weight [ kg ]	535
Weight [ kg ]	551
Weight [ kg ]	448
Weight [ kg ]	510
Weight [ kg ]	535
Weight [ kg ]	551
Weight [ kg ]	448
Weight [ kg ]	510
Weight [ kg ]	535
Weight [ kg ]	551
Weight [ kg ]	448
Weight [ kg ]	510
Weight [ kg ]	535
Weight [ kg ]	551
Weight [ kg ]	448
Weight [ kg ]	510
Weight [ kg ]	535
Weight [ kg ]	551
Weight [ kg ]	448
Weight [ kg ]	510
Weight [ kg ]	535
Weight [ kg ]	551
Weight [ kg ]	448
Weight [ kg ]	510
Weight [ kg ]	535
Weight [ kg ]	551
Weight [ kg ]	448
Weight [ kg ]	510
Weight [ kg ]	535
Weight [ kg ]	551
Weight [ kg ]	448
Weight [ kg ]	510
Weight [ kg ]	535
Weight [ kg ]	551
Weight [ kg ]	448
Weight [ kg ]	510
Weight [ kg ]	535
Weight [ kg ]	551
Weight [ kg ]	448
Weight [ kg ]	510
Weight [ kg ]	535
Weight [ kg ]	551
Weight [ kg ]	448
Weight [ kg ]	510
Weight [ kg ]	535
Weight [ kg ]	551
Weight [ kg ]	448
Weight [ kg ]	510
Weight [ kg ]	535
Weight [ kg ]	551
Weight [ kg ]	448
Weight [ kg ]	510
Weight [ kg ]	535
Weight [ kg ]	551
Weight [ kg ]	448
Weight [ kg ]	510
Weight [ kg ]	535
Weight [ kg ]	551
Weight [ kg ]	448
Weight [ kg ]	510
Weight [ kg ]	535
Weight [ kg ]	551
Width [ mm ]	1,160
Width [ mm ]	1,160
Width [ mm ]	1,160
Width [ mm ]	1,210
Width [ mm ]	1,160
Width [ mm ]	1,160
Width [ mm ]	1,160
Width [ mm ]	1,210
Width [ mm ]	1,160
Width [ mm ]	1,160
Width [ mm ]	1,160
Width [ mm ]	1,210
Width [ mm ]	1,160
Width [ mm ]	1,160
Width [ mm ]	1,160
Width [ mm ]	1,210
Width [ mm ]	1,160
Width [ mm ]	1,160
Width [ mm ]	1,160
Width [ mm ]	1,210
Width [ mm ]	1,160
Width [ mm ]	1,160
Width [ mm ]	1,160
Width [ mm ]	1,210
Width [ mm ]	1,160
Width [ mm ]	1,160
Width [ mm ]	1,160
Width [ mm ]	1,210
Width [ mm ]	1,160
Width [ mm ]	1,160
Width [ mm ]	1,160
Width [ mm ]	1,210
Width [ mm ]	1,160
Width [ mm ]	1,160
Width [ mm ]	1,160
Width [ mm ]	1,210
Width [ mm ]	1,160
Width [ mm ]	1,160
Width [ mm ]	1,160
Width [ mm ]	1,210
Width [ mm ]	1,160
Width [ mm ]	1,160
Width [ mm ]	1,160
Width [ mm ]	1,210
Width [ mm ]	1,160
Width [ mm ]	1,160
Width [ mm ]	1,160
Width [ mm ]	1,210
Width [ mm ]	1,160
Width [ mm ]	1,160
Width [ mm ]	1,160
Width [ mm ]	1,210
Width [ mm ]	1,160
Width [ mm ]	1,160
Width [ mm ]	1,160
Width [ mm ]	1,210
Width [ mm ]	1,160
Width [ mm ]	1,160
Width [ mm ]	1,160
Width [ mm ]	1,210
Width [ mm ]	1,160
Width [ mm ]	1,160
Width [ mm ]	1,160
Width [ mm ]	1,210
Depth [ mm ]	870
Depth [ mm ]	905
Depth [ mm ]	955
Depth [ mm ]	955
Depth [ mm ]	870
Depth [ mm ]	905
Depth [ mm ]	955
Depth [ mm ]	955
Depth [ mm ]	870
Depth [ mm ]	905
Depth [ mm ]	955
Depth [ mm ]	955
Depth [ mm ]	870
Depth [ mm ]	905
Depth [ mm ]	955
Depth [ mm ]	955
Depth [ mm ]	870
Depth [ mm ]	905
Depth [ mm ]	955
Depth [ mm ]	955
Depth [ mm ]	870
Depth [ mm ]	905
Depth [ mm ]	955
Depth [ mm ]	955
Depth [ mm ]	870
Depth [ mm ]	905
Depth [ mm ]	955
Depth [ mm ]	955
Depth [ mm ]	870
Depth [ mm ]	905
Depth [ mm ]	955
Depth [ mm ]	955
Depth [ mm ]	870
Depth [ mm ]	905
Depth [ mm ]	955
Depth [ mm ]	955
Depth [ mm ]	870
Depth [ mm ]	905
Depth [ mm ]	955
Depth [ mm ]	955
Depth [ mm ]	870
Depth [ mm ]	905
Depth [ mm ]	955
Depth [ mm ]	955
Depth [ mm ]	870
Depth [ mm ]	905
Depth [ mm ]	955
Depth [ mm ]	955
Depth [ mm ]	870
Depth [ mm ]	905
Depth [ mm ]	955
Depth [ mm ]	955
Depth [ mm ]	870
Depth [ mm ]	905
Depth [ mm ]	955
Depth [ mm ]	955
Depth [ mm ]	870
Depth [ mm ]	905
Depth [ mm ]	955
Depth [ mm ]	955
Depth [ mm ]	870
Depth [ mm ]	905
Depth [ mm ]	955
Depth [ mm ]	955
Distance from flooring to exhaust gas pipe base [ mm ]	820
Distance from flooring to exhaust gas pipe base [ mm ]	1,015
Distance from flooring to exhaust gas pipe base [ mm ]	1,070
Distance from flooring to exhaust gas pipe base [ mm ]	1,070
Distance from flooring to exhaust gas pipe base [ mm ]	820
Distance from flooring to exhaust gas pipe base [ mm ]	1,015
Distance from flooring to exhaust gas pipe base [ mm ]	1,070
Distance from flooring to exhaust gas pipe base [ mm ]	1,070
Distance from flooring to exhaust gas pipe base [ mm ]	820
Distance from flooring to exhaust gas pipe base [ mm ]	1,015
Distance from flooring to exhaust gas pipe base [ mm ]	1,070
Distance from flooring to exhaust gas pipe base [ mm ]	1,070
Distance from flooring to exhaust gas pipe base [ mm ]	820
Distance from flooring to exhaust gas pipe base [ mm ]	1,015
Distance from flooring to exhaust gas pipe base [ mm ]	1,070
Distance from flooring to exhaust gas pipe base [ mm ]	1,070
Distance from flooring to exhaust gas pipe base [ mm ]	820
Distance from flooring to exhaust gas pipe base [ mm ]	1,015
Distance from flooring to exhaust gas pipe base [ mm ]	1,070
Distance from flooring to exhaust gas pipe base [ mm ]	1,070
Distance from flooring to exhaust gas pipe base [ mm ]	820
Distance from flooring to exhaust gas pipe base [ mm ]	1,015
Distance from flooring to exhaust gas pipe base [ mm ]	1,070
Distance from flooring to exhaust gas pipe base [ mm ]	1,070
Distance from flooring to exhaust gas pipe base [ mm ]	820
Distance from flooring to exhaust gas pipe base [ mm ]	1,015
Distance from flooring to exhaust gas pipe base [ mm ]	1,070
Distance from flooring to exhaust gas pipe base [ mm ]	1,070
Distance from flooring to exhaust gas pipe base [ mm ]	820
Distance from flooring to exhaust gas pipe base [ mm ]	1,015
Distance from flooring to exhaust gas pipe base [ mm ]	1,070
Distance from flooring to exhaust gas pipe base [ mm ]	1,070
Distance from flooring to exhaust gas pipe base [ mm ]	820
Distance from flooring to exhaust gas pipe base [ mm ]	1,015
Distance from flooring to exhaust gas pipe base [ mm ]	1,070
Distance from flooring to exhaust gas pipe base [ mm ]	1,070
Distance from flooring to exhaust gas pipe base [ mm ]	820
Distance from flooring to exhaust gas pipe base [ mm ]	1,015
Distance from flooring to exhaust gas pipe base [ mm ]	1,070
Distance from flooring to exhaust gas pipe base [ mm ]	1,070
Distance from flooring to exhaust gas pipe base [ mm ]	820
Distance from flooring to exhaust gas pipe base [ mm ]	1,015
Distance from flooring to exhaust gas pipe base [ mm ]	1,070
Distance from flooring to exhaust gas pipe base [ mm ]	1,070
Distance from flooring to exhaust gas pipe base [ mm ]	820
Distance from flooring to exhaust gas pipe base [ mm ]	1,015
Distance from flooring to exhaust gas pipe base [ mm ]	1,070
Distance from flooring to exhaust gas pipe base [ mm ]	1,070
Distance from flooring to exhaust gas pipe base [ mm ]	820
Distance from flooring to exhaust gas pipe base [ mm ]	1,015
Distance from flooring to exhaust gas pipe base [ mm ]	1,070
Distance from flooring to exhaust gas pipe base [ mm ]	1,070
Distance from flooring to exhaust gas pipe base [ mm ]	820
Distance from flooring to exhaust gas pipe base [ mm ]	1,015
Distance from flooring to exhaust gas pipe base [ mm ]	1,070
Distance from flooring to exhaust gas pipe base [ mm ]	1,070
Distance from flooring to exhaust gas pipe base [ mm ]	820
Distance from flooring to exhaust gas pipe base [ mm ]	1,015
Distance from flooring to exhaust gas pipe base [ mm ]	1,070
Distance from flooring to exhaust gas pipe base [ mm ]	1,070
Distance from flooring to exhaust gas pipe base [ mm ]	820
Distance from flooring to exhaust gas pipe base [ mm ]	1,015
Distance from flooring to exhaust gas pipe base [ mm ]	1,070
Distance from flooring to exhaust gas pipe base [ mm ]	1,070
Water capacity [ L ]	60
Water capacity [ L ]	68
Water capacity [ L ]	73
Water capacity [ L ]	95
Water capacity [ L ]	60
Water capacity [ L ]	68
Water capacity [ L ]	73
Water capacity [ L ]	95
Water capacity [ L ]	60
Water capacity [ L ]	68
Water capacity [ L ]	73
Water capacity [ L ]	95
Water capacity [ L ]	60
Water capacity [ L ]	68
Water capacity [ L ]	73
Water capacity [ L ]	95
Water capacity [ L ]	60
Water capacity [ L ]	68
Water capacity [ L ]	73
Water capacity [ L ]	95
Water capacity [ L ]	60
Water capacity [ L ]	68
Water capacity [ L ]	73
Water capacity [ L ]	95
Water capacity [ L ]	60
Water capacity [ L ]	68
Water capacity [ L ]	73
Water capacity [ L ]	95
Water capacity [ L ]	60
Water capacity [ L ]	68
Water capacity [ L ]	73
Water capacity [ L ]	95
Water capacity [ L ]	60
Water capacity [ L ]	68
Water capacity [ L ]	73
Water capacity [ L ]	95
Water capacity [ L ]	60
Water capacity [ L ]	68
Water capacity [ L ]	73
Water capacity [ L ]	95
Water capacity [ L ]	60
Water capacity [ L ]	68
Water capacity [ L ]	73
Water capacity [ L ]	95
Water capacity [ L ]	60
Water capacity [ L ]	68
Water capacity [ L ]	73
Water capacity [ L ]	95
Water capacity [ L ]	60
Water capacity [ L ]	68
Water capacity [ L ]	73
Water capacity [ L ]	95
Water capacity [ L ]	60
Water capacity [ L ]	68
Water capacity [ L ]	73
Water capacity [ L ]	95
Water capacity [ L ]	60
Water capacity [ L ]	68
Water capacity [ L ]	73
Water capacity [ L ]	95
Water capacity [ L ]	60
Water capacity [ L ]	68
Water capacity [ L ]	73
Water capacity [ L ]	95
Efficiency [ % ]	92
EcoDesign	YES, pellets
Class	5
Exhaust gas pipe size [ mm ]	180
Feeder capacity [ dm³ ]	260
Outlet and inlet supply size [ inch ]	⁶⁄₄''
Wall thickness [ mm ]	6
Installation	Horizantal, Floor, Internal
Max. working temperature [ °C ]	95
Max. operating pressure [ bar ]	3

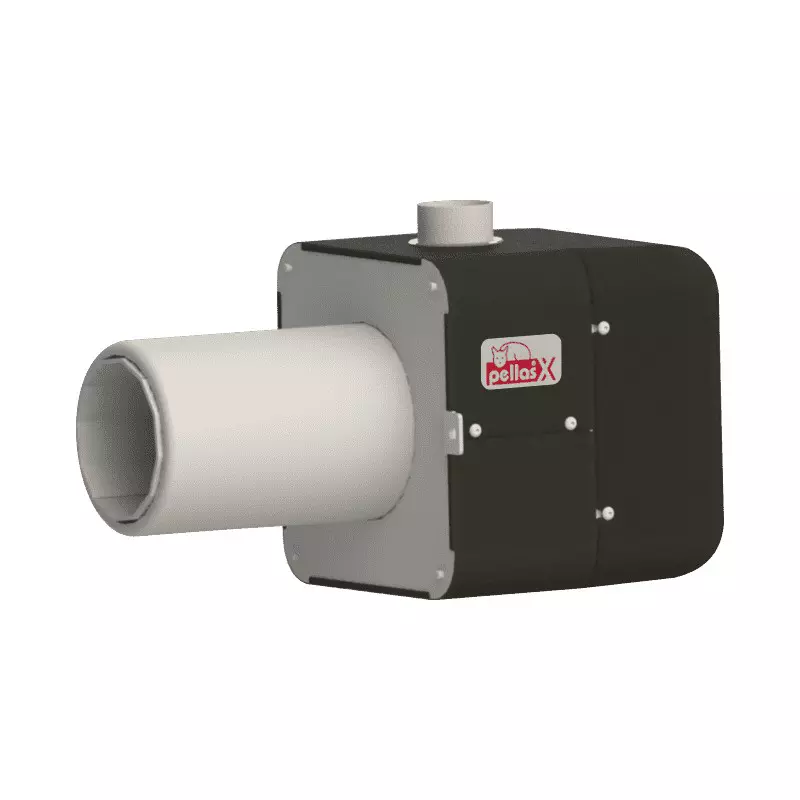

Burner	Self-cleaning drop-in burner
Lambda probe	OPTIONAL
Steering	OPTIONAL, via web browser, via Android
Mains voltage [ V ]	230
Fuel	pellets
Warranty	5 years for tightness of the heat exchanger
