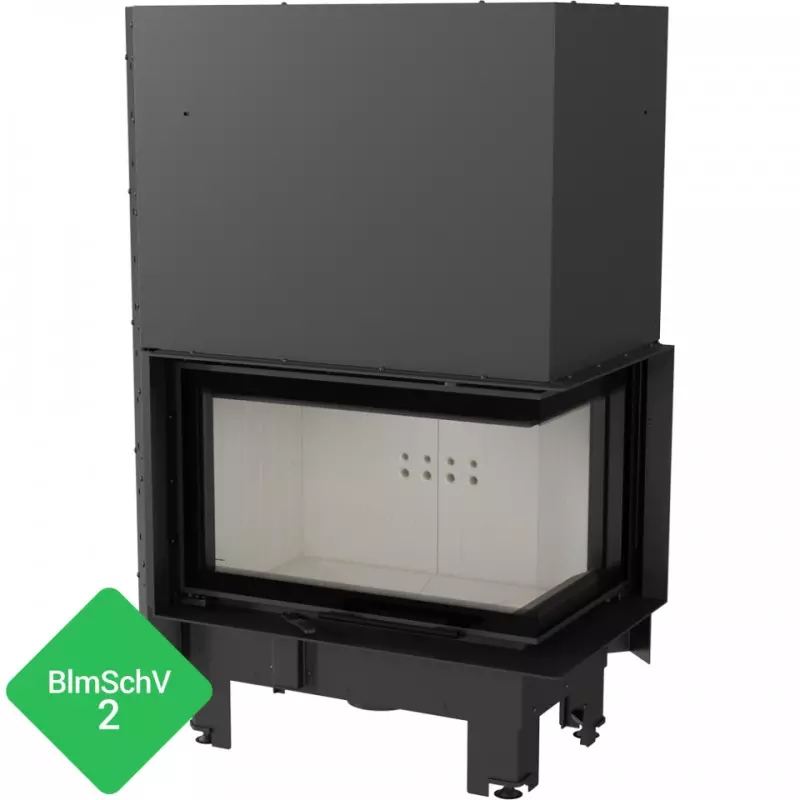

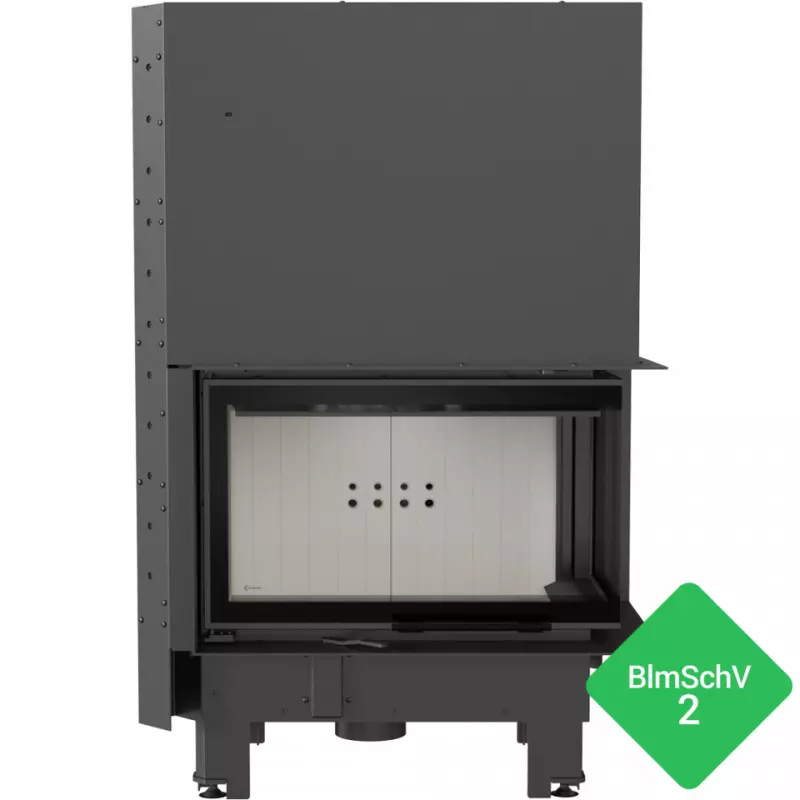

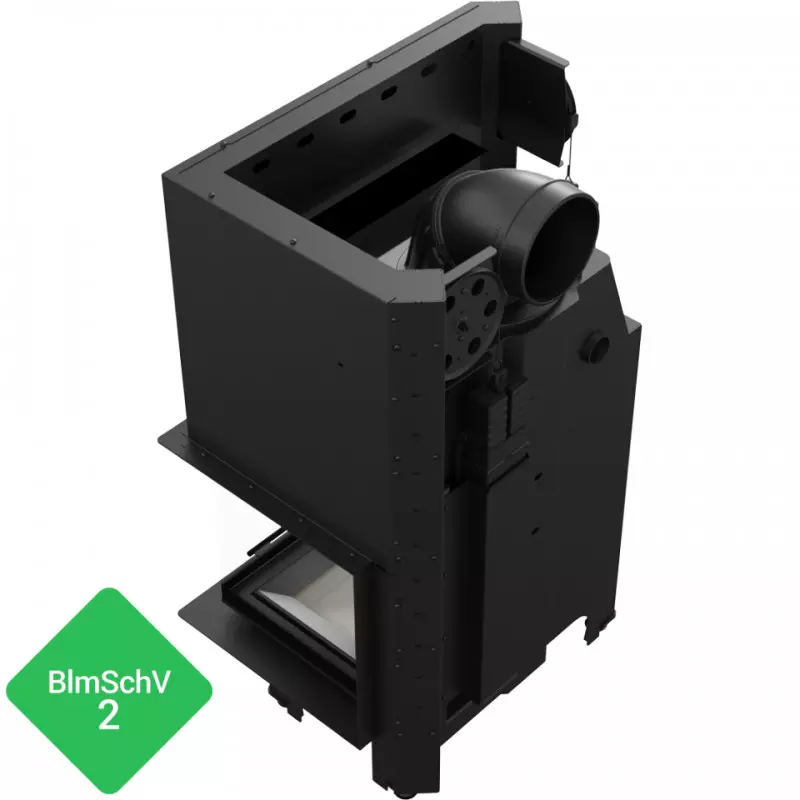

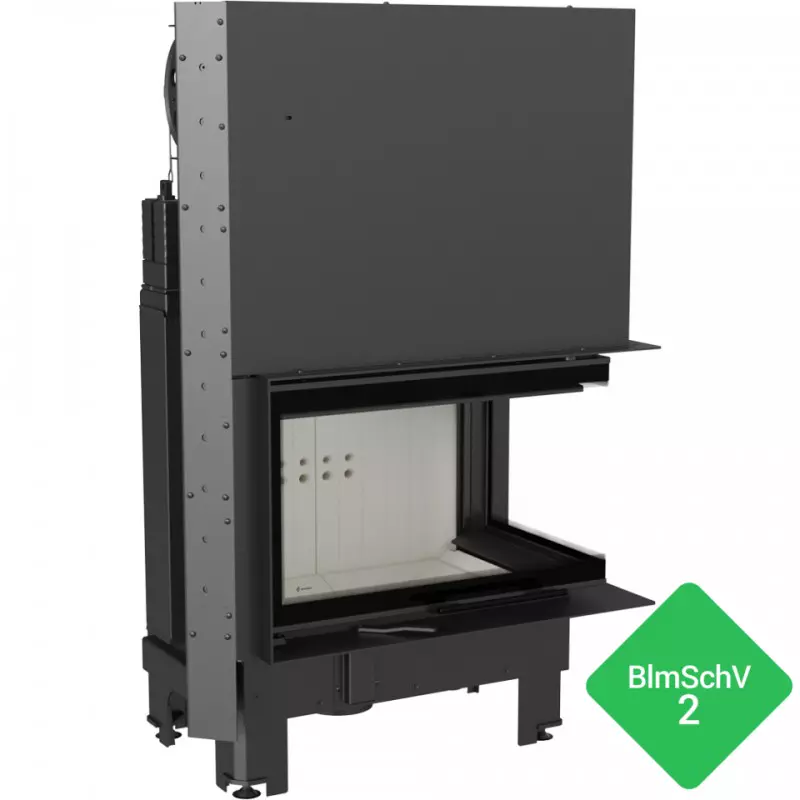

Fireplace insert MBM 10 right BS Gilotyna

Fireplace insert MBM 10 right BS Gilotyna View larger
Previous Next

5901350049495

Manufacturer: KRATKI
KRATKI

2 891,89 USD

Payment and delivery

Transport Costs: Individual calculation
(After placing your order we will send you a non-binding offer containing delivery costs.)

Payment: Bank transfer

Total Rating Total Rating:

0
0/5 - 0 reviews

View ratings
0 1 2 3 40
0 1 2 3 00
0 1 2 0 10
0 1 0 1 20
0 0 1 2 30

 Add Review View Reviews View Reviews

Accessories



General dataUnitMBM/P/BS/G
Rated output[kW]10,0
Range of heating power[kW]4,0 - 13,0
Efficiency[%]81,0
Exhaust outlet diameter[mm]200
Designed for heat recovery unit[-]YES
Fuel type[-]Approved brown coal briquettes,
recommended wood
Weight[kg]240
CO emission (at 13% O 2 ) ≤ given in %[%]0,10
Flue gas temperature[ºC]235
Max log length[cm]50
Dust emission[mg/Nm3]28
Compliance with BlmSchV 2 standard[-]YES
Recommended ventilation area of the air outlet grid[cm2]≥700
Recommended ventilation area of the air intake grid[cm2]≥500
Glazing type[-]side
Opening of the doors[-]To the left, upwards
Material[-]steel

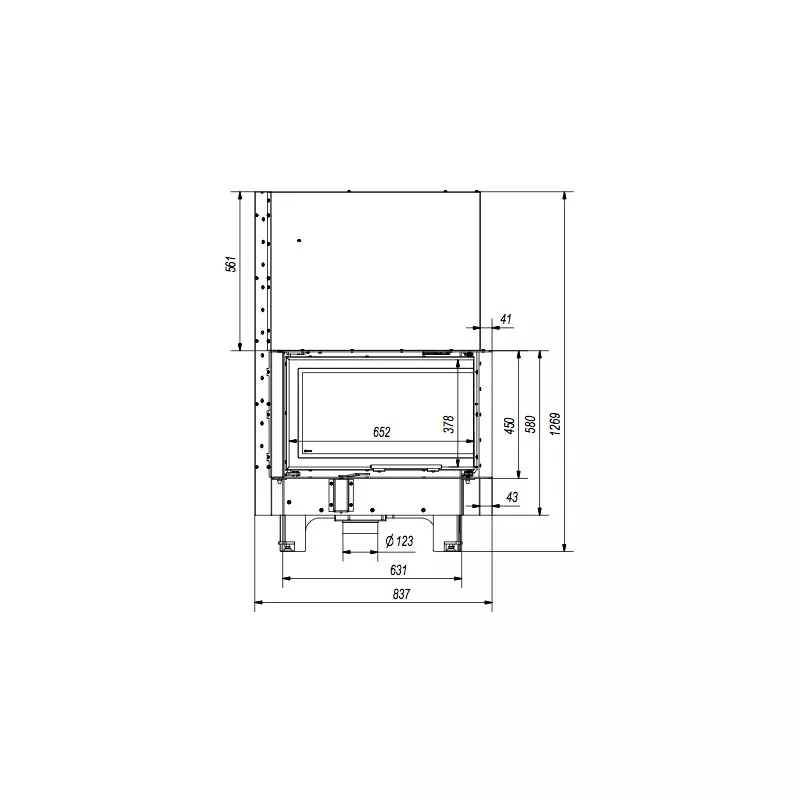

Width[cm]83,70
Height[cm]126,90

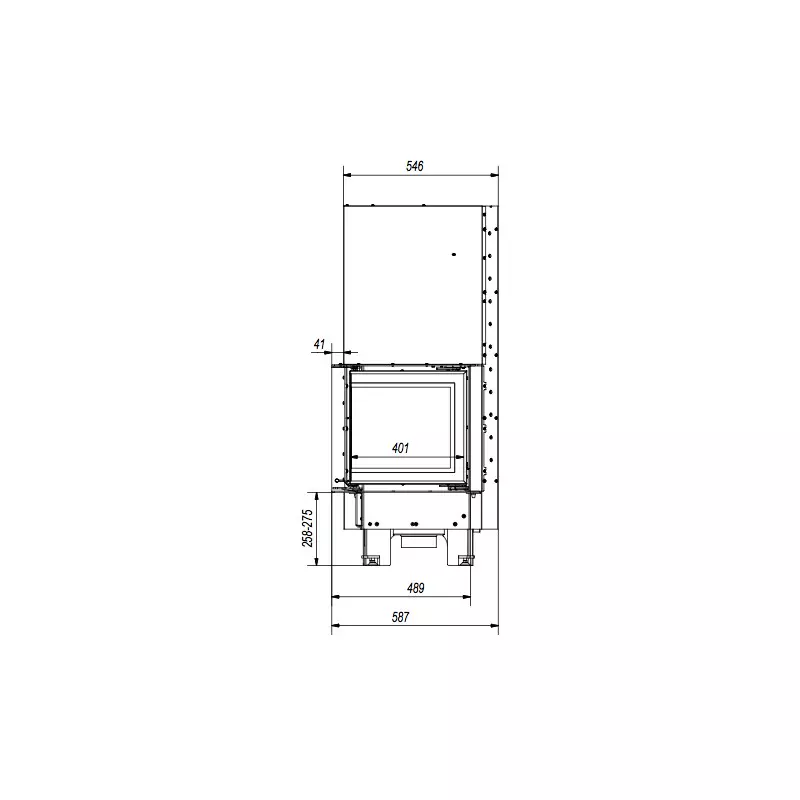

Depth[cm]54,60
External air inlet[-]YES
The liner of the combustion chamber[-]YES
Ashpan[-]NO
Decorative printed glass[-]YES
Self-closing door (option)[-]YES
The energy efficiency index EEI[-]106,71

Data sheet

Power [ kW ]10
Efficiency [ % ]81
ClassBImSchV 2
Weight [ kg ]240
Height [ mm ]154
Width [ mm ]837
Depth [ mm ]546

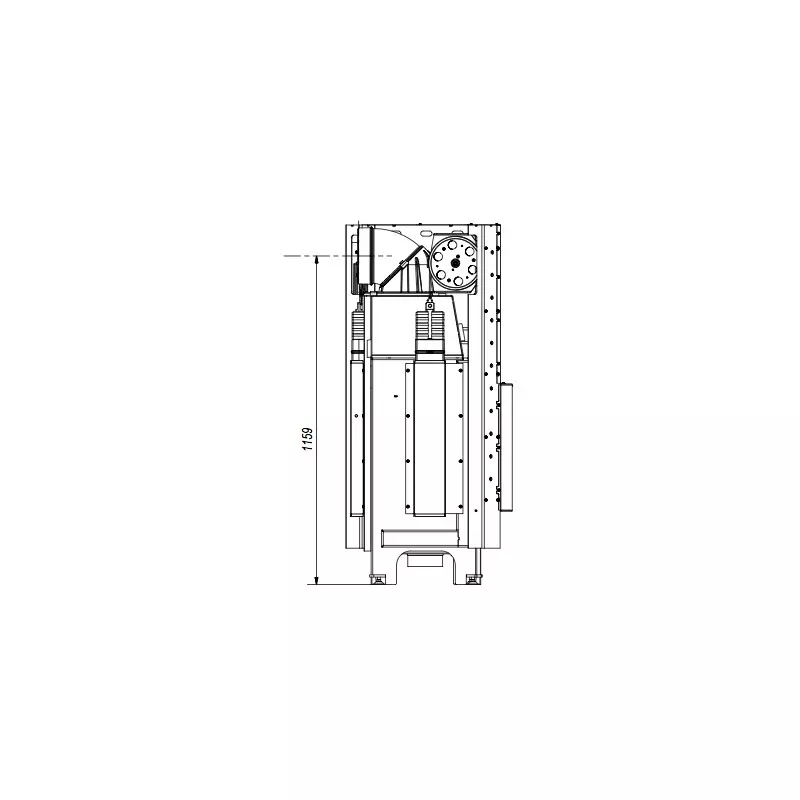

Distance from flooring to exhaust gas pipe base [ mm ]1,060.500

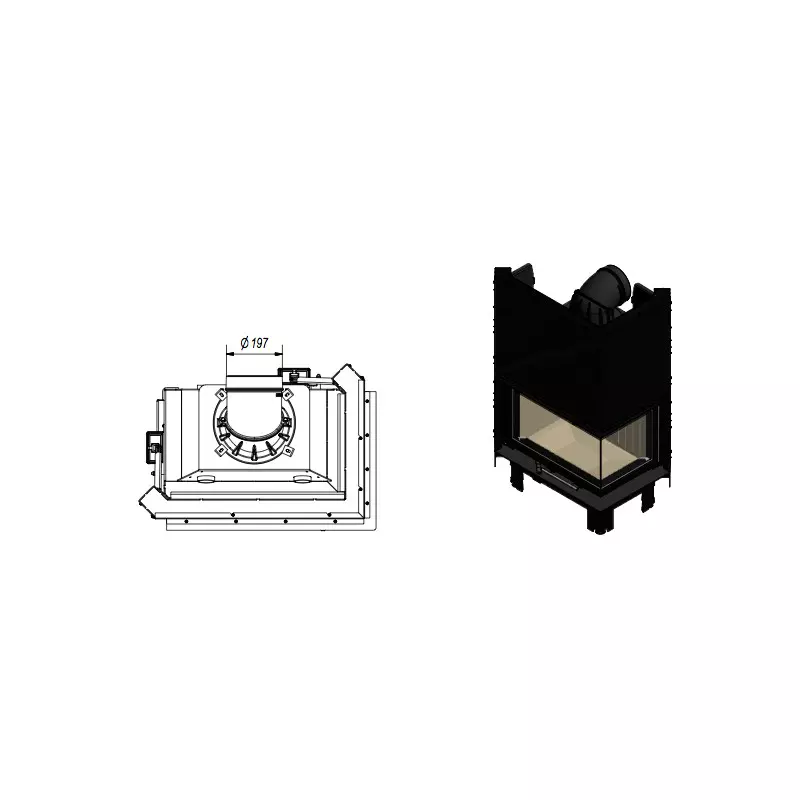

Exhaust gas pipe size [ mm ]197
Chamber depth [ mm ]500
Grate barNO
Fuelwood, YES
