> >>Fireplace insert MBN 12 kW right BS

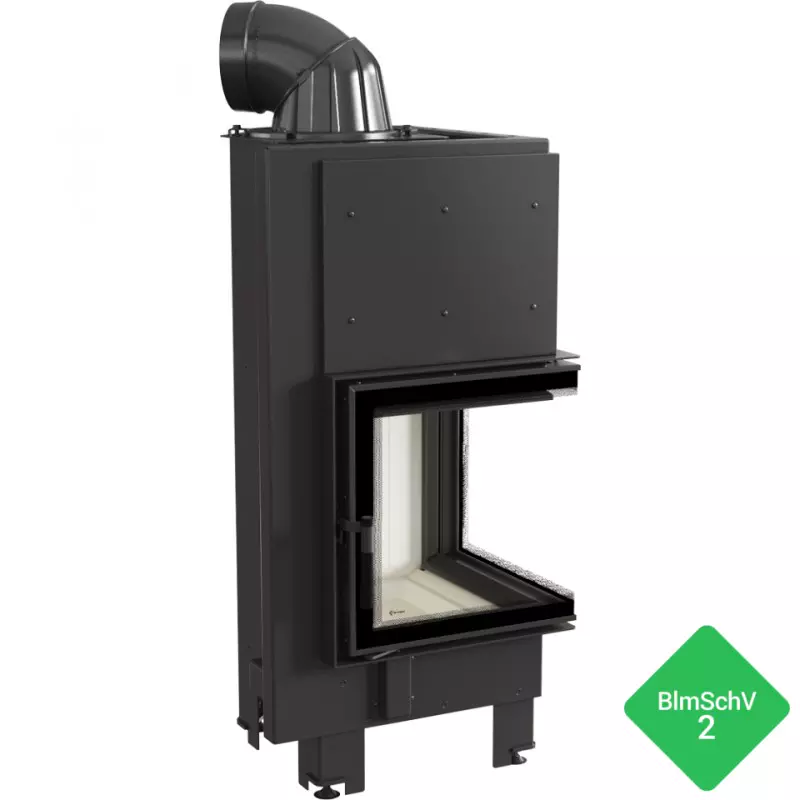

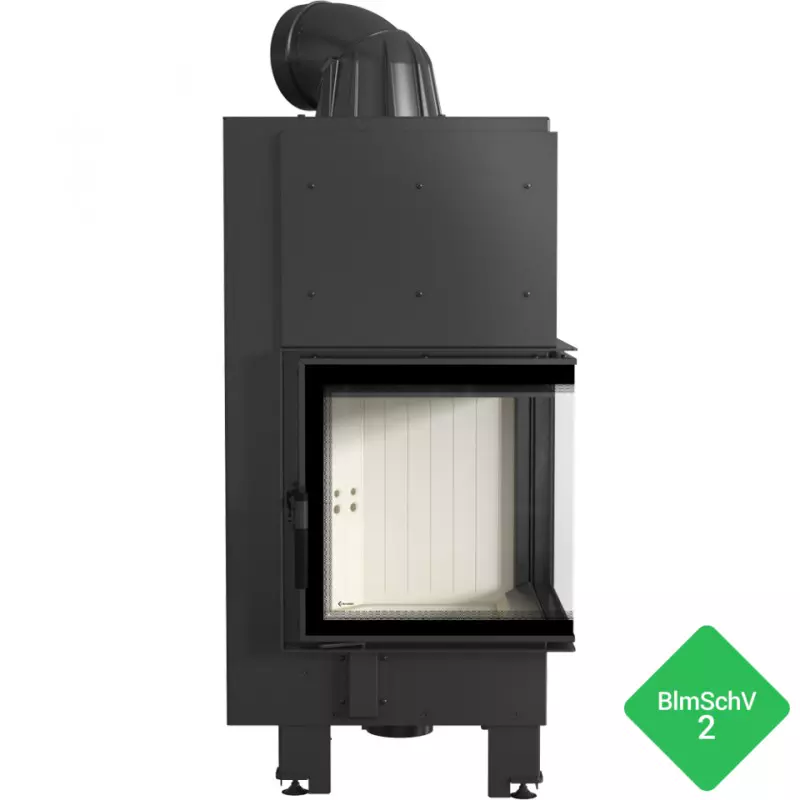

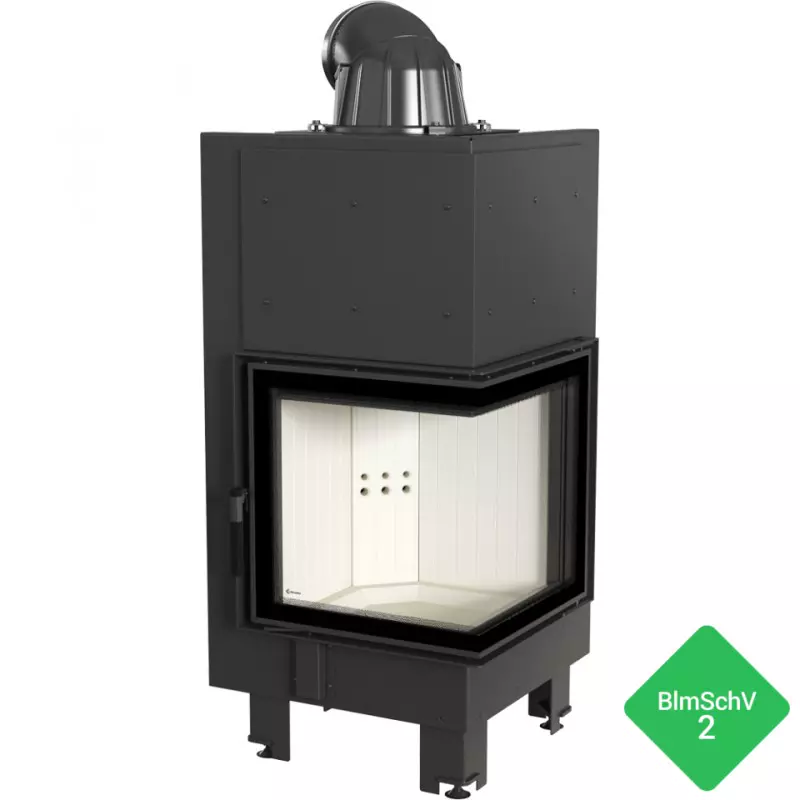

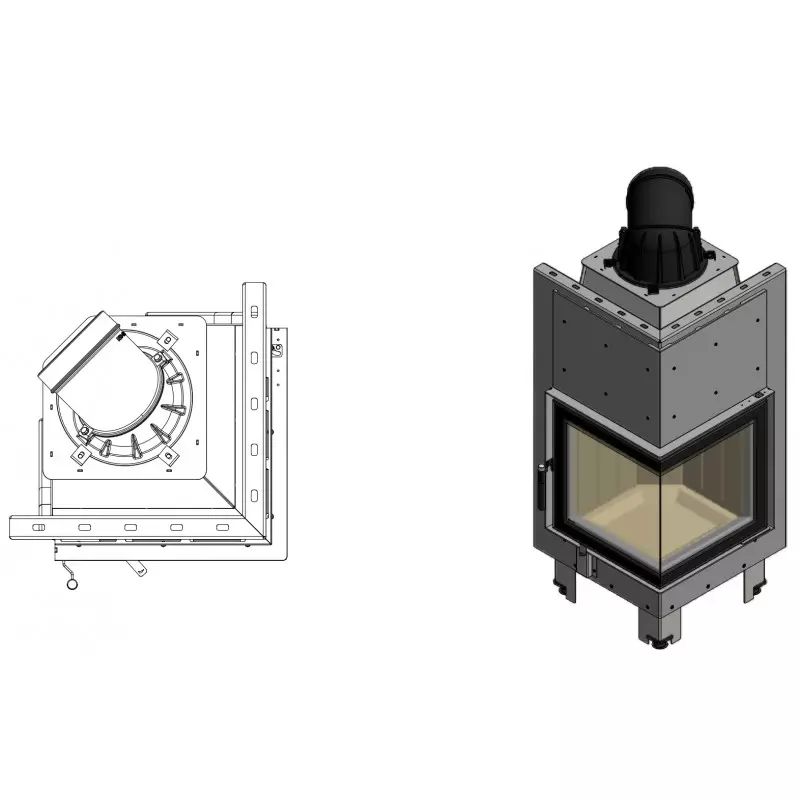

Fireplace insert MBN 12 kW right BS

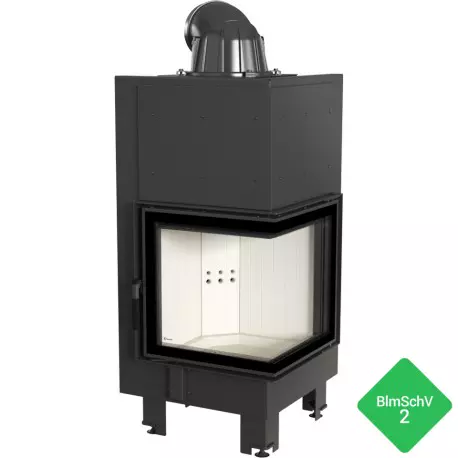

Wkład kominkowy MBN 12 kW prawy BS View larger
Previous Next

5901350080801

Manufacturer: KRATKI
KRATKI

7 880,00 PLN tax incl.

Payment and delivery

Transport Costs: Individual calculation
(After placing your order we will send you a non-binding offer containing delivery costs.)

Payment: Bank transfer


Total Rating Total Rating:

0
0/5 - 0 reviews

View ratings
0 1 2 3 40
0 1 2 3 00
0 1 2 0 10
0 1 0 1 20
0 0 1 2 30

 Add Review View Reviews View Reviews

Accessories



General dataUnitMBN/P/BS
Rated output[kW]12,0
Range of heating power[kW]5,0 - 15,0
Efficiency[%]80,0

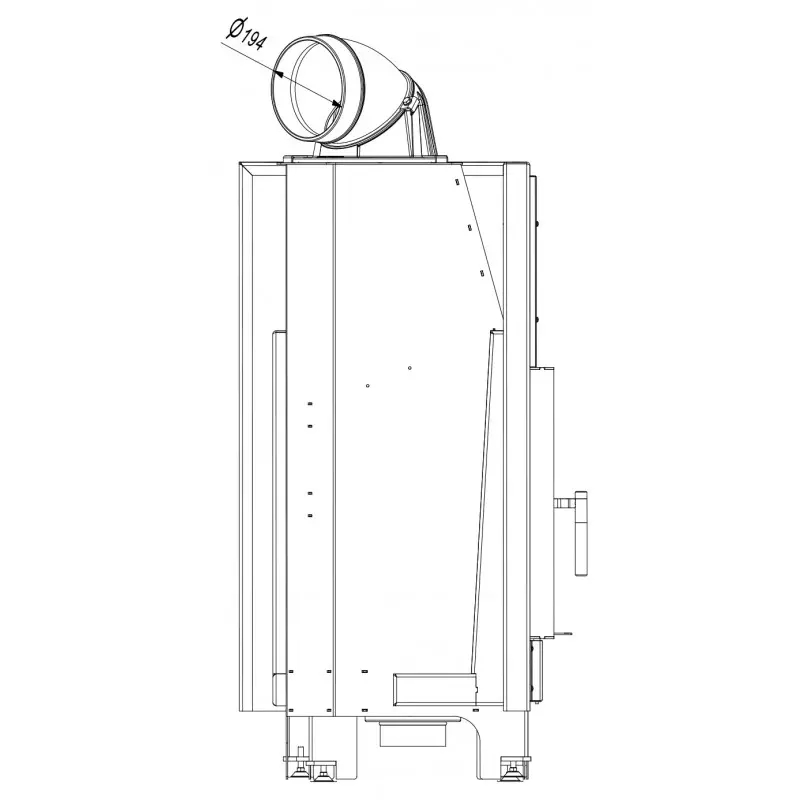

Exhaust outlet diameter[mm]200
Designed for heat recovery unit[-]YES
Fuel type[-]Approved brown coal briquettes,
recommended wood
Weight[kg]160,0
CO emission (at 13% O 2 ) ≤ given in %[%]0,10
Flue gas temperature[ºC]230,0
Dust emission[mg/Nm3]21,0
Max log length[cm]30
Compliance with BlmSchV 2 standard[-]YES
Recommended ventilation area of the air outlet grid[cm2]≥700
Recommended ventilation area of the air intake grid[cm2]≥500
Glazing type[-]side
Opening of the doors[-]To the right
Material[-]steel

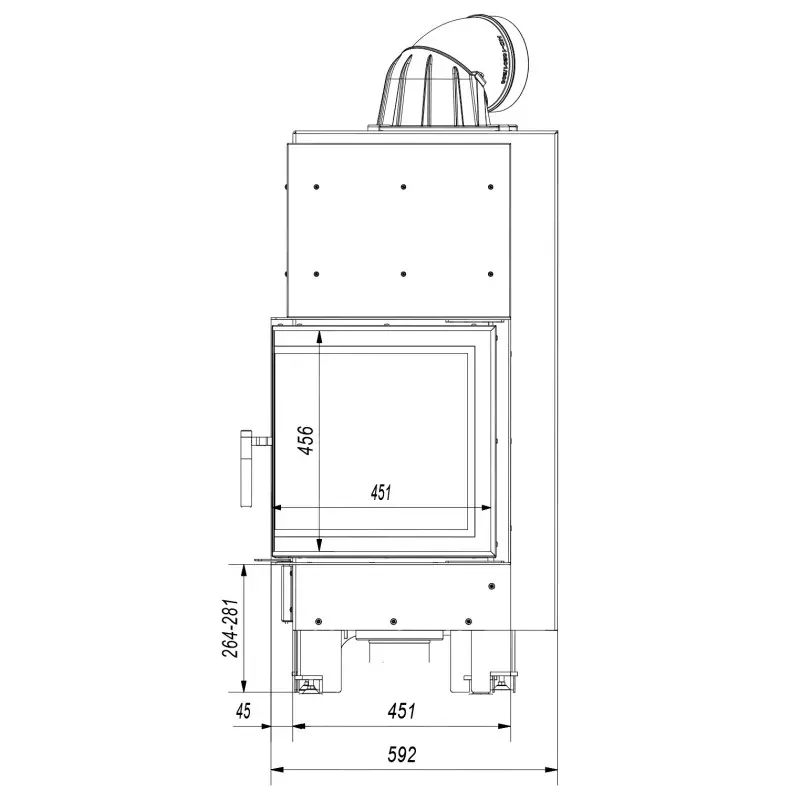

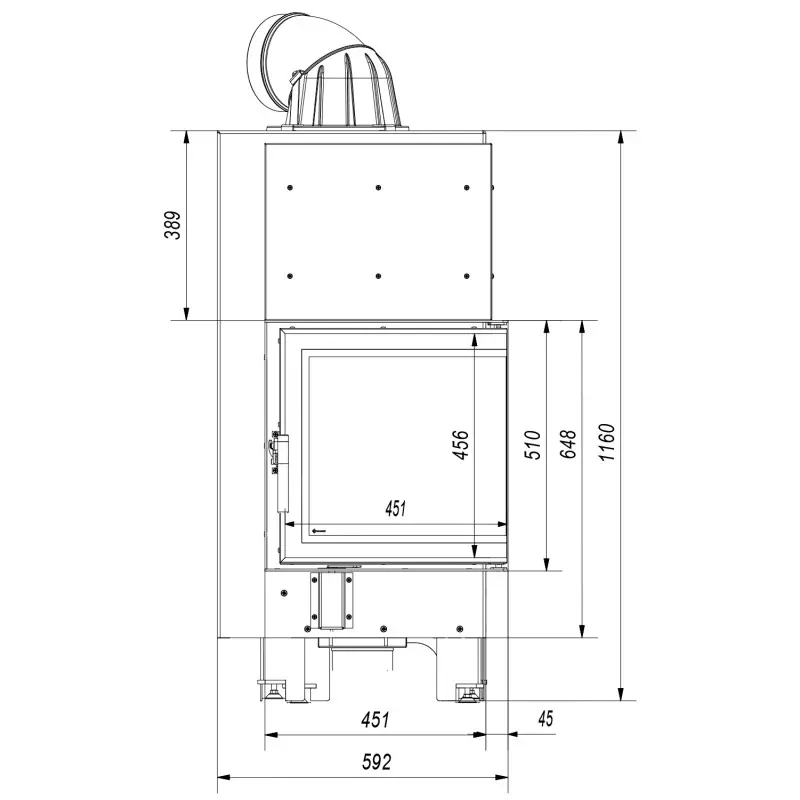

Width[cm]59,20
Height[cm]116,0
Depth[cm]54,70
External air inlet[-]YES
The liner of the combustion chamber[-]YES
Ashpan[-]NO
Decorative printed glass[-]YES
Self-closing door (option)[-]YES
The energy efficiency index EEI[-]105,4

Data sheet

Power [ kW ]12
Efficiency [ % ]80
ClassBImSchV 2
Weight [ kg ]160
Height [ mm ]1,160
Width [ mm ]592
Depth [ mm ]547
Exhaust gas pipe size [ mm ]200
FuelBrown coal briquettes, seasoned leafy tree
Warranty 5 years
