> >>Insolation and Temperature Measuring Device BENNING SUN2

Insolation and Temperature Measuring Device BENNING SUN2

Insolation and Temperature Measuring Device BENNING SUN2 View larger

4014651504202

050420

728,28 USD

Payment and delivery

Transport Costs: Individual calculation
(After placing your order we will send you a non-binding offer containing delivery costs.)

Payment methods for the goods:

Bank transfer – eligible for a 2% discount for orders from Poland (others without discount)
Cash on delivery – always without discount, available only in Poland and the Czech Republic (up to 8,000 PLN or 16,000 CZK, rest in bank trasfer)
P24 – operator’s payment gateway, no discount for orders from Poland, others +2%

Add to wishlist

Total Rating Total Rating:

0
0/5 - 0 reviews

View ratings
0 1 2 3 40
0 1 2 3 00
0 1 2 0 10
0 1 0 1 20
0 0 1 2 30

 Add Review View Reviews View Reviews



BENNING SUN 2 is the ideal device for planning, commissioning and periodic maintenance of photovoltaic networks installed in accordance with EN 62446. Device works in conjunction with BENNING PV 1-1, BENNING PV 2 and BENNING PV 3. Solar measurement (W/m) is carried out in accordance with EN 62446 for photovoltaic and solar systems. Meter has a two-channel temperature sensor, which allows simultaneous measurement temperature of PV module and the environment. An integrated compass and an inclinometer enable precise measurement of roof orientation and pitch angle. Memory of the meter is able to accommodate 5000 indications, and built-in real-time clock with date facilitates their identification.

BENNING SUN 2
displaygraphic display
insolation measuring rang resolultion / accuracy100 – 1250 Wm2 or 30 – 400 BTU/h/ft2
1 Wm2 or 1 BTU/h/ft2 / ± (5 % + 5 digits)
temperature (module / ambient) measuring rang resolultion / accuracy- 30 °C to + 125 °C
1 °C / ± 1 °C
compass bearing (orientation) measuring rang resolultion / accuracy0° – 360°
1° / ± 10°
inclinometer measuring rang resolultion / accuracy0° - 80°
1° / ± 2°
real-time clockdate / time stamp
measured value memory5.000 display indications
interfaceUSB
scope of deliverycase, protective rubber holster, module/ ambient temperature sensor, batteries, USB cable, download software (CD), calibration certificate

Measuring functions

  • sunshine measurement in W/m2 or BTU/h/m2
  • two-channel temperature sensor for measuring module temperature and ambient temperature
  • digital compass for determining direction
  • inclinometer

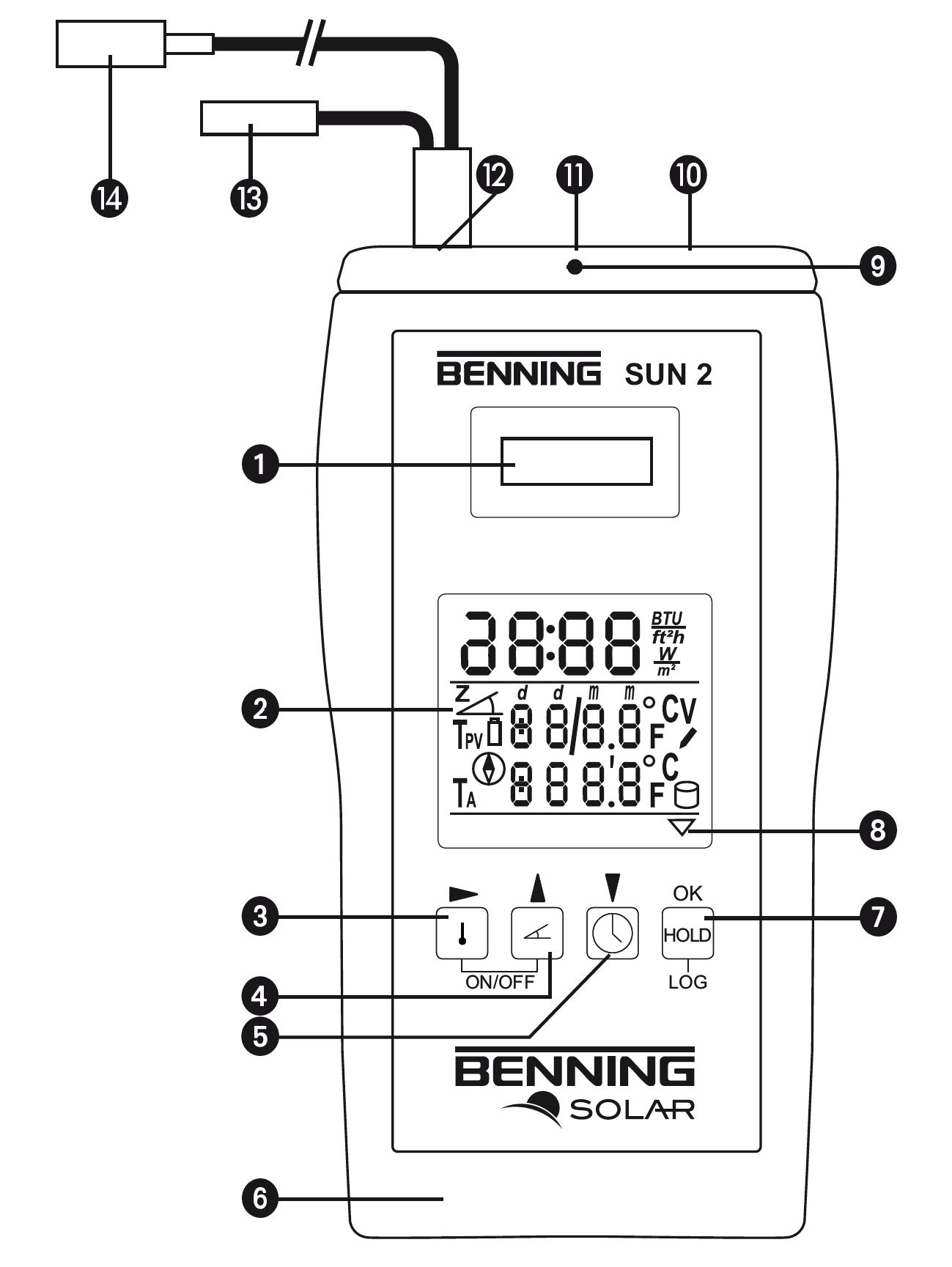

BENNING SUN 2
  1. Radiation sensor (PV reference cell) for solar radiation measurement
  2. Digital display of measured value, solar radiation, module / ambient temperature, inclination angle and compass bearing
  3. Button, for measuring module temperature and ambient temperature
  4. Button, for measuring tilt angle and compass bearing
  5. Button, for displaying / setting the time / date
  6. Battery compartment at the back
  7. Button to temporarily save the display or to confirm OK / LOG
  8. HOLD indicator after pressing the HOLD button
  9. Compass bearing designation
  10. USB port for connecting the USB connection cable
  11. Slot (Link), for other BENNING products
  12. Socket (Probe), for connecting temperature sensors
  13. Ambient temperature sensor
  14. Module temperature sensor
  15. Protective rubber, holster
