Boiler for wood chips ECO QUENTIN

The boiler is intended for water heating installation where the water temperature at the exit doesn't exceed 95%deg;C. The Device can work in both installation in the gravity water circuit or in a forced circumference. The boiler can only work in open installation.

In order to increase the efficiency and safety of the boiler operation, the manufacturer will install a chimney draft limiter in or on the chimney.

PARAMETERS

Parameters	Unit S.I.	ECO QUENTIN 22	ECO QUENTIN 40
Rated heating power	[kW]	22	40
Heating surface	[m²]	150-250	250-450
Fuel consumption at maximum power	[kg/h]	5,3	9,5
Weight boiler	[kg]	630	840
Class 5 PN EN 303-5:2012	[-]	5	5
ECODESIGN	[-]	+	+
Water capacity	[L]	100	200
Chimney draft	[Pa]	17	17
Chimney height	[m]	6	8
Cross-section of the chimney	[mm]	160-250	160-250
Working pressure	[MPa]	0,15	0,15
Container capacity	[dm³]	360 (6 Säcke)	700 (13 Säcke)
Heating efficiency	[%]	88,4	88,4
Surface of the heated room	[m²]	150-250	250-450
Cross section of the chimney	[mm]	160	200
Type and voltage of the power supply	[V]	∼230/50Hz	∼230/50Hz
Energy consumption at max. thermal power	[W]	33	33
Power consumption in standby mode	[W]	3	3
Energy efficiency ratio	[Klasse]	A+	A+

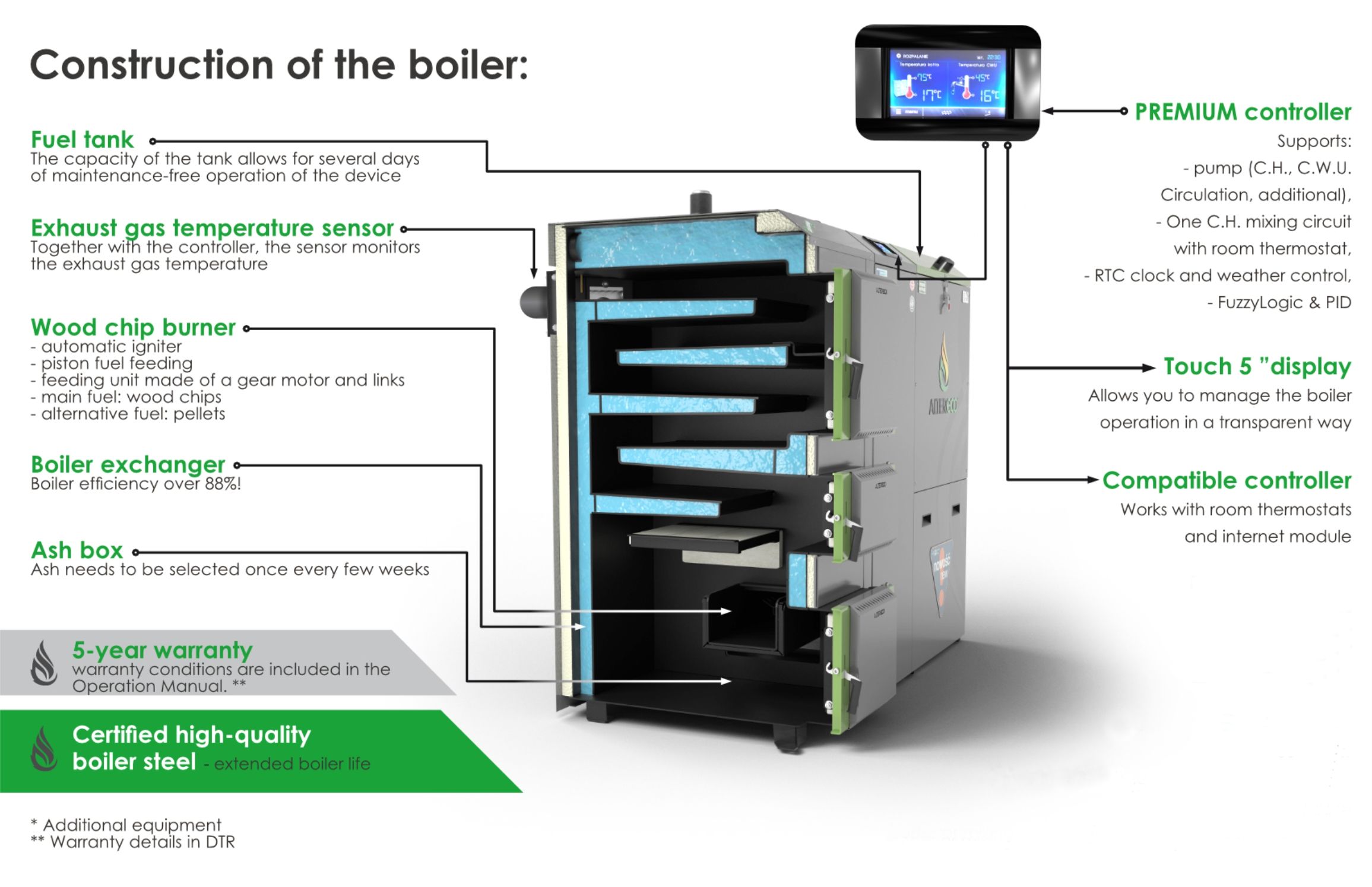

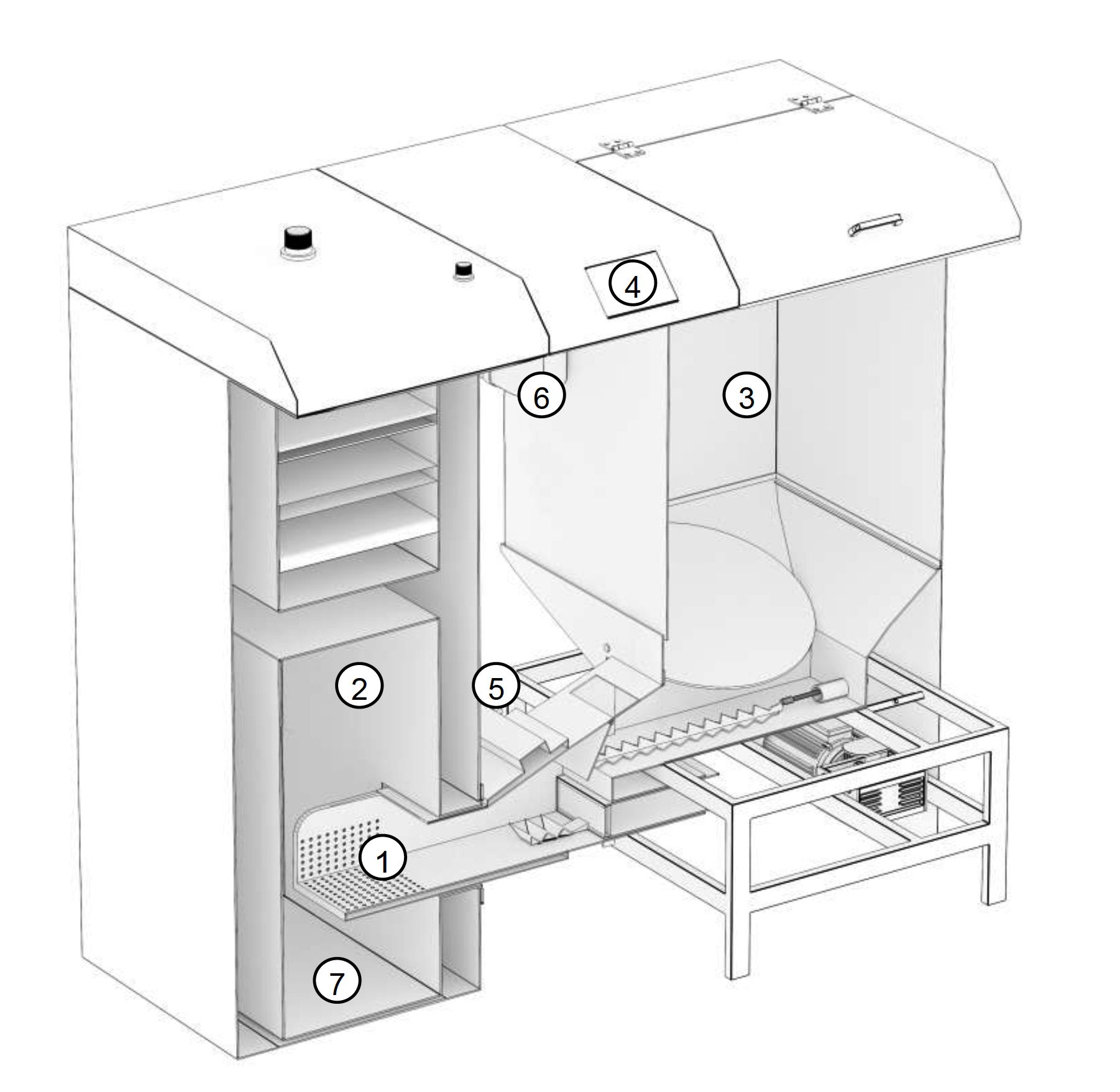

BOILER ELEMENTS

Chamber hearth
Ceramic catalyst
Container
Controller
Blower
Fire extinguishing system
Ashpan

DIMENSIONS OF QUENTIN BOILERS

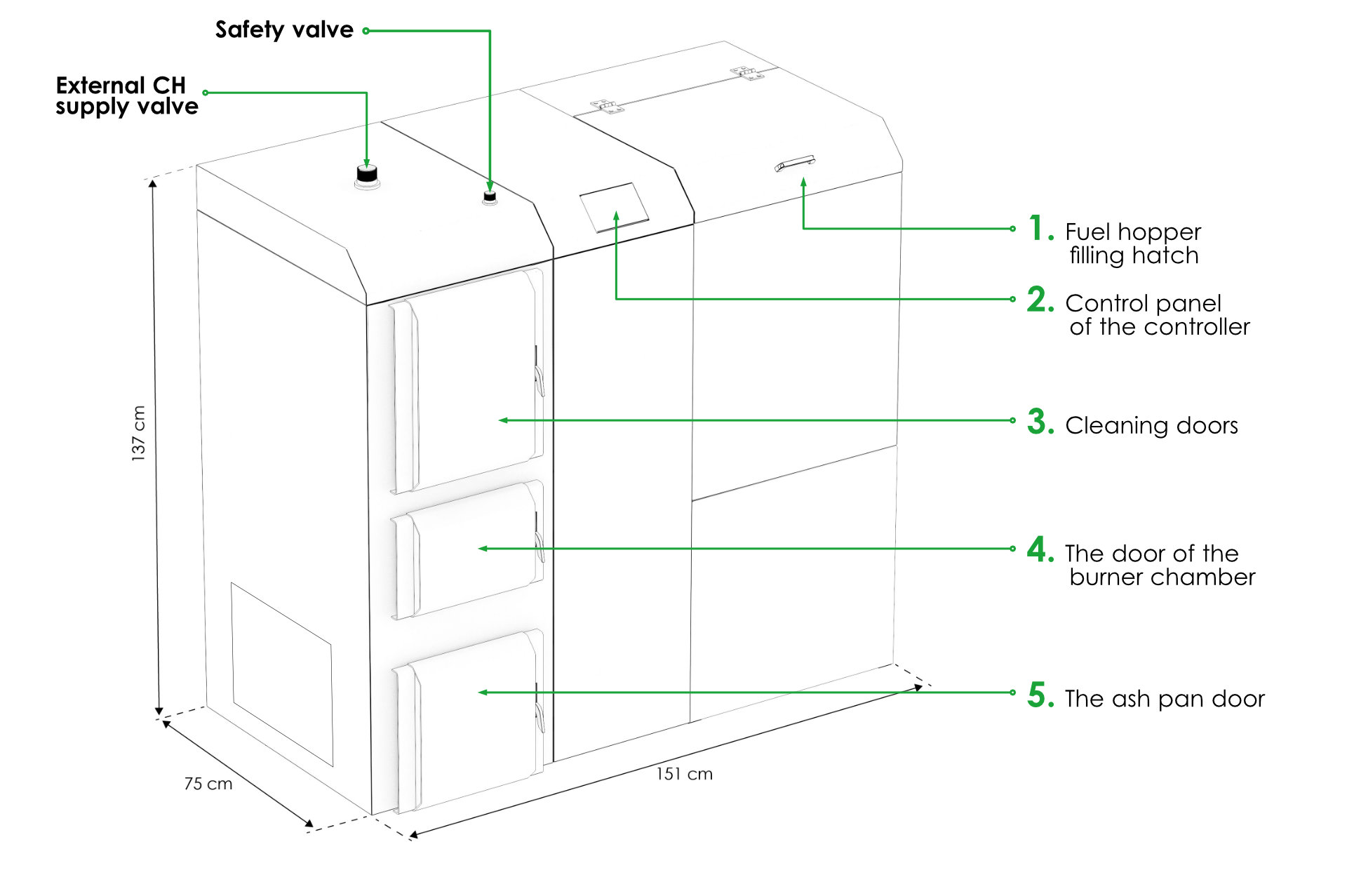

Boiler power 22 kW

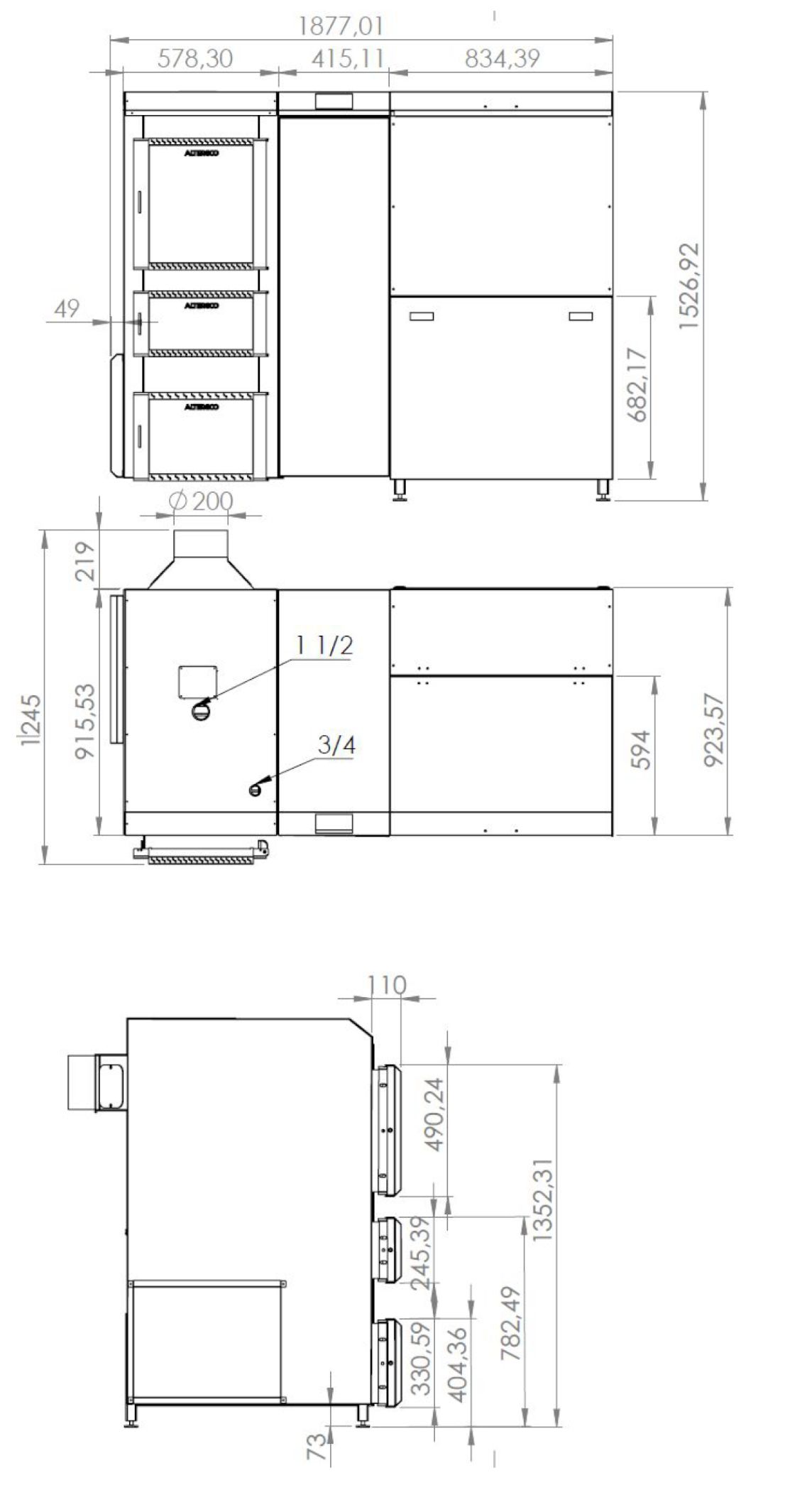

Boiler power 40 kW

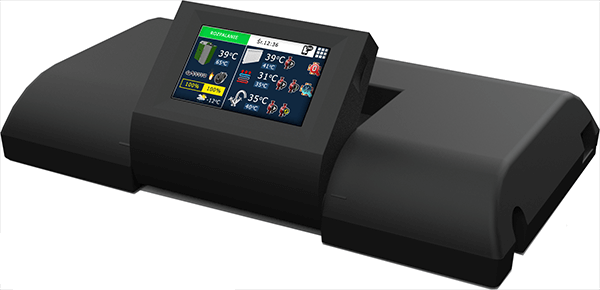

ecoMAX920 controller

indicates the operating parameters on the screen weather control room for central heating and hot water circulation controls a three-way or four-way valve panel built into the boiler casing firmware update via microSDHC card or miniUSB card configurable output H (alarms, reserve boiler, circulation pump) expansion with additional B and C modules, Summer / Winter mode, professional heating adaptive mixer control cooperation via ISM and WiFi radio with remote control panels or thermostats, the ecoNET300 internet module and the ecoNET.apk application, which allows you to manage the entire heating system online

Warranty:

Heat exchanger - tightness of the boiler - 5 years
Controller - 2 years

PRESANTATION VIDEO:

Data sheet

Power [ kW ]	22
Power [ kW ]	40
Power [ kW ]	22
Power [ kW ]	22
Power [ kW ]	22
Power [ kW ]	40
Power [ kW ]	40
Power [ kW ]	40
Weight [ kg ]	630
Weight [ kg ]	840
Weight [ kg ]	630
Weight [ kg ]	840
Weight [ kg ]	630
Weight [ kg ]	840
Weight [ kg ]	840
Weight [ kg ]	630
Height [ mm ]	1,346
Height [ mm ]	1,346
Height [ mm ]	1,526
Height [ mm ]	1,526
Height [ mm ]	1,526
Height [ mm ]	1,526
Height [ mm ]	1,346
Height [ mm ]	1,346
Width [ mm ]	1,877
Width [ mm ]	1,877
Width [ mm ]	1,551
Width [ mm ]	1,551
Width [ mm ]	1,551
Width [ mm ]	1,877
Width [ mm ]	1,877
Width [ mm ]	1,551
Depth [ mm ]	1,245
Depth [ mm ]	1,073
Depth [ mm ]	1,073
Depth [ mm ]	1,245
Depth [ mm ]	1,245
Depth [ mm ]	1,073
Depth [ mm ]	1,245
Depth [ mm ]	1,073
Exhaust gas pipe size [ mm ]	200
Exhaust gas pipe size [ mm ]	200
Exhaust gas pipe size [ mm ]	160
Exhaust gas pipe size [ mm ]	160
Exhaust gas pipe size [ mm ]	160
Exhaust gas pipe size [ mm ]	200
Exhaust gas pipe size [ mm ]	200
Exhaust gas pipe size [ mm ]	160
Feeder capacity [ dm³ ]	700
Feeder capacity [ dm³ ]	360
Feeder capacity [ dm³ ]	700
Feeder capacity [ dm³ ]	700
Feeder capacity [ dm³ ]	360
Feeder capacity [ dm³ ]	360
Feeder capacity [ dm³ ]	360
Feeder capacity [ dm³ ]	700
Water capacity [ L ]	100
Water capacity [ L ]	200
Water capacity [ L ]	100
Water capacity [ L ]	200
Water capacity [ L ]	200
Water capacity [ L ]	100
Water capacity [ L ]	200
Water capacity [ L ]	100
Efficiency [ % ]	93
EcoDesign	wood chips
Class	5
Thread type	External thread (GZ)
Outlet and inlet supply size [ inch ]	⁶⁄₄''
Installation	Vertical, Floor, Internal
Max. working temperature [ °C ]	95
Max. operating pressure [ bar ]	15
Min chimney draft [ Pa ]	17
Ventilator	Pressure
Burner	Chute
Mains voltage [ V ]	230
Fuel	wood chips
Warranty	5 years for tightness of the heat exchanger
Granulation [ mm ]	1-40
Other	automatic fuel igniter
