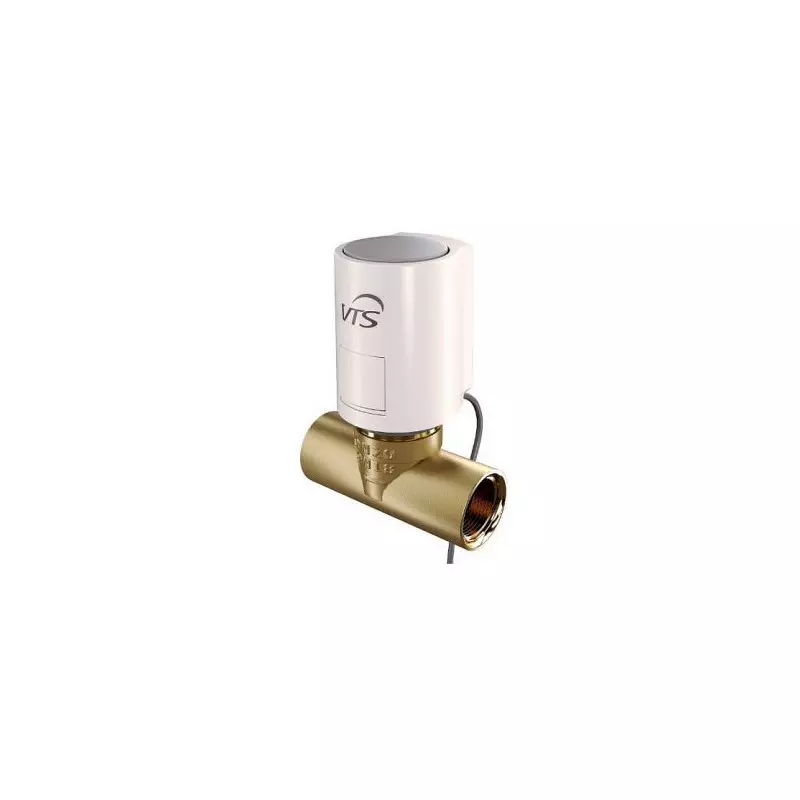

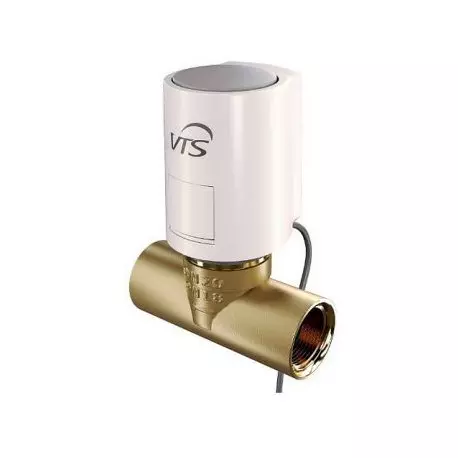

Valve with actuator for Volcano

20196

Manufacturer: VTS
VTS

68,29 USD

Payment and delivery

Transport Costs: Individual calculation
(After placing your order we will send you a non-binding offer containing delivery costs.)

Payment methods for the goods:

Bank transfereligible for a 2% discount for orders from Poland (others without discount)
Cash on delivery – always without discount, available only in Poland and the Czech Republic (up to 8,000 PLN or 16,000 CZK, rest in bank trasfer)
P24 – operator’s payment gateway, no discount for orders from Poland, others +2%

Add to wishlist

Total Rating Total Rating:

0
0/5 - 0 reviews

View ratings
0 1 2 3 40
0 1 2 3 00
0 1 2 0 10
0 1 0 1 20
0 0 1 2 30

 Add Review View Reviews View Reviews



Valve
  • connection diameter: 3/4”
  • mode: Two-step switch ON-OFF
  • maximum pressure difference: 90 kPa
  • pressure class : PN 16
  • kvs flow ratio: 6,5 m3/h
  • max. heating medium temperature: 93°C
  • ambient temperature: 2 …40°C
Actuator
  • power consumption: 7 VA
  • supply voltage: 230V AC +/- 10%
  • closing/opening time: 4-5 /9-11 s
  • position without supply: closed
  • protection rating: IP44
  • parameters of the working conditions: 2… 40°C

Data sheet

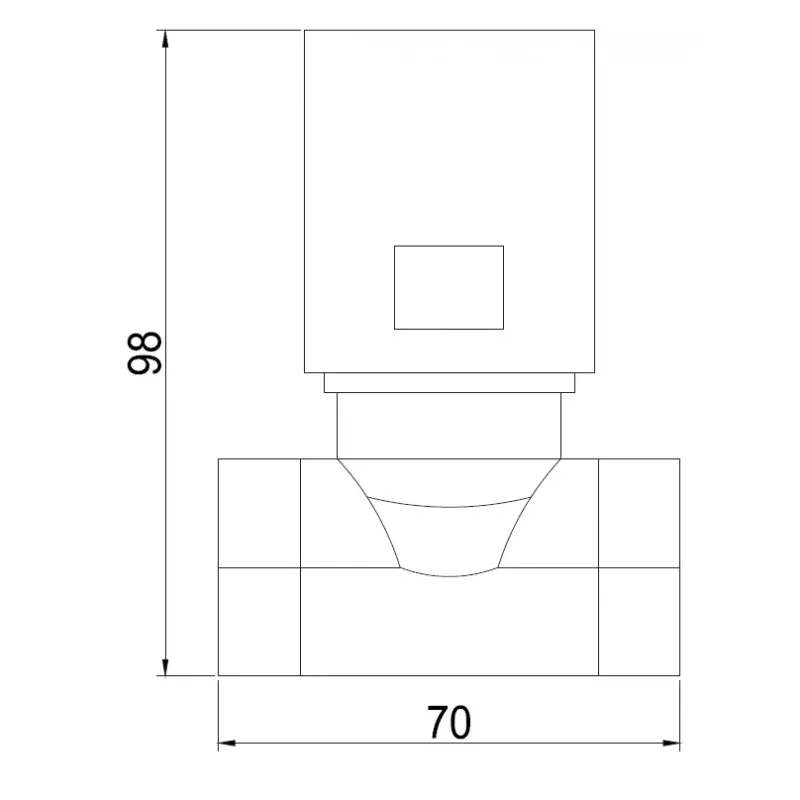

Height [ mm ]98
Width [ mm ]70
Thread typeInternal thread (GW)
Outlet and inlet supply size [ inch ]34''
Max. working temperature [ °C ]93
Mains voltage [ V ]230
Flow coefficient kv [m3/h]6.5
