Laddomat 11-30 with electronic pump - R25 - LM9A

38664

11112663

342,86 USD

Payment and delivery

Transport Costs: Individual calculation
(After placing your order we will send you a non-binding offer containing delivery costs.)

Payment methods for the goods:

Bank transfereligible for a 2% discount for orders from Poland (others without discount)
Cash on delivery – always without discount, available only in Poland and the Czech Republic (up to 8,000 PLN or 16,000 CZK, rest in bank trasfer)
P24 – operator’s payment gateway, no discount for orders from Poland, others +2%

Add to wishlist

Total Rating Total Rating:

0
0/5 - 0 reviews

View ratings
0 1 2 3 40
0 1 2 3 00
0 1 2 0 10
0 1 0 1 20
0 0 1 2 30

 Add Review View Reviews View Reviews
Loading...



Technical dataLaddomat 11-30
Thermostat cartridge63ºC
PumpLM6A, 130mm
Connection1" (R25)
Max. boiler output60kW
Kvs-value3,4 m3/h
Pressure classPN 6
Max. temp100ºC
Min. temp5ºC

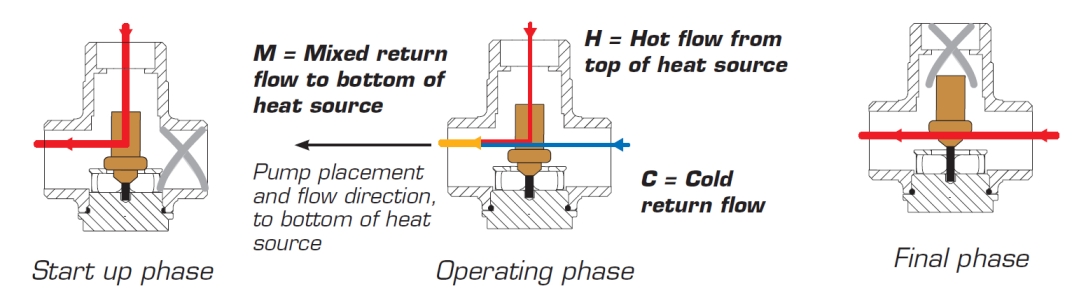

Laddomat 11-30 63ºC
Laddomat

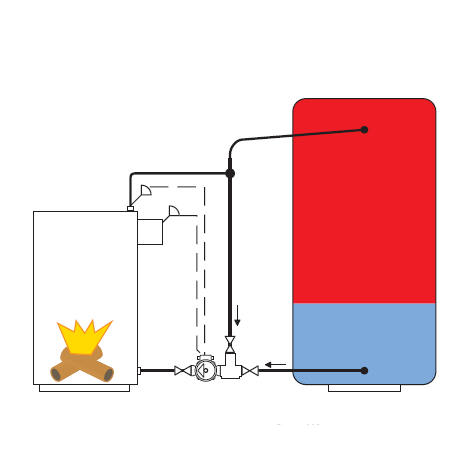

Shut off valves are installed to facilitate servicing. Laddomat 11 should be placed low to avoid keeping the valve hot.

Laddomat 11-30

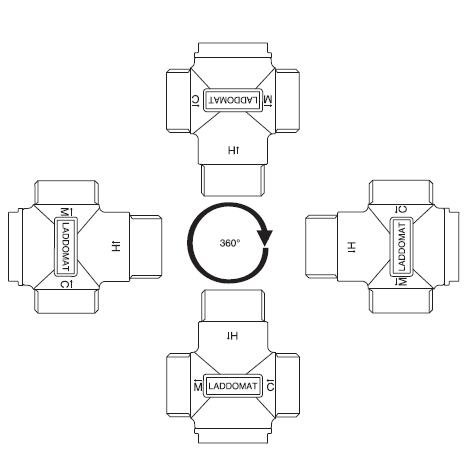

The installation position does not affect the function of the valve. The lines must be connected to the correct port on the valve.

Data sheet

Thread type1''
InstallationHorizantal, Vertical, Internal
Max. working temperature [ °C ]100
Min. working temperature [ °C ]5
Opening temperature [ °C ]63
Flow coefficient kv [m3/h]3.4
