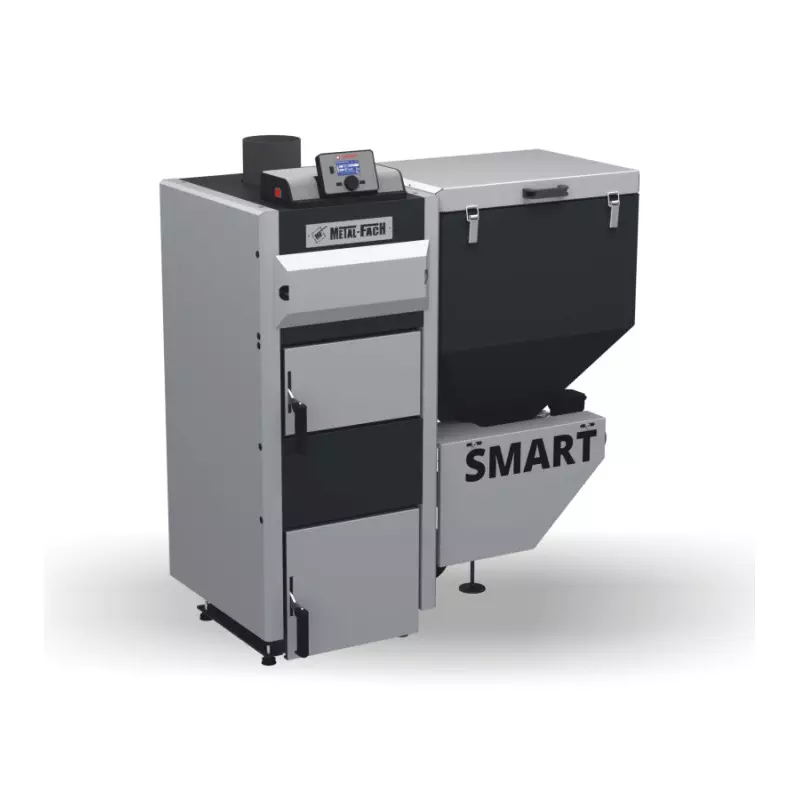

Metal-Fach Smart Eko boiler
Metal-Fach Smart Eko boiler is used for central heating installation together with automatic fuel feeding that burns eco-pea fuel. The furnace is made of high quality 6 mm boiler steel.
As a standard, the ST-483 controller is installed, which operates 2 pumps and a room thermostat.
The boiler has a cast iron burner EKOENERGY, resistant to corrosion, abrasion and high temperature. The burner burns fuel with a granulation of 0-32mm, the cast iron worm has a countercoil, and above the burner there is a ceramic deflector.
Furnaces of this series have received certificates: ECO DESING and the ecological safety mark 5 CLASSES. Obtained certificates qualify the boiler to the group of products that can be offered in local government programs with co-financing.
| PARAMETERS | SI UNIT | MODEL BOILER | ||||
| SMART ECO 12 | SMART ECO 15 | SMART ECO 20 | SMART ECO 25 | SMART ECO 30 | ||
| Nominal thermal power | [kW] | 12 | 15 | 20 | 25 | 30 |
| Boiler power range | [kW] | 3,6 - 12 | 4,5 - 15 | 6 - 20 | 7,5 - 25 | 9 - 30 |
| heating surface | [m2] | 1,63 | 1,63 | 2,0 | 2,6 | 3,08 |
| Maximum allowed to warm | [m2] | 110 | 110 - 150 | 150 - 200 | 200 - 250 | 250 - 300 |
| water capacity | [L] | 48 | 48 | 60 | 71 | 80 |
| Maximum operating pressure | [bar] | 3 | ||||
| The maximum operating temperature | [ºC] | 95 | ||||
| test pressure | [bar] | 4,5 | ||||
| class boiler | [-] | 5 | ||||
| EKO DESIGN | [-] | + | ||||
| boiler efficiency | [%] | ≤91 | ||||
| Fuel tank capacity | [L] | 200 | ||||
| Fuel | [-] | coal Φ0-32 | ||||
| Electrical connection | [-] | ~230V; 50 Hz, 1,5~ | ||||
| Setting range temperature controller | [ºC] | 60-85 (co 1°C) | ||||
| Required chimney draft | [Pa] | 20 | 20 | 20 | 23 | 30 |
| Computational flow resistance Dt [20K] | [mbar] | 1,36 | 1,36 | 2,43 | 3,80 | 4,3 |
| Computational flow resistance Dt [10K] | [mbar] | 5,47 | 5,47 | 9,74 | 12,33 | 15,8 |
| Weight of boiler | [kg] | 350 | 360 | 410 | 460 | 482 |
| TYPE | SMART EKO 12 | SMART EKO 15 | SMART EKO 20 | SMART EKO 25 | SMART EKO 30 |
| A | 1250 | 1250 | 1250 | 1300 | 1300 |
| B | 545 | 545 | 545 | 590 | 590 |
| C | 1300 | 1300 | 1350 | 1350 | 1450 |
| D | 545 | 545 | 615 | 710 | 710 |
| E | 1100 | 1100 | 1150 | 1150 | 1250 |
| F | 375 | 375 | 445 | 535 | 353 |
| G | 3/4" | 3/4" | 3/4" | 3/4" | 3/4" |
| H | 1,5" | 1,5" | 1,5" | 1,5" | 1,5" |
| I | 160 | 160 | 160 | 160 | 180 |
| J | 1,5" | 1,5" | 1,5" | 1,5" | 1,5" |
| K | 140 | 140 | 140 | 140 | 140 |
| L | 115 | 115 | 115 | 115 | 115 |
| M | 680 | 680 | 680 | 680 | 680 |
| N | 610 | 610 | 620 | 620 | 620 |
| O | 140 | 140 | 140 | 140 | 140 |
Data sheet
| EcoDesign | YES, pea coal |
| Class | 5 |
| Installation | Vertical, Floor, Internal |
| Feeder | YES |
| Burner | Cast iron |
| Warranty | 5 years for tightness of the heat exchanger |
