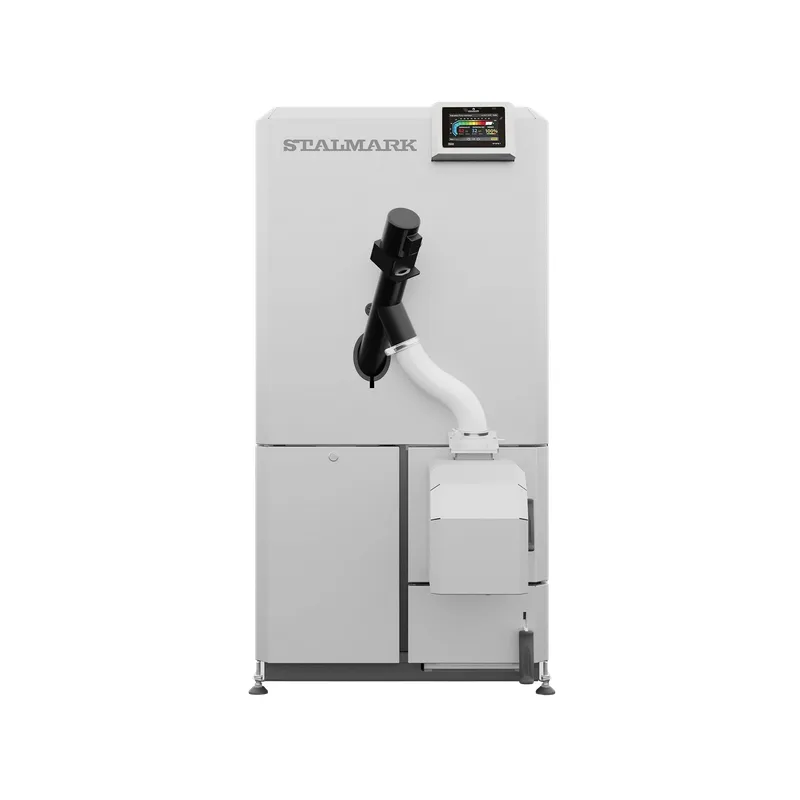

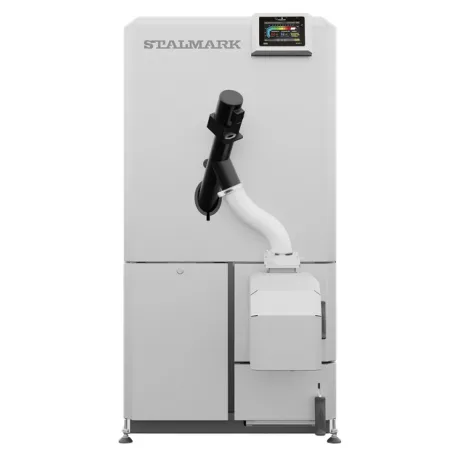

Eko Box II – The Ideal Solution for Clean and Convenient Boiler Rooms

Eko Box II is a technologically advanced pellet boiler, designed with convenience, cleanliness, and modern home heating solutions in mind. It is an excellent choice for small, compact boiler rooms where efficiency and space-saving are crucial.

Compact Design and High Efficiency

The design of the Eko Box II boiler with a built-in pellet tank enables efficient heating for homes with an area from 60 to 230 m². The boiler is equipped with a large pellet tank, holding 120 to 140 liters, allowing for extended operation without the need to refuel.

Automatic Self-Cleaning Functions

The device is equipped with a self-cleaning burner and a self-cleaning heat exchanger, which minimizes maintenance needs and allows for prolonged maintenance-free use. Thanks to this feature, users can enjoy not only efficient but also highly convenient heating.

Advanced Electronics and Control

The Eko Box II comes with electronics that allow connection to up to five heating system pumps and two mixing valves. Additionally, it can be upgraded with internet boiler control or connected to a room thermostat, making it an ideal choice for users who value modernity and convenience.

Eco-Friendly and Eligible for "Clean Air" Program Grants

With particulate emissions below 20 mg/m³ of exhaust, Eko Box II meets the highest ecological standards, qualifying for maximum grants under the "Clean Air" program. It is therefore not only beneficial for the user but also environmentally friendly.

Boiler Advantages

  • Warranty: 60 months on heat exchanger tightness
  • Automatic Cleaning: pellet burner
  • Automatic Cleaning: boiler heat exchanger
  • Boiler Heat Exchanger: made of certified 6 mm boiler steel
  • Controller: supports 5 pumps and 2 mixing valves as standard
PARAMETERSUNITBOILER MODEL
STALMARK EKO BOX II
Nominal Power[kW]101520
Power Range[kW]3.0 - 10.04.5 - 15.06.0 - 20.0
Heating Surface[m2]1.31.72.3
Heated Area[m2]up to 125up to 185up to 250
Max. Operating Pressure[MPa]0.15
Required Draft[Pa]10-15
Fuel Tank Capacity[I]120140
Water Temperature Supply [min/max][°C]55/90
Minimum Return Water Temperature[°C]55
Boiler Weight[kg]240280310
Water Capacity[I]546481
Minimum Chimney Height[m]5.5
Boiler Efficiency[%]90.492.491.7
Flue Diameter[ø/mm]130160
Supply and Return Diameter (internal thread fittings)[in]1"
Power Supply[V/Hz]230/50
Average Power Consumption[W]203540
Electrical Efficiency Class[-]A+
EKO BOX

Type / Dimension (mm)

A

B

C

D

E

F

G

H

I

J

EKO BOX 10115066010971087110317317566218680
EKO BOX 15130068010971237125317317566218680
EKO BOX 20140066010971332135217320066268680

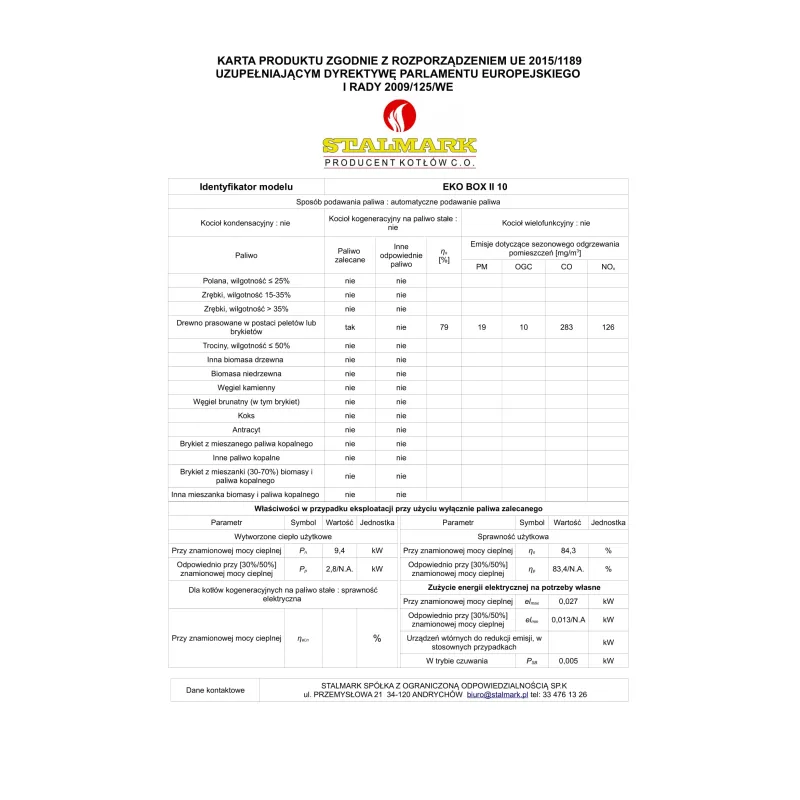

Data sheet

EcoDesignYES
InstallationFloor, Internal
Max. operating pressure [ bar ]1.500
Mains voltage [ V ]230
Fuelpellets
