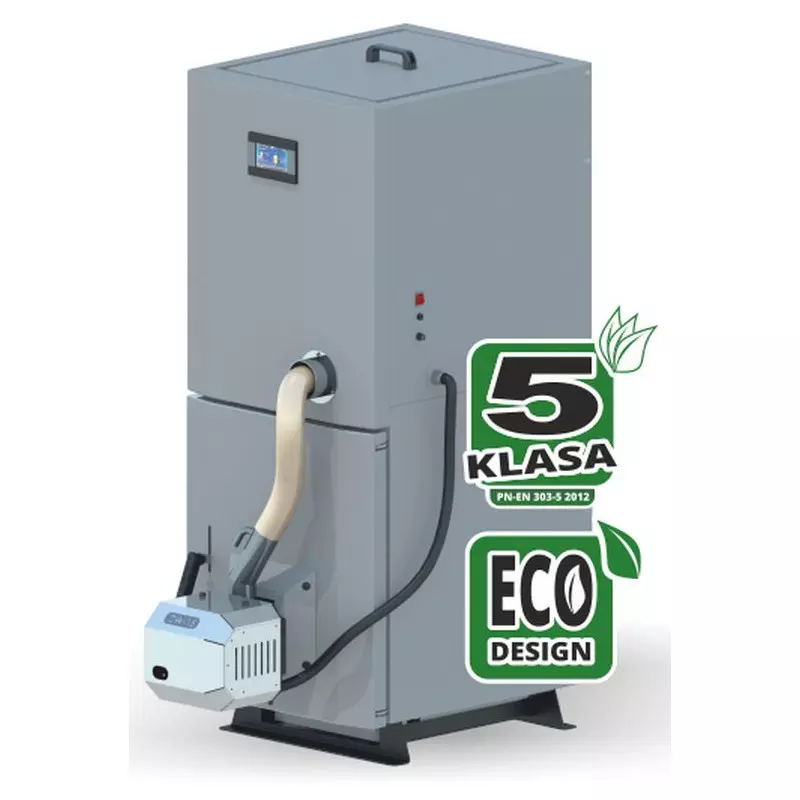

Central heating boiler Metal-Fach SLIM PELLET

The boiler is a device for heating water in central heating systems with automatic feeding of fuel, which is pellets. The boiler has a class 5 according to PN EN 303-5: 2012and the ECODESIGN (ECODESIGN) certificate. The boiler qualifies for a group of devices that participate in programs co-financing the replacement of the old heat source, organized by local governments.

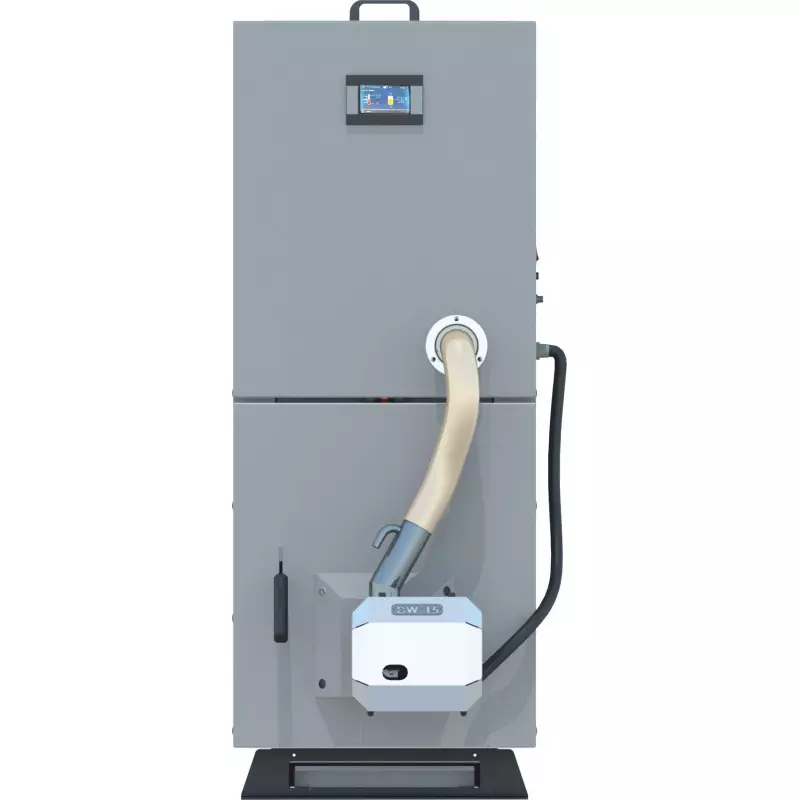

The boiler has a self-cleaning inline burner equipped with a ceramic pellet igniter. The boiler body is made of high quality, attested P265H boiler steel. The construction of the heat exchanger makes the boiler reach high efficiency. In order to protect the user and improve its safety, door limit switches are mounted on the door, which, when the door is opened, interrupt the work of the fan and the fuel feeder. The burner has been equipped with an automatic ash removal system.

In SLIM PELLET boilers equipped with PLATINUM controller, it is possible to connect: Lambda probe , internet module.In addition, you can connect modules: PLATINUM B - allow to install the buffer - PLATINUM C - enabling the control of additional 2 mixing valves, 2 pumps and 2 thermostats. You can connect a touch room thermostat.. PLATINUM TOUCH.

Parameters

Parameters	unit	Boiler model
		SLIM PELLET - 10	SLIM PELLET - 15	SLIM PELLET - 20
Nominal thermal power	[kW]	10	15	20
Boiler power range	[kW]	3-10	4,5-15	6-20
A surface that can be heated	[m2]	120*	120-160*	160-210*
Heating surface	[m2]	1,5	2,1	2,5
Water capacity	[L]	45	65	75
Maximum working pressure	[bar]	3	3	3
Maximum working temperature	[°C]	95	95	95
Test pressure	[bar]	4,5	4,5	4,5
EcoDesign	[-]	+	+	+
Boiler class	[-]	5	5	5
Single fuel load	[L]	130	170	210
Single fuel load	[kg]	78	102	126
Fuel	[-]	pellet Ø6-8	pellet Ø6-8	pellet Ø6-8
Power supply	[-]	~230V; 50Hz	~230V; 50Hz	~230V; 50Hz
Power consumption at boiler nominal power	[W]	115	115	115
Power consumption at boiler start-up	[W]	415	415	415
Temperature controller setting range	[°C]	60-85 (co 1 °C)	60-85 (co 1 °C)	60-85 (co 1 °C)
Required chimney flue	[Pa]	20	23	26
Boiler weight	[kg]	240	290	340

* depending on the degree of insulation of the building

Functions

5 years GUARANTEE

Self-cleaning burner

Automatic igniter to pellet

Fuzzy Logic PID controller

Weather control

Expansion module as an accessory

Dimensions

TYPE	SLIM PELLET – 10	SLIM PELLET – 15	SLIM PELLET – 20
B	590	590	690
C	1550	1550	1550
D	705	920	920
E	1510	1510	1510
E1	865	865	865
F	656	656	656
G	G ¾”	G ¾”	G ¾”
H	G 1 ¼”	G 1 ¼”	G 1 ¼”
I	160	160	160
J	G 1 ¼”	G 1 ¼”	G 1 ¼”
K	200	200	200
L	130	130	130
O	935	1150	1150
P	1310	1525	1525

Data sheet

Power [ kW ]	15
Power [ kW ]	10
Power [ kW ]	10
Power [ kW ]	20
Power [ kW ]	20
Power [ kW ]	15
Weight [ kg ]	290
Weight [ kg ]	240
Weight [ kg ]	240
Weight [ kg ]	340
Weight [ kg ]	340
Weight [ kg ]	290
Width [ mm ]	690
Width [ mm ]	690
Width [ mm ]	590
Width [ mm ]	590
Width [ mm ]	590
Width [ mm ]	590
Depth [ mm ]	1,525
Depth [ mm ]	1,525
Depth [ mm ]	1,310
Depth [ mm ]	1,310
Depth [ mm ]	1,525
Depth [ mm ]	1,525
Feeder capacity [ dm³ ]	210
Feeder capacity [ dm³ ]	170
Feeder capacity [ dm³ ]	130
Feeder capacity [ dm³ ]	170
Feeder capacity [ dm³ ]	130
Feeder capacity [ dm³ ]	210
Water capacity [ L ]	45
Water capacity [ L ]	75
Water capacity [ L ]	65
Water capacity [ L ]	75
Water capacity [ L ]	65
Water capacity [ L ]	45
EcoDesign	YES, pellets
Class	5
Height [ mm ]	1,550
Distance from flooring to exhaust gas pipe base [ mm ]	785
Exhaust gas pipe size [ mm ]	160
Outlet and inlet supply size [ inch ]	⁵⁄₄''
Installation	Vertical, Floor, Internal
Max. working temperature [ °C ]	95
Max. operating pressure [ bar ]	3
Mains voltage [ V ]	230
Fuel	pellets
Warranty	5 years
