Central heating pump group ENBOX MIX 3D PREMIUM WITA - DN25 with actuator ESBE

501 W

432,16 USD

Payment and delivery

Transport Costs: Individual calculation
(After placing your order we will send you a non-binding offer containing delivery costs.)

Payment: Bank transfer

Total Rating Total Rating:

0
0/5 - 0 reviews

View ratings
0 1 2 3 40
0 1 2 3 00
0 1 2 0 10
0 1 0 1 20
0 0 1 2 30

 Add Review View Reviews View Reviews

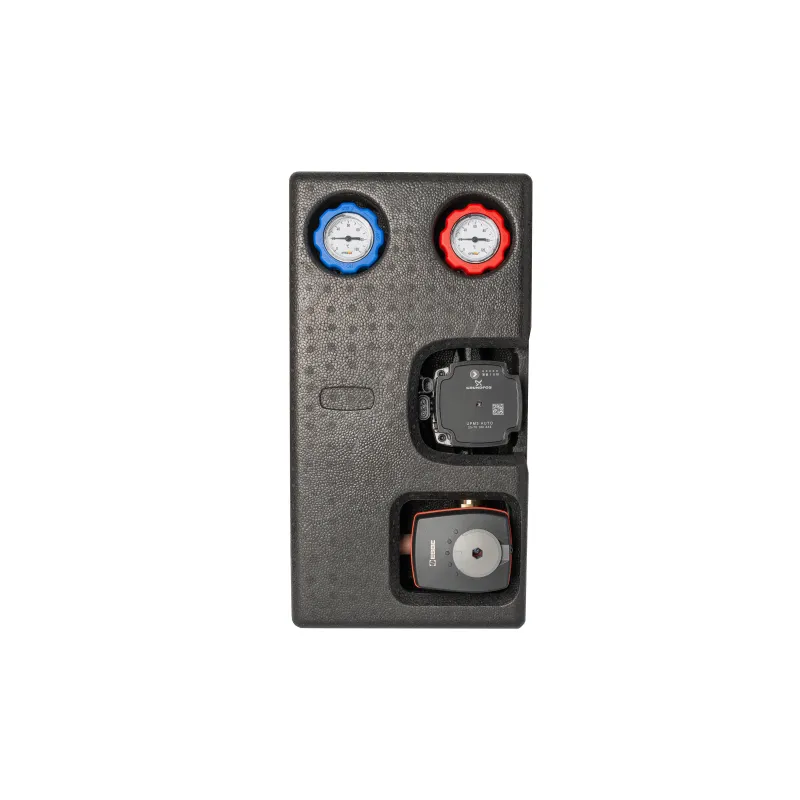

Mix 3D Premium Pump Group is a device designed for heating systems used in both modern and traditional boiler rooms. The assembly is equipped with a modern Wita pump. Its design has been enhanced with a 3-way mixing valve and an ESBE actuator, which ensures optimal operation of the heating system. Thermometers integrated into the ball valves allow for temperature control, and additionally, a check valve is built into the low-temperature side to prevent backflow. The entire pump group is enclosed in thermal insulation made of EPP. The device is intended for installation on both the manifold and the wall.

The pump interface has been designed to be user-friendly and intuitive. It is operated with a single button, and five LED lights indicate the pump's performance level, fault status, or operation mode settings.

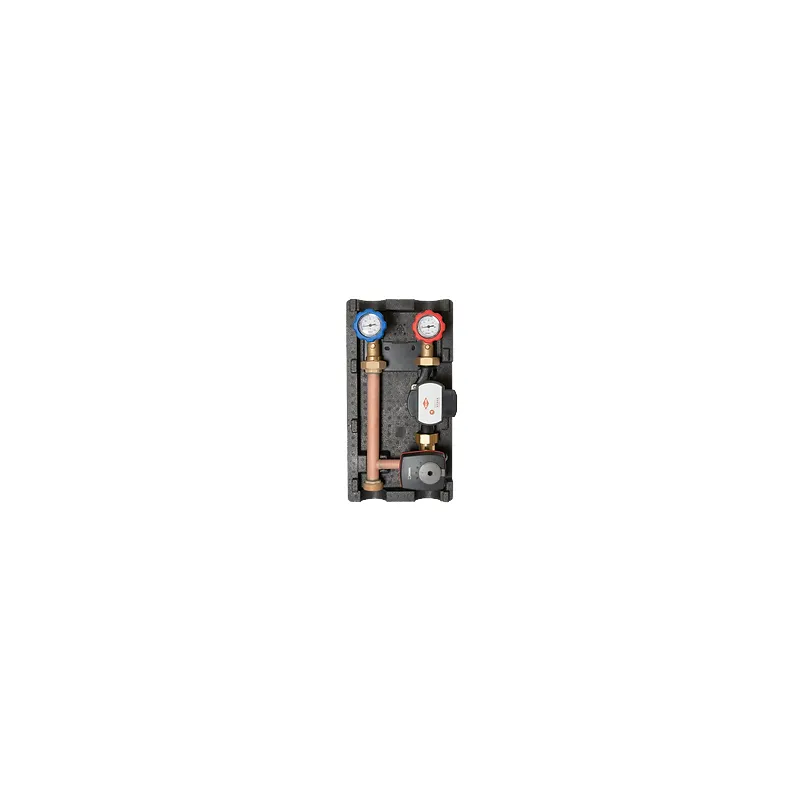

ENBOX MIX PREMIUM 3D
  1. WITA HE OEM4 25-60 180 pump
  2. Ball valve on the high-temperature side
  3. Ball valve on the low-temperature side
  4. Contact thermometer on the low-temperature side 0-120掳C
  5. Contact thermometer on the high-temperature side 0-120掳C
  6. Check valve with manual lock on the low-temperature side
  7. 3-way mixing valve ESBE VRG 132
  8. ESBE ARA 561 actuator
  9. Pipe section on the low-temperature side
ParameterValue
Dimensions470 x 245 x 160
Connections - installation side1" F
Connections - boiler side6/4" F
Maximum operating temperature110掳C
Allowable operating pressure6 bar
Axis spacing125 mm
Sealing materialEPDM, Klingersil
Type of pumpWITA HE OEM4 25-60 180
Pump installation length180 mm
Power supply voltage230V ~50Hz
MediumWater or Water-Glycol
Thermometer scale0-120掳C
Check valve1 pc.




Data sheet

Weight [ kg ]7
Height [ mm ]430
Width [ mm ]300
Depth [ mm ]170
InstallationWall
Max. working temperature [ 掳C ]110
Max. operating pressure [ bar ]6
InsulationPolypropylene foam EPP
Mains voltage [ V ]230
