Boiler Tekla DRACO BIO 12kW-75kW

View larger

Pdf DRACO BIO

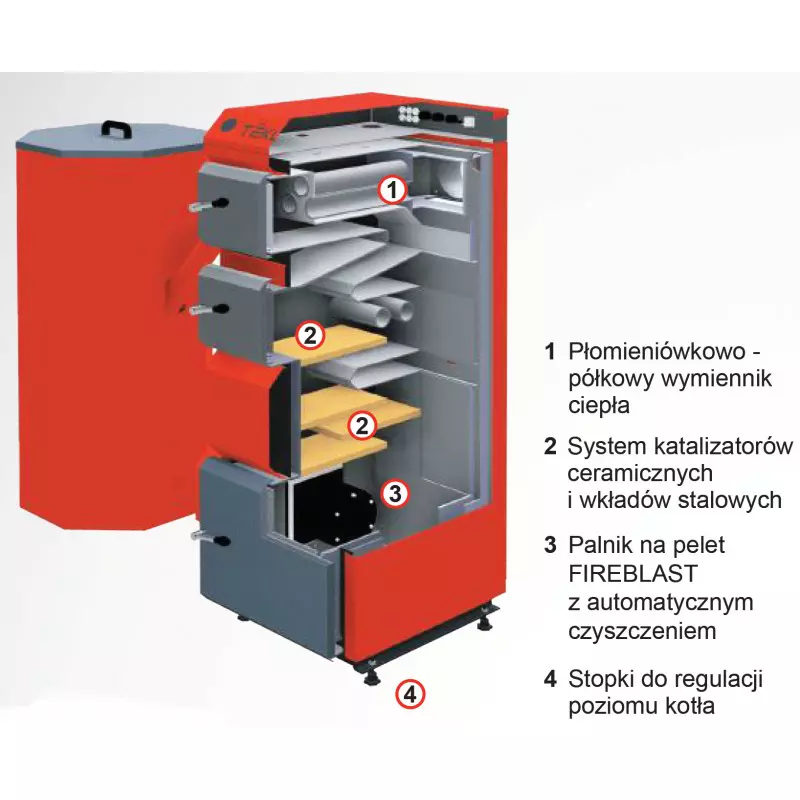

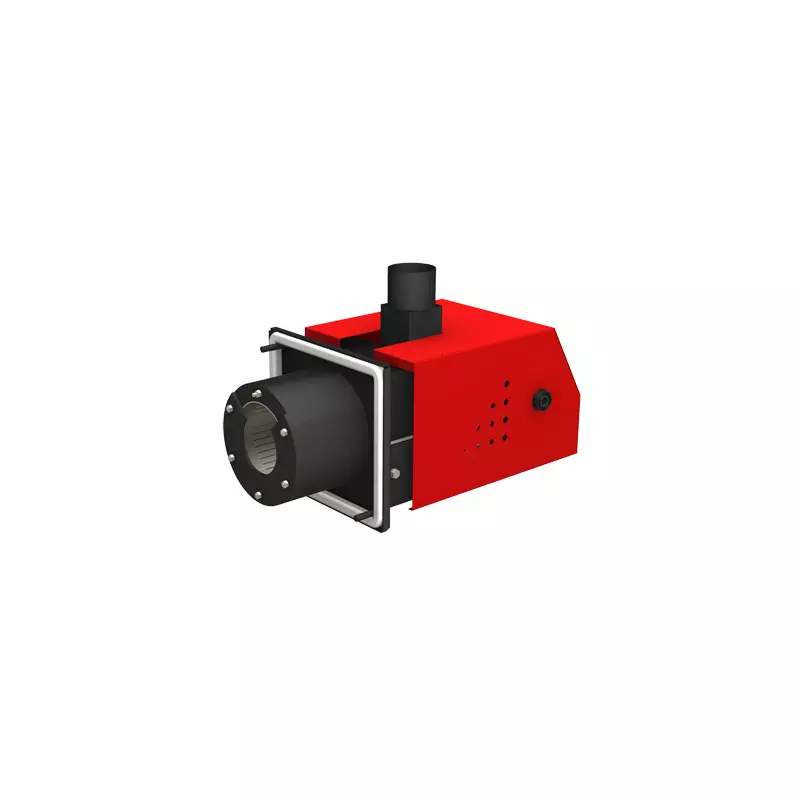

The design of DRACO BIO boiler is based on proven and very effective exchanger. In BIO series boilers, there is a unique burner for pellets installed instead of a retort burner, which is made of heat-resistant steel. The boiler exchanger is made of high quality attested steel 8 mm thick. A proper operation of the boiler is controlled by a modern electronic adjuster with clear LCD display.
The advantages of the boiler:
Boiler exchanger made of high quality steel 8 mm thick
Completely automatic operation of the boiler (automatic ignition and extinguishing of a burner)
Easy and fast operation and maintenance
Return temperature adjustment mode through adjuster control on a four-way valve
Room thermostat option - Economical operation
Low level of harmful substances in exhaust fumes
High efficiency
5-year guarantee for tightness of the exchanger
Fuel pellets

Source of text

Product photos are for informational purposes only.
Presented model of the DRACO BIO 25 boiler

Data sheet

Power [ kW ]	12
Power [ kW ]	35
Power [ kW ]	75
Power [ kW ]	12
Power [ kW ]	35
Power [ kW ]	75
Power [ kW ]	12
Power [ kW ]	35
Power [ kW ]	12
Power [ kW ]	35
Power [ kW ]	12
Power [ kW ]	35
Power [ kW ]	12
Power [ kW ]	35
Power [ kW ]	12
Power [ kW ]	35
Power [ kW ]	75
Power [ kW ]	12
Power [ kW ]	35
Power [ kW ]	75
Efficiency [ % ]	89.2
Efficiency [ % ]	89,8
Efficiency [ % ]	89
Efficiency [ % ]	89.2
Efficiency [ % ]	89,8
Efficiency [ % ]	89
Efficiency [ % ]	89.2
Efficiency [ % ]	89,8
Efficiency [ % ]	89.2
Efficiency [ % ]	89,8
Efficiency [ % ]	89.2
Efficiency [ % ]	89,8
Efficiency [ % ]	89.2
Efficiency [ % ]	89,8
Efficiency [ % ]	89.2
Efficiency [ % ]	89,8
Efficiency [ % ]	89
Efficiency [ % ]	89.2
Efficiency [ % ]	89,8
Efficiency [ % ]	89
EcoDesign	YES, pellets
EcoDesign	YES, pellets
EcoDesign	YES, pellets
EcoDesign	YES, pellets
EcoDesign	YES, pellets
EcoDesign	NO
EcoDesign	YES, pellets
EcoDesign	YES, pellets
EcoDesign	YES, pellets
EcoDesign	YES, pellets
EcoDesign	YES, pellets
EcoDesign	YES, pellets
EcoDesign	YES, pellets
EcoDesign	YES, pellets
EcoDesign	YES, pellets
EcoDesign	YES, pellets
EcoDesign	YES, pellets
EcoDesign	YES, pellets
EcoDesign	YES, pellets
EcoDesign	YES, pellets
Weight [ kg ]	235
Weight [ kg ]	495
Weight [ kg ]	820
Weight [ kg ]	235
Weight [ kg ]	495
Weight [ kg ]	820
Weight [ kg ]	269
Weight [ kg ]	529
Weight [ kg ]	269
Weight [ kg ]	529
Weight [ kg ]	269
Weight [ kg ]	529
Weight [ kg ]	269
Weight [ kg ]	529
Weight [ kg ]	269
Weight [ kg ]	529
Weight [ kg ]	917
Weight [ kg ]	269
Weight [ kg ]	529
Weight [ kg ]	917
Height [ mm ]	1,120
Height [ mm ]	1,545
Height [ mm ]	1,900
Height [ mm ]	1,120
Height [ mm ]	1,545
Height [ mm ]	1,900
Height [ mm ]	1,500
Height [ mm ]	1,545
Height [ mm ]	1,500
Height [ mm ]	1,545
Height [ mm ]	1,500
Height [ mm ]	1,545
Height [ mm ]	1,500
Height [ mm ]	1,545
Height [ mm ]	1,500
Height [ mm ]	1,545
Height [ mm ]	1,900
Height [ mm ]	1,500
Height [ mm ]	1,545
Height [ mm ]	1,900
Width [ mm ]	490
Width [ mm ]	530
Width [ mm ]	770
Width [ mm ]	490
Width [ mm ]	530
Width [ mm ]	2,300
Width [ mm ]	1,550
Width [ mm ]	1,650
Width [ mm ]	1,550
Width [ mm ]	1,650
Width [ mm ]	1,550
Width [ mm ]	1,650
Width [ mm ]	1,550
Width [ mm ]	1,650
Width [ mm ]	1,550
Width [ mm ]	1,650
Width [ mm ]	2,300
Width [ mm ]	1,550
Width [ mm ]	1,650
Width [ mm ]	2,300
Depth [ mm ]	770
Depth [ mm ]	1,020
Depth [ mm ]	1,140
Depth [ mm ]	770
Depth [ mm ]	1,020
Depth [ mm ]	1,140
Depth [ mm ]	770
Depth [ mm ]	1,020
Depth [ mm ]	770
Depth [ mm ]	1,020
Depth [ mm ]	770
Depth [ mm ]	1,020
Depth [ mm ]	770
Depth [ mm ]	1,020
Depth [ mm ]	770
Depth [ mm ]	1,020
Depth [ mm ]	1,140
Depth [ mm ]	770
Depth [ mm ]	1,020
Depth [ mm ]	1,140
Distance from flooring to exhaust gas pipe base [ mm ]	773
Distance from flooring to exhaust gas pipe base [ mm ]	1,210
Distance from flooring to exhaust gas pipe base [ mm ]	1,471
Distance from flooring to exhaust gas pipe base [ mm ]	773
Distance from flooring to exhaust gas pipe base [ mm ]	1,210
Distance from flooring to exhaust gas pipe base [ mm ]	1,610
Distance from flooring to exhaust gas pipe base [ mm ]	765
Distance from flooring to exhaust gas pipe base [ mm ]	1,210
Distance from flooring to exhaust gas pipe base [ mm ]	765
Distance from flooring to exhaust gas pipe base [ mm ]	1,210
Distance from flooring to exhaust gas pipe base [ mm ]	765
Distance from flooring to exhaust gas pipe base [ mm ]	1,210
Distance from flooring to exhaust gas pipe base [ mm ]	765
Distance from flooring to exhaust gas pipe base [ mm ]	1,210
Distance from flooring to exhaust gas pipe base [ mm ]	765
Distance from flooring to exhaust gas pipe base [ mm ]	1,210
Distance from flooring to exhaust gas pipe base [ mm ]	1,450
Distance from flooring to exhaust gas pipe base [ mm ]	765
Distance from flooring to exhaust gas pipe base [ mm ]	1,210
Distance from flooring to exhaust gas pipe base [ mm ]	1,450
Feeder capacity [ dm³ ]	240
Feeder capacity [ dm³ ]	240
Feeder capacity [ dm³ ]	240
Feeder capacity [ dm³ ]	240
Feeder capacity [ dm³ ]	240
Feeder capacity [ dm³ ]	240
Feeder capacity [ dm³ ]	240
Feeder capacity [ dm³ ]	240
Feeder capacity [ dm³ ]	240
Feeder capacity [ dm³ ]	240
Feeder capacity [ dm³ ]	500
Feeder capacity [ dm³ ]	240
Feeder capacity [ dm³ ]	240
Feeder capacity [ dm³ ]	500
Water capacity [ L ]	55
Water capacity [ L ]	155
Water capacity [ L ]	220
Water capacity [ L ]	55
Water capacity [ L ]	155
Water capacity [ L ]	220
Water capacity [ L ]	55
Water capacity [ L ]	155
Water capacity [ L ]	55
Water capacity [ L ]	155
Water capacity [ L ]	55
Water capacity [ L ]	155
Water capacity [ L ]	55
Water capacity [ L ]	155
Water capacity [ L ]	55
Water capacity [ L ]	155
Water capacity [ L ]	220
Water capacity [ L ]	55
Water capacity [ L ]	155
Water capacity [ L ]	220
Outlet and inlet supply size [ inch ]	⁶⁄₄''
Outlet and inlet supply size [ inch ]	2''
Outlet and inlet supply size [ inch ]	2''
Outlet and inlet supply size [ inch ]	⁶⁄₄''
Outlet and inlet supply size [ inch ]	2''
Outlet and inlet supply size [ inch ]	2''
Outlet and inlet supply size [ inch ]	⁶⁄₄''
Outlet and inlet supply size [ inch ]	2''
Outlet and inlet supply size [ inch ]	⁶⁄₄''
Outlet and inlet supply size [ inch ]	2''
Outlet and inlet supply size [ inch ]	⁶⁄₄''
Outlet and inlet supply size [ inch ]	2''
Outlet and inlet supply size [ inch ]	⁶⁄₄''
Outlet and inlet supply size [ inch ]	2''
Outlet and inlet supply size [ inch ]	⁶⁄₄''
Outlet and inlet supply size [ inch ]	2''
Outlet and inlet supply size [ inch ]	2''
Outlet and inlet supply size [ inch ]	⁶⁄₄''
Outlet and inlet supply size [ inch ]	2''
Outlet and inlet supply size [ inch ]	2''
Max. working temperature [ °C ]	90
Max. working temperature [ °C ]	90
Max. working temperature [ °C ]	90
Max. working temperature [ °C ]	90
Max. working temperature [ °C ]	90
Max. working temperature [ °C ]	90
Max. working temperature [ °C ]	90
Max. working temperature [ °C ]	90
Max. working temperature [ °C ]	90
Max. working temperature [ °C ]	90
Max. working temperature [ °C ]	90
Max. working temperature [ °C ]	90
Max. working temperature [ °C ]	90
Max. working temperature [ °C ]	90
Max. working temperature [ °C ]	90
Max. working temperature [ °C ]	90
Max. working temperature [ °C ]	90
Max. working temperature [ °C ]	90
Max. working temperature [ °C ]	90
Max. working temperature [ °C ]	90
Max. operating pressure [ bar ]	1.500
Max. operating pressure [ bar ]	1.500
Max. operating pressure [ bar ]	1.500
Max. operating pressure [ bar ]	1.500
Max. operating pressure [ bar ]	1.500
Max. operating pressure [ bar ]	1.500
Max. operating pressure [ bar ]	1.500
Max. operating pressure [ bar ]	1.500
Max. operating pressure [ bar ]	1.500
Max. operating pressure [ bar ]	1.500
Max. operating pressure [ bar ]	1.500
Max. operating pressure [ bar ]	1.500
Max. operating pressure [ bar ]	1.500
Max. operating pressure [ bar ]	1.500
Max. operating pressure [ bar ]	1.500
Max. operating pressure [ bar ]	1.500
Max. operating pressure [ bar ]	1.500
Max. operating pressure [ bar ]	1.500
Max. operating pressure [ bar ]	1.500
Max. operating pressure [ bar ]	1.500
Class	5
Fuel	pellets
